The current lithium-ion cell line is conventionally modelled as six sequential unit operations — electrode mixing, coating, drying, calendaring, slitting & cutting, and cell assembly (winding or stacking) followed by electrolyte filling, formation, and aging — with most tier-1 gigafactories now operating coating lines at 60–100 m/min and dry-room dew points held at ≤ -40 °C to keep residual moisture in the electrode below 800 ppm [S2].
Vacuum systems sit at two critical points in that flow: slurry de-aeration before coating, and cell dehydration/evacuation before electrolyte injection. Busch and other dry-pump makers explicitly position oil-sealed rotary vane and dry claw pumps as the workhorse for the de-gassing step, where residual bubbles above roughly 100 µm are a direct cause of coating streaks and capacity loss [S2].
Electrode Mixing and Slurry Rheology: Where Viscosity Sets the Line Speed
Electrode mixing combines active material (NMC, LFP, or graphite), conductive carbon, PVDF or CMC/SBR binder, and solvent (NMP for cathodes, water for anodes) into a slurry with solids loading typically 70–80 wt% and Brookfield viscosity targets near 4,000–10,000 mPa·s, the exact window depending on the coating method that follows [S2].
High-solids loading is the dominant cost lever because drying energy scales with the kg of solvent that has to be removed; doubling solids from 50 wt% to 70 wt% typically cuts dryer length by roughly half for a given throughput. Vacuum de-aeration on the mix transfer line is sized to pull the slurry down to a target gas content (commonly < 5 vol%) before it hits the comma bar or slot die [S2].
Coating, Drying and Calendaring: The Three Yield-Critical Stages
Slot-die coating on a moving foil is the line's heartbeat, and current OEM data sheets quote single-side coating speeds of 60–100 m/min for water-based anodes, with double-side simultaneous coating on copper foil (4–6 µm base) and aluminum foil (12–20 µm base) the norm in 2024-vintage tooling [S2].
Drying follows immediately in a multi-zone oven where air temperature profiles step from ~80 °C at the wet end up to 130 °C at the exit, and residence time is set by line speed and oven length.
Cell Assembly: Winding vs Stacking and the Tab-Less Trend
Two assembly architectures coexist: jelly-roll winding for cylindrical and many prismatic cells, and Z-stack or hot-stacking for pouch cells, with tab-less full-edge current collection (the Tesla 4680-style architecture) now appearing in vendor literature as a way to cut internal resistance by an order of magnitude versus conventional tabbed designs [S1].
Not every cell format fits every architecture. Cylindrical 4680 and 21700 cells almost universally use winding because the round mandrel cannot host a flat stack; large prismatic cells and most EV pouches use stacking because area utilization is higher (typically 94–96% versus 90–92% for wound prismatic). Stack-and-fold or wound-stacked hybrids exist for thickness-sensitive form factors [S1].
Formation, Aging and the Hidden Cost of First-Cycle Loss
After electrolyte injection and sealing, every cell goes through formation: a slow first charge that builds the SEI (solid-electrolyte interphase) layer on the anode.
Aging — storage at controlled state-of-charge and temperature for 7–28 days — screens out cells with high self-discharge or micro-shorts before they reach pack assembly. Both formation and aging are highly energy-intensive, which is why a gigafactory's formation floor often costs more in electricity and HVAC than the cell assembly floor above it, and why flow-meter selection for electrolyte dosing and dry-room nitrogen leak detection becomes a procurement item, not a commodity [S2].

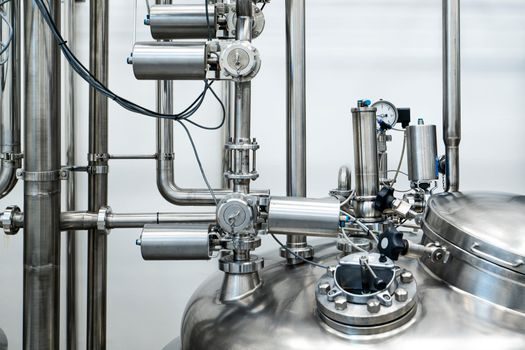

Dry-Room and Vacuum Infrastructure: Where the Real CapEx Sits
Because lithium hexafluorophosphate (LiPF₆) hydrolyses in the presence of moisture above roughly 20 ppm inside the cell, the entire electrolyte-handling and cell-assembly envelope is built as a dry room with dew point ≤ -40 °C (sometimes ≤ -60 °C for high-nickel cathode lines), maintained by desiccant wheels backed by pressure-transmitter arrays that read both room pressure and duct static [S2].
Vacuum pump selection on these lines is dominated by the need for oil-free, hydrocarbon-free exhaust — a single back-streaming event from an oil-sealed pump can poison a batch of electrolyte. Dry claw, dry screw, and multi-stage Roots blowers are the typical answer, sized for chamber evacuation down to 1–10 Pa for the pre-fill dehydration step, and the industrial-valve manifold feeding them is rated for clean-room service with low-particulate elastomers [S2].
Pack Assembly, End-of-Line Test and Automation Levels
End-of-line test typically combines a high-rate formation cycle (charge to 100% SOC, discharge to cutoff, capacity ranking) with an AC internal-resistance measurement at 1 kHz; cells that fail either test are demoted to second-life or recycling streams. Vendor literature positions fully-automated pack lines as the default for U.S. reshoring projects, with cycle-time parity to Asian competitors a stated design goal [S1].
Comparison of the Three Main Cell Form Factors
Form-factor choice is a packaging decision that propagates back into the manufacturing flow. Cylindrical cells (18650, 21700, 4680) dominate in energy-density-per-volume because of the wound jelly-roll and tab-less current collection, but pack-level energy density suffers from the interstitial space between cans. Pouch cells offer the highest cell-level energy density (240–280 Wh/kg in current NMC811) but the lowest mechanical robustness — they swell on cycling and need rigid pack frames. Prismatic cells sit in the middle, easier to stack, easier to cool, but heavier per kWh than pouches [S1].
On a 4-criterion comparison — energy density (Wh/kg), pack-level space utilization, manufacturing cost ($/kWh capex+opex), and safety margin against thermal runaway — pouches lead on Wh/kg but trail on safety margin, while cylinders lead on manufacturing cost and rate capability; prismatic cells are the compromise that most Chinese LFP gigafactories default to. The decision usually turns on which axis the automaker or ESS integrator is most willing to compromise [S1].
Standards, Yields and What Buyers Should Track
No single IEC or ISO standard covers the entire lithium-ion manufacturing flow end-to-end, but a handful of standards govern the boundaries: IEC 62133-2 covers portable cell safety, UN 38.3 governs transport testing, IEC 62619 covers industrial (including ESS) cells, and IATF 16949 sits over the quality-management layer that any automotive-grade cell maker must hold [S3].
For procurement, the two signals worth tracking are: first-pass yield (industry green-field benchmark 88–92% on formation-and-aging output) and dry-room dew-point drift (a sustained rise from -40 °C to -30 °C is the earliest indicator of a desiccant-wheel change-out). Both metrics are upstream of any multifunction-process-calibrator or instrumentation investment a plant engineer might make, and both will move before the cell's published cycle-life data does [S2].
Trackable next node: the next 6 months will see whether the U.S. reshoring wave translates into documented OEE figures on 4680-format lines comparable to Asian incumbents, and whether dry-room energy-recovery heat exchangers move from pilot to standard equipment on new builds [S1][S2].
