Polyamide (PA, commonly called nylon) is the default thermoplastic family for injection-moulded electronics hardware: housings, connectors, cable ties, bobbins, terminal blocks, and snap-fit clips. The 2026 electronics spec still runs almost entirely on two grades, PA6 and PA66, with PA46, PA12 and high-temperature PPA variants used only where the standard pair cannot survive the thermal or chemical envelope [S1][S2].
PA66 carries a higher melting point and tighter moisture ceiling than PA6, which is why 66 dominates under-the-hood automotive, surface-mount connector bodies and bobbin insulation; PA6's wider processing window and better impact resistance keep it in lower-cost housings, fasteners, and wire-tie / cable management parts [S2]. Both grades are hygroscopic, and that single fact, moisture pickup, drives most of the failure modes a process engineer will fight on the line.
What the two grades actually are, and why the amide group matters
Polyamide is the generic name for thermoplastics whose backbone carries the repeating amide group, and the chain is what gives the family its signature combination of strength, wear resistance and dielectric behaviour. PA6 and PA66 are both aliphatic polyamides named by the number of carbon atoms in the monomer repeat, and that naming convention is also the quickest way to understand their behaviour: more regular, more crystalline backbones melt hotter, absorb less water at equilibrium, and creep less under load [S3].
PA6 is homopolymerised from a single 6-carbon monomer (caprolactam), which gives a less symmetric chain and a lower melting point, around 220 °C versus PA66 at roughly 255–265 °C. PA66 is a condensation polymer of hexamethylenediamine and adipic acid, both 6-carbon, hence "6,6", and the more symmetric repeat packs tighter into crystalline domains. The practical consequence for electronics: PA66 holds its dielectric strength (commonly 15–25 kV/mm at 1 mm, dry) and dimensional stiffness closer to a hot solder reflow profile, which is why connector bodies are almost always PA66 or PA66-GF rather than PA6 [S1].
Selection criteria that actually drive the spec
Four numbers do almost all the work when a polyamide is being down-selected for an electronics part: continuous service temperature, flammability rating, dielectric strength, and comparative tracking index. UL94 V-0 at the relevant thickness is the usual flammability gate for consumer and IT equipment; CTI in volts (PLC class per UL 746A) decides whether a grade can hold a given creepage distance in a polluted, humid enclosure; dielectric strength decides thin-wall insulation in coils and bobbins; and continuous service temperature is the hard thermal ceiling, with PA66 typically rated 150–180 °C and PA6 closer to 120–150 °C depending on glass content and conditioning state [S1].
Moisture behaviour is the fifth criterion, even though it is not a spec line. PA6 absorbs roughly 9–10 % water at 50 % RH / 23 °C equilibrium, PA66 around 7–8 %, and glass-filled variants proportionally less; this drives both mould shrinkage (PA6 unfilled near 1.0–1.5 %, PA66 unfilled 1.3–1.8 %, GF grades 0.3–0.7 %) and the post-mould conditioning step many moulders still run for precision connector parts. When the part will see SMT reflow, moisture is also a reliability problem: vapour inside the pellet blister the moulded part, and a dry-out at 80–100 °C before reflow is the cheapest insurance available.

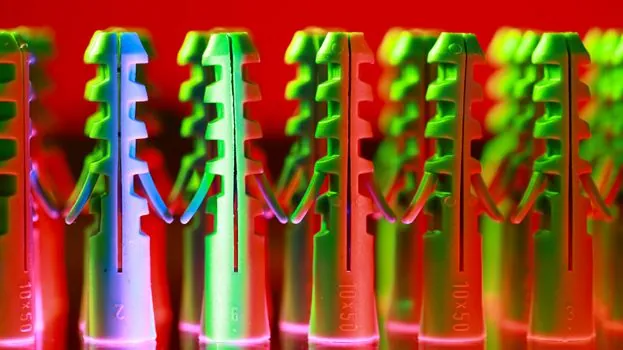

PA6 vs PA66 vs glass-filled: criteria comparison
On the four criteria that matter for electronics, the comparison is fairly stable across 2026 datasheets: PA6 has lower heat deflection (around 60–80 °C at 0.45 MPa unfilled, 200–220 °C with 30 % GF), PA66 is roughly 70–100 °C higher on the same metric; impact strength favours PA6 (notched Izod typically 80–120 J/m unfilled versus 40–80 J/m for PA66); tensile strength and stiffness favour PA66 (around 80 MPa tensile, 2.8 GPa flexural modulus, dry, both rising sharply with glass fibre); and dielectric strength is broadly similar at 15–25 kV/mm dry, falling on moisture pickup [S1][S2].
For a quick decision table on an electronics part, the rule of thumb used by most moulders is: pick PA66-GF30 when the part is a structural connector, a power coil bobbin, or any component sitting inside a reflow or wave-solder thermal envelope; pick PA6-GF15–30 when cost is the dominant driver and the part runs below ~120 °C continuous; pick PA12 or PPA only when PA66 cannot meet CTI, chemical resistance, or a sustained >150 °C service rating, because PA12 is markedly more expensive (the same raw-material cost gap that pushes domestic PA6 yarn below PA66 in the cordage market also shows up in electronics-grade compounds) [S2].
Use cases and who each grade is for
PA66, neat or glass-filled, is the default for connector bodies, terminal blocks, coil bobbins, switchgear parts, and SMT-compatible housings; the higher melting point and lower moisture uptake are the reason it survives lead-free reflow profiles with peak zone temperatures around 245–260 °C without blistering. Glass-filled PA66 (typically 15 %, 25 %, 30 % or 50 % GF) is also the workhorse for structural brackets and fastener bosses inside consumer electronics, and the higher the glass load, the stiffer and more dimensionally stable the part at the cost of impact and mould-flow [S1].
PA6 is for the rest: cable ties, cable glands, wire clips, low-voltage connector shells, fan housings, and any moulded part where impact resistance and melt flow matter more than thermal headroom. Unfilled PA6 is also a workhorse for snap-fit clips and living-hinge style features that PA66 is too dry and brittle to handle without a toughener. A nylon selection primer makes the same point: glass load and moisture conditioning move the part more than the PA6/PA66 choice alone.
For high-temperature electronics, PA46 and PPA (polyphthalamide) are the right families when PA66 cannot hold the thermal envelope, and PA12 is the right family when low moisture pickup, dimensional stability or chemical resistance to hydrocarbons and zinc chloride is the gate. The single largest trap on connector and bracket work is treating "nylon" as one material: on a real datasheet, PA6, PA66, PA46 and PA12 sit on completely different quadrants of the modulus-versus-temp chart and cannot be interchanged without re-qualifying the part.
Limits, failure modes, and what to check at incoming inspection
The two failure modes that show up most often in electronics-grade polyamide parts are blistering at reflow (excess residual moisture) and brittle fracture at snap-fit features (wrong grade, wrong moisture conditioning, or wrong glass content). A third, less obvious mode is creep under sustained clamp load on terminal blocks, which is why PA66 unfilled is rarely used on a screw-clamp connector and PA66-GF30 is the floor. Electrical failure modes track creepage and tracking, not dielectric breakdown, which is the reason the CTI number on the datasheet is more useful than the dielectric-strength number for most power-electronics layouts.
For instrumented parts, a pressure transmitter housing or pressure sensor body in a process plant is the typical end-use that forces the specifier to insist on PA66-GF30 over PA6, because the field temperature and chemical atmosphere quickly expose the cheaper grade.
Standards, sourcing and what to put on the drawing
Two standards do most of the work on an electronics drawing: UL 94 (flammability, with the yellow card the only acceptable evidence) and UL 746A (PLC values for CTI, HAI, HWI, HVTR). For automotive electronics, add the OEM-specific material datasheet requirements on top of the ISO short-term mechanical tests. The 2024/2025 OEM guidance has tightened around specifying glass content, moisture-conditioning state, and post-mould drying rather than just the resin family, which is the cheapest way to drive consistent behaviour across moulders [S1].
On the drawing, the minimum useful call-out is "PA66, 30 % glass-filled, UL94 V-0 at 0.75 mm, all-colours, dry-as-moulded", plus a note that any equivalent must match CTI PLC class and the OEM's yellow-card file number. Anything looser than that gives the molder licence to substitute PA6, and the next reflow run will find the mistake. The same logic is used in adjacent process hardware: a flow meter body in PA12-GF is preferred over PA6 in wet chemical service, just as industrial valve seats in PA66-GF win on temperature but lose on impact, and PLC housings are routinely PA66-GF30 for the same reason connector bodies are.
What changed in the last six months and what to watch next
Through 2025 and into 2026, the dominant signal on electronics-grade polyamide has been the tightening of OEM incoming-inspection rules around moisture content and yellow-card evidence, not a change in the underlying PA6/PA66 chemistry. Glass-filled PA66 has continued to grow share in EV connector and power-electronics housings, while PA6 has held its position in cable management and lower-cost consumer enclosures, with the raw-material price gap between the two grades staying wide enough to keep PA6 the default where the thermal envelope allows it [S2].
Trackable signals to watch next: any new PA66 or PPA datasheets that push continuous service temperature past 180 °C for power-electronics bobbins, IEC 60695 tracking-test data being added to OEM datasheets alongside UL 94, and the first wave of post-consumer-recycled (PCR) PA66 grades entering UL yellow-card files for IT and consumer electronics. The underlying message for the engineer is the same as it has been for several specification cycles: do not specify "nylon", specify the grade, the glass content, the UL file, and the conditioning state, and the part will survive both the reflow oven and the field.
