Prefabricated construction rejects generic "best coating" calls because modular joints, factory-cured substrates, and tight return-to-service windows each impose a different chemistry-versus-substrate decision, and a 1.0–2.5 mm polyurethane liquid-applied membrane with 400–800% elongation-at-break is now the default spec for joint-tolerant prefab envelopes [S3].
Five gates govern the choice: substrate profile, hydrostatic exposure, movement tolerance, chemistry family, and certification scope, and the order of elimination is the order in which a specifier should reject a candidate [S2]. For prefab modules, where the concrete or steel substrate is factory-cured to a controlled moisture profile, the first three gates carry more weight than the last two, since factory QA removes much of the field-substrate uncertainty that drives negative-side failures on cast-in-place builds.
Substrate Profile on Prefab Modules: Factory-Cured Concrete vs Light-Gauge Steel
Factory-cured precast concrete panels arrive at the joint with a saturated-surface-dry (SSD) moisture window that matches cement-based osmotic crystalline waterproofing materials, which use water as the carrier and react with the concrete pore structure to form insoluble crystals that block water pathways [S2]. On the steel reinforcement and steel-faced sandwich panels common in modular bathroom pods and container-type modules, that cementitious chemistry cannot bond directly, and an anti-corrosion primer plus a compatible liquid-applied membrane becomes the standard layered build-up, with hydrostatic head and chloride exposure dictating whether a polyurethane or a bituminous top layer is specified [S2]. For timber and lightweight panel infill used in volumetric prefab, elongation-at-break becomes the dominant gate: cementitious systems with low elongation crack over a moving timber deck, while liquid-applied polyurethane with documented elongation above 300% accommodates seasonal movement without splitting [S2].
Substrate moisture content at the time of factory application is the second hard gate: most cement-based osmotic systems require an SSD condition, while solvent-borne bituminous primers tolerate damp substrates but reject standing water, a constraint that fits a controlled factory environment better than an open site [S2]. Prefab shops running heated, dehumidified lay-down areas can hold SSD conditions within tight tolerances, which is one reason the polymer-modified cementitious tier is gaining share in modular wet-room pods over pure rigid slurries.
Movement and Joint Detailing on Modular Interfaces
Crack-bridging ability is the most quantitative spec line on a waterproof coating datasheet, expressed as elongation-at-break and crack-bridging width in millimetres at a defined film thickness, and prefab joint design concentrates that requirement at the module-to-module and module-to-foundation interfaces where ±5–10 mm seasonal movement is normal [S2]. Polymer-modified cementitious composites blended with 5–20% acrylic, SBR, or redispersible-powder polymer bridge micro-cracks up to ~0.5 mm and bond to substrates that rigid slurries cannot, including brick, block, and existing tile screeds, which makes them the typical floor specification under tile in prefab wet rooms, balconies, and planter boxes [S3].
Polyurethane liquid-applied membranes at 1.0–2.5 mm wet film in 2–3 coats deliver typical elongation at break of 400–800% and tensile strength of 1.5–5.0 MPa, and they dominate exposed roof, balcony, and podium-deck specifications because they tolerate pedestrian traffic and UV exposure once top-coated [S3]. Where prefab modules must be craned, stacked, and commissioned on a tight site programme, polyurea spray coatings applied at 2–4 mm with gel times under 30 seconds and elongation above 300% are the faster-return-to-service option, used on secondary-containment bunds, swimming pools, and tunnel linings where the cost premium is offset by the schedule gain [S3]. Field QA on these films uses a coating thickness gauge to verify wet-film build, and a wet-sponge or high-voltage DC holiday detector at 100 V per 25 µm per ASTM D5162 / D5162M practice where the film is over metal substrates.
Hydrostatic Head and Positive-Side Service in Prefab Tanks and Basements
Positive-side waterproofing, applied to the face that receives water pressure (tank interiors, basement walls against earth, swimming pools), is the more demanding application and is where cement-based osmotic crystalline materials dominate because the active chemistry is driven by water contact into the concrete capillary pore structure [S2]. For prefab potable-water tanks and modular utility vaults, this chemistry matches the factory-controlled substrate, and the published maximum head rating of most polyurethane liquid-applied membranes falls between 10 m and 30 m of positive pressure at their standard applied film thickness, which is the typical envelope for below-grade prefab service [S2].
Negative-side waterproofing on prefab basement modules, where water presses against the back of the coating from saturated fill, requires systems engineered to resist back-pressure, typically epoxy-modified cementitious slurries or reactive polyurethane injection, and an osmotic crystalline coating is generally specified for positive-side service only [S2]. Below-grade construction in civil and resource-sector projects routinely specifies systems to 10 m head and above, with detailing at construction joints and pipe penetrations treated as separate wet-film-thickness targets rather than a single overall DFT call-out, a discipline that translates directly into prefab module-to-module and module-to-foundation joints [S2].
Chemistry Comparison: Cementitious, Polyurethane, Polyurea, Acrylic on Prefab Criteria
On a side-by-side criteria basis for prefab, the four reactive families rank as follows. Rigid cementitious slurries at 1.5–3.0 mm DFT sit at the lowest cost and the lowest elongation, suit positive-side tanks and shower pre-slopes where movement is minimal, and are vapour-permeable so they do not stop moisture vapour transmission, which disqualifies them as negative-side barriers above ~0.5 bar without a complementary membrane [S3]. Polymer-modified cementitious composites at the same DFT range add the 5–20% polymer phase that bridges micro-cracks up to ~0.5 mm and bonds to brick, block, and existing tile screeds, which is why they are the typical floor specification under tile in prefab wet rooms, balconies, and planter boxes [S3].
Polyurethane liquid-applied membranes at 1.0–2.5 mm DFT and 400–800% elongation are the balanced default for prefab envelopes exposed to UV and pedestrian traffic once top-coated [S3]. Polyurea spray at 2–4 mm with gel times under 30 seconds and elongation above 300% is the fast-return option for secondary-containment bunds, swimming pools, and tunnel linings where the schedule gain outweighs the cost premium [S3]. Acrylic water-based coatings at 200–400% elongation, UV-stable but not trafficable, sit at the low-cost end and remain common on exposed concrete roofs in residential and light-commercial prefab builds [S3]. Across all four families, a thicker industrial coating build-up is the single biggest lever for moving a system from a 10 m to a 30 m positive-head rating, and a waterproof coating selected on movement rather than brand is the single biggest lever for cutting prefab joint-call-back rates.
Certification Scope: Potable Water, Fire Grade, and Root Resistance on Prefab

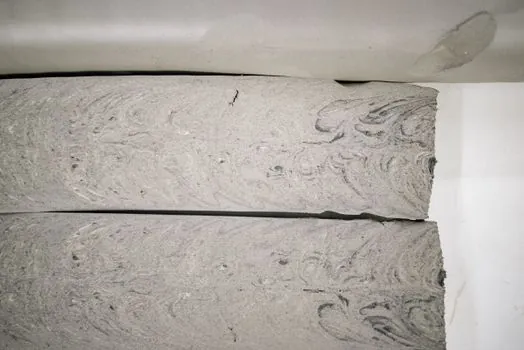

Certification scope is the final gate and frequently decides between two technically equivalent coatings, with potable-water approval (typically to national drinking-water contact standards) being the hard filter for prefab cistern modules, modular utility vaults, and bathroom pods that ship as sealed wet-rooms [S2]. Fire grade and root resistance apply to green-roof and podium-deck prefab modules, and a non-exposed building waterproofing material codification, JC/T 2428-2017 effective 2018-04-01, covers non-curable rubber-modified asphalt waterproofing coating as a viscous paste of rubber, asphalt, and softener oil with a temperature-control agent and fillers, dedicated to non-exposed building waterproofing and movement-joint detailing [S3].
For prefab modules that will be craned, stacked, or shipped, low-VOC and water-based systems reduce transport classification hazards and factory extraction load, which is one reason acrylic water-based roof coatings and water-based polyurethane dispersions are growing in modular-housing factories even where the in-service chemistry would otherwise favour a solvent-borne system. A thermal waterproofing approach that pairs a PU or polyurea top layer with a factory-bonded insulation board is also moving into prefab roof cassettes, since the joint detailing can be factory-applied under controlled conditions and only the module-to-module seam is field-welded or liquid-applied on site.
Selection Path and Trackable Signals for Specifiers
For a specifier mapping a prefab module, the working sequence is: confirm substrate and factory moisture window, set the hydrostatic head target in metres, set the elongation target at the joint in percent and crack-bridging width in millimetres at a defined film thickness, pick the chemistry family, then apply the certification filter for potable-water, fire, or root-resistance scope [S2]. Acrylic, PU, polyurea, and polymer-modified cementitious will all pass the first two gates for many prefab wet-room pods; the joint movement number and the certification filter usually pick the final system, and the same five-gate logic is the spine of the broader data center waterproofing coating and general building-facade spec paths.
Trackable signals worth watching through the rest of 2026: published elongation-after-thermal-ageing data on prefab-joint PU systems, since most datasheets quote room-temperature values and not the 28-day at 70 °C figures that modular roof cassettes actually see; and the uptake of factory-applied polyurea at 2–4 mm DFT in modular bathroom pods, where the under-30-second gel time is the lever that compresses factory cycle time. Adjacent process-engineering reads, for example the VSD selection for food processing spec gate or the control cable sizing map, share the same five-gate discipline and confirm the broader shift from brand-based to spec-gate-based selection across industrial B2B procurement in 2026.
