A VFD specified for a food processing line must satisfy three independent constraints at once: the load profile (variable torque pump/fan versus constant torque conveyor/mixer), the motor class (inverter-duty random-wound versus standard), and the washdown ingress rating, with IP66 or higher typical for zones exposed to high-pressure cleaning [S3][S5].
Specifying on motor nameplate horsepower alone is the single most common error, per the Malloy Electric VFD selection guide published 2026-05-18; the correct sizing input is motor full load current plus the application overload requirement, evaluated against a duty cycle that includes sanitation start/stop events [S1].
Load profile determines drive topology and sizing margin
Constant torque loads (conveyors, positive displacement pumps, mixers, screw compressors) require a drive rated for 100% torque at zero speed, with sensorless or closed-loop vector control to hold speed under load transients [S1][S4]. A drive right for a centrifugal pump is the wrong drive for a positive displacement compressor, and the variable speed drive selection must be made after the duty class is fixed, not before.
For conveyors on packaging lines, the operating point rarely sits at base speed; matching motor speed to actual product flow rate through a VFD is the lever that yields the largest kWh reduction, and it also reduces belt and bearing wear by replacing hard starts with controlled acceleration ramps of typically 3 to 10 seconds [S3][S5].
Motor class and inverter duty rating
IE4 and IE5 premium efficiency motors are increasingly specified for new food plant builds because they convert more electrical input to shaft output and run cooler, which extends winding life in sealed or washdown enclosures [S3]. A standard general purpose motor applied to a VFD without output filtering suffers two failure mechanisms: reflected-wave overvoltage at the motor terminals (peak line-to-line voltage can approach twice the DC bus voltage on long cable runs) and electrical discharge machining of the bearings from common-mode shaft currents [S1].
For a 460 V AC system the DC bus sits around 650 V DC, and PWM switching frequencies typically span 2 to 16 kHz; the higher end gives smoother motor current and quieter operation at the cost of additional IGBT switching losses and heat [S4]. Inverter-duty motors with random-wound windings rated to NEMA MG1 Part 31, or the equivalent IEC 60034-25, are the minimum for any VFD-driven motor on a food line, and sine-wave output filters or dV/dt filters are commonly added when cable runs exceed roughly 15 metres between the drive and motor [S1][S4].

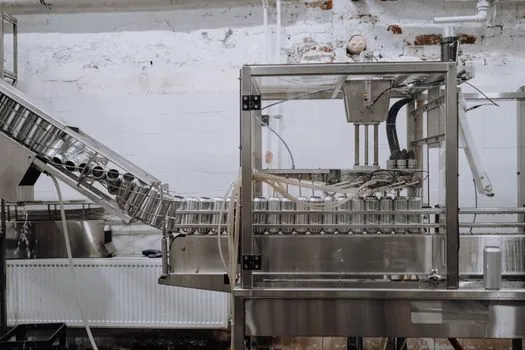

Washdown, hygiene, and the IP rating ladder
Food processing zones exposed to high-pressure hot-water cleaning demand a drive enclosure rating that matches the zone, and IP66 or IP69K is common on drum-motor and conveyor-integrated packages from vendors such as Interroll, whose Drum Motor integrates motor, gearbox, and bearings inside a sealed stainless drive shell rated to IP69K [S5]. An externally mounted VFD in a washdown zone still requires a sealed enclosure, often stainless steel, with cable glanding rated to the same IP code as the motor it feeds.
Ingress rating alone does not make a drive food-grade; the enclosure material, surface finish, and the ability to drain cleaning water matter equally, and the surrounding conveyor structure should be designed so that a drum-style or sealed motor reduces externally mounted drive components and the cleaning labour around them [S5]. For a comparison of VFD form factors on food lines, the table below summarises the practical trade-offs:
Wall-mounted enclosed VFD on conveyor gearbox: lowest unit cost, but the most exposed components and the longest cleaning time per sanitation cycle. Drum motor with integrated VFD or external sealed inverter: highest ingress rating at IP69K, fastest cleaning, and the fewest external surfaces, but a more limited speed and torque envelope than a separate motor and gearbox [S5].
Soft starter versus VFD on food lines
Soft starters belong on fixed-speed loads where the only requirement is reduced starting current and mechanical shock, such as large refrigeration compressor motors, while VFDs belong on any load where speed, flow, or pressure must track process demand across a continuous range [S3]. On a dairy processing pump that does not need to run at maximum capacity constantly, a VFD holds the flow rate at the required setpoint and trims energy use, whereas a soft starter would leave the pump at full speed with a throttling valve doing the same job less efficiently [S3].
Where process demand is essentially binary (run or stop) and the motor is large enough that direct-on-line starting trips protection, a soft starter is the cheaper and more reliable solution, and a servo drive is reserved for the packaging and labelling axes where dynamic positioning accuracy is the requirement rather than continuous-flow energy control [S1].
Harmonics, braking, and electrical integration
Unmitigated 6-pulse diode rectifiers inject current harmonics back onto the plant bus, and at sufficient loading can push total harmonic distortion beyond IEEE 519 limits at the point of common coupling, with consequences for other equipment on the same feeder [S1][S4]. The standard mitigation menu is 12-pulse rectifiers, passive or active line filters, and active front-end drives, in rising order of cost and harmonic performance; food plants with large single drives above roughly 75 kW typically use 12-pulse or AFE topologies to stay inside utility power-quality contracts [S1][S4].
Regenerative braking is a separate specification: when a conveyor or mixer decelerates a high-inertia load, the motor acts as a generator and pushes current back into the DC bus, which is normally absorbed by a braking resistor sized to roughly 125% of peak regenerative power; for a slewing drive or large mixer with frequent fast stops, a four-quadrant active front-end drive feeds that energy back to the line instead of dissipating it as heat [S1][S4].
Specifications to fix before ordering
A spec engineer should freeze five items before the drive is ordered: motor full load current at the design supply voltage, the load duty class (variable torque, constant torque, or constant horsepower), the maximum cable run between drive and motor, the required enclosure and ingress rating for the installed location, and the harmonic limit at the point of common coupling as defined by IEEE 519 or local utility rules [S1][S4][S5]. Cross-referencing a similar decision gate for harsh industrial sites, the VSD selection for mining guide applies the same five-item checklist with hazardous-area certification swapped in for washdown ingress.
Field-tracked signals to watch over the next planning cycle: 12-pulse and active front-end drive pricing on sub-100 kW ratings, which is the band where most food line conveyors and pumps sit, and the availability of IP69K inverter-duty motors in IE5 efficiency classes, which would let a single vendor supply a fully sealed washdown drive package from the busbar to the conveyor pulley [S1][S5].
