Safety relays in 2026 are specified as dual-channel modules that monitor an input device, cross-check the two channels, and drop outputs to a known-safe state when a discrepancy or internal fault appears, an architecture that traces back to Pilz's PNOZ emergency-stop relay patented in 1987 [S1].
The global industrial safety relay market is valued at US$1.7 B in 2026 and is on track to reach US$2.8 B by 2033 at a 7.3% CAGR, with Asia Pacific accounting for 39.1% of 2026 share and electromechanical technology holding 41.9% on the back of force-guided contact reliability [S3]. Inside that envelope, emergency-stop relays alone are forecast to take 32.3% of 2026 demand [S3], confirming that the e-stop function is still the single most common reason buyers pull a safety relay into a bill of materials.
Definition and scope: what a safety relay is, and what it is not
A safety relay is a fault-monitoring module wired between a safety input device (e-stop, interlock switch, light curtain, safety mat) and the machine's actuator or contactor chain; it is not a general-purpose control relay and it is not a stand-alone safety system, since it must be integrated into a control and safety circuit inside the machine [S1].
Constructionally, safety relays share the electromagnet-and-armature principle of conventional relays but diverge in three ways: they use force-guided (positively driven) contacts, they rely on electronic monitoring of those contacts, and they must remain safe when correctly wired even if a sensor, actuator, or internal component faults [S5]. That last point is the load-bearing one for specifiers, because European Machinery Directive 2006/42/EC requires that no one be put at risk if a relay contact sticks or if a transistor or two conductors short-circuit [S5], and the relay's internal redundancy is what demonstrates compliance.
How a safety relay actually works: dual channels, cross-check, and forced outputs
Dual-channel inputs are the defining behavioural feature of most modern safety relays, and the relay continuously compares the two input signals so that a single stuck contact or broken wire cannot pass unnoticed [S1].
When the two channels agree and the internal self-test passes, the output contacts (or solid-state outputs) energise the downstream contactors; when a fault appears, the relay de-energises those outputs within the response time defined by its PL or SIL rating. Single-function devices cover one safety function, while multi-function units replace several single-function modules and tend to reduce wiring complexity in larger panels [S5]. Outputs of one safety relay can also be daisy-chained into the inputs of another, which is a common technique for expanding the safe I/O count without moving to a full safety controller [S1].

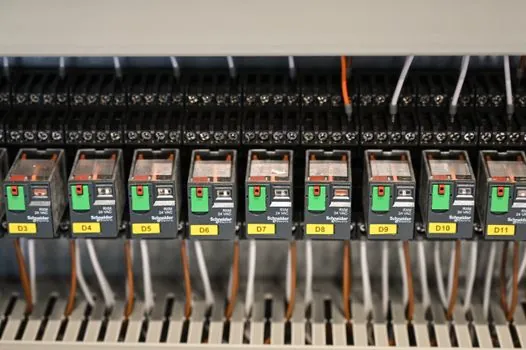

PL and SIL: the two safety performance metrics buyers must set first
Performance Level (PL a through PL e) under ISO 13849-1 and Safety Integrity Level (SIL 1 through SIL 3) under IEC 61508 are the two metrics the relay must hit, and the project decides them during the risk assessment, not during parts selection [S1][S4].
ISO 13849-1 derives the achieved PL from four parameters: Category, MTTFd (mean time to dangerous failure per channel), DCavg (diagnostic coverage), and CCF (common-cause failure), all of which the relay datasheet must quantify [S1]. Buyers should refuse any safety relay datasheet that does not publish a stated PL and a stated SIL together with the Category, MTTFd, and DC values; a numeric PL without those supporting parameters is not a usable spec, because the same headline PL can be reached by very different combinations of diagnostics and channel architecture. Coverage of the standard itself, including the meaning of these parameters, is laid out in the machine safety reference page.
Selection workflow: risk assessment first, relay last
The four-step sequence used in the Dadisick guide is: run a formal risk assessment, derive the required safety functions, pick the relay architecture that satisfies each function, and only then validate the installation against the standards [S4].
The Tosunlux SIL/PL guide repeats the same logic and adds a manufacturer-qualification step: confirm that the vendor's relay carries a third-party PL/SIL certificate traceable to ISO 13849-1 and IEC 61508, not a self-declared rating [S6]. This order matters because starting at the relay catalogue and working backwards tends to under-spec the diagnostics, which then forces a re-design of the safety function and wastes a panel build cycle. The sister topic of fire safety system design follows an identical risk-first flow for the same compliance reasons.
Comparison of the three main safety relay architectures
Three architectures dominate 2026 buying decisions, and they line up against the criteria a spec-driven buyer actually uses: single-function vs multi-function, electromechanical vs solid-state, and stand-alone relay vs safety controller. [S5]
Single-function safety relays (one safety function per module, electromechanical with force-guided contacts) are the lowest-cost option for small machines with a single e-stop or guard, typically priced below multi-function units and supported by the broadest set of third-party PL/SIL certificates [S5]. Multi-function safety relays consolidate several safety functions into one configurable module, which lowers wiring cost and panel space but pushes the per-unit price up; the trade-off breaks even somewhere between three and five independent safety functions on the same machine [S5]. Electromechanical safety relays with force-guided contacts held 41.9% of 2026 revenue on the strength of proven reliability and the inherent diagnostic value of mechanically linked contacts [S3], while solid-state safety relays win on switching speed, silent operation, and longer mechanical life, but historically struggled for the same SIL/PL headroom on high-current outputs. For a fuller discussion of the electromechanical vs solid-state trade and where each fits in a safeguarding chain, the safety relay reference page collects the architectural options. The deep dive on safety barrier design also touches on how solid-state outputs interact with downstream contactors in mixed relay/contactor chains.
Who a safety relay is for, and who should skip it
Safety relays are the right tool for machines with one to roughly eight safety functions, where each function has a clearly defined sensor and a clearly defined actuator, and where the wiring is point-to-point inside a control panel [S1][S5].
Buyers should skip stand-alone safety relays and move to a safety PLC or safety controller when the cell has many distributed e-stops, multiple safety zones that need minimal-zone control, or logic that changes between operating modes, because reprogrammable safety controllers handle that logic more cleanly than a daisy-chain of single-function relays [S1][S5]. The linear guide and crossed-roller guide reference pages make the same point in motion terms: a single-component solution is rarely the best answer once the application has more than one or two operating modes. Industrial cells built around a cobot spec and selection playbook for 2026 manufacturing cells typically fall in the latter category, since collaborative robots add mode-switching and power-and-force-limiting logic that a stand-alone safety relay cannot model on its own.

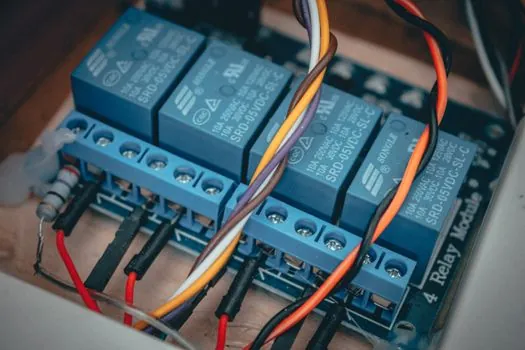

Standards, wiring practices, and the diagnostic signals to demand
The standards a 2026 safety relay must demonstrably meet are ISO 13849-1 (PL and the Category/MTTFd/DC/CCF structure), IEC 61508 (the underlying SIL methodology), IEC 62061 (SIL for machinery), and, on the wiring side, IEC 60204-1 for emergency-stop circuits [S1][S4][S5].
OSSD (output signal switching device) behaviour is now an expected diagnostic feature rather than an upgrade, and the December 2025 update to the Ferndale guide explicitly added clarity on OSSD signal handling and on cross-fault detection between the two input channels [S1]. Force-guided contact monitoring remains the diagnostic backbone of electromechanical designs [S5], while solid-state designs substitute continuous internal self-test cycles. Buyers should also confirm the relay's response time, its terminal layout (pluggable vs screw), and whether the device supports daisy-chaining of additional units, since those three parameters decide panel layout more than the headline PL figure [S1].
Vendor landscape in 2026: the names that show up most often
The 2026 relay manufacturer roundup places Pilz, Omron, ABB, Siemens, Eaton, Phoenix Contact, Rockwell Automation, Schneider Electric, SICK, and IDEC at the top of the buy-side shortlist, with Pilz still recognised as the originator of the PNOZ safety relay and therefore the default benchmark for new PL e designs [S1][S2].
Outside the top ten, specialist suppliers such as DADISICK (safety light curtains and matching safety relays since 2006) and regional SIL/PL-focused vendors listed in the Tosunlux guide compete on price, lead time, and pre-certified bundles for specific function blocks [S2][S4][S6]. Geya notes that the list is not a ranking by size but by 2026 buyer-relevance, so a spec-first shop should still run its own PL/SIL and Category check before locking a vendor [S2]. Choosing a vendor is also a question of which safety functions the relay must cover; the deeper procurement question of evaluating automation component OEMs at a system level is treated in the Industrial Code Reader Suppliers and Manufacturers: 2026 Selection Map analysis.
Limitations, failure modes, and the questions that catch out a weak datasheet
Safety relays have a defined electrical life, and force-guided contacts wear with each safe-stop cycle; datasheets quote B10 or B10d values, but the system designer has to convert B10d into MTTFd, and that conversion is the step most often skipped in panel builds [S1].
Cross-faults between the two input channels are a second failure mode that a single-channel wiring defeats: running both inputs through the same cable, the same connector, or the same terminal block removes the redundancy that the dual-channel architecture is supposed to deliver [S1]. A third silent failure is the use of safety relays outside their certified environment, for example specifying a 24 V DC relay on a 230 V AC contactor coil without an interposing relay, which is outside the certified operating conditions and voids the PL/SIL claim [S4][S6].
For buyers sourcing adjacent safeguarding hardware in parallel, the Industrial LiDAR sensor selection: 2026 spec-driven buyer's map covers the optical perimeter devices that increasingly sit upstream of the safety relay input.
