Slewing drives are integrated worm- or epicyclic-gear units that combine a slewing ring bearing, a reduction gearbox, and often a DC or AC drive motor in a single sealed housing, and the first spec number to lock down is the rated output torque — typically spanning 1 kNm for small solar trackers and signage platforms, 5–40 kNm for mid-size utility and construction equipment, and 100–350+ kNm for offshore cranes, stacker-reclaimers and port handling [S1].
Because a slewing drive is both a gearbox and a structural pivot, you do not size it on torque alone: axial load Fa, radial load Fr, and especially the overturning moment Mt on the mounting flange usually govern the bearing race and the bolt circle, and they are the numbers that fail a unit in the field long before the gear teeth do.
Four Spec Bands That Drive the Selection
Rated output torque is the headline number — common commercial bands are ~1 kNm (light solar and signage), 3–7.5 kNm (small hydraulic booms, aerial work platforms, automatic gates), 8–40 kNm (excavator turrets, truck cranes, robotic welding positioners), and 60–350 kNm (offshore cranes, port cranes, large slewing platforms) [S1].
Mounting load trio is what the bolted flange has to react: axial Fa typically runs 50–400 kN, radial Fr roughly 30–250 kN, and overturning moment Mt commonly 10–200 kNm in the mid-range — you should always apply a service factor of 1.25–1.5 on top of these calculated duty loads for cyclic, shock-loaded, or reversing applications.
Output speed and ratio band comes from the drive's gear reduction: standard single-stage worm ratios on commercial units sit in the 30:1 to 120:1 range, with epicyclic planetary options on heavier units going 60:1 to 360:1, giving output speeds that normally sit between ~0.5 and 5 rpm on motor-driven applications.
Backlash class is a separate purchase line: standard worm units run 0.1°–0.5° backlash (≈3.6–18 arc-min), precision worm units 0.05°–0.15° (≈3–9 arc-min), and double-enveloping worm or planetary alternatives 0.02°–0.1° (≈1.2–6 arc-min) — pick this against the application's pointing or tracking accuracy, not against torque.
Worm vs Planetary vs Helical: Who It Is For and Who It Is Not
Worm-gear slewing drives are the workhorse of the industry and are the right call when you need built-in self-locking (a backdriving torque ratio commonly above 1.5:1 on the input shaft), low cost, compact envelope, and a wide torque band from 1 to 350 kNm — they are not the right call if your machine needs sub-arc-minute pointing, very high continuous rotational speed, or efficiency above ~90% on the gear mesh [S1].
Helical and dual-axis (tilt + rotate) variants are a sub-family for tracker and radar mounts where the application is a known envelope of slow, low-cycle rotation; for single-axis heavy industrial work the standard worm or planetary unit is the default spec, and other reducer topologies such as helical gear reducers cover the in-line drivetrain rather than the slew pivot itself.
Self-Locking, Enclosure and Backstop Logic
Straight-tooth (spur) worm slewing drives self-lock when the friction angle of the worm mesh exceeds the lead angle — in practice that is the engineering reason a stopped unit holds its load without an external brake, provided the gear set is undamaged and lubricated [S1].
For self-locking to be guaranteed on a single-tooth worm slewing drive, the lead angle typically sits below the friction angle of the steel-on-bronze (or steel-on-PA) mesh — a design detail that becomes a selection hard rule on lifting and tilt applications where the load cannot be allowed to back-drive under gravity.
If your application reverses direction frequently, has a high cycle count, or runs in wet, dusty, or hot environments, plan for IP65 minimum on the housing, IP67 for washdown or marine service, and grease lubrication with re-grease nipples — most commercial units ship with IP54, so the upgrade is a line item, not a default.
Motor and Drive Integration
Worm and planetary slewing drives are sold both as bare units and as motorized packages; a 12 V or 24 V DC permanent-magnet motor is the typical fit for solar trackers and small platforms, while 380/400 V AC three-phase motors in the 0.37–7.5 kW range are the standard fit on industrial slewing platforms [S1].
For inverter duty on motorized units, the drive's starting torque — not its rated torque — is what trips a standard V/Hz drive; the variable-speed drive sizing logic used elsewhere on the line applies here as well, with derate for high-inertia loads and shock-loaded starting.
Always check that the motor mount and the limit-switch / encoder housing match the IP rating of the gear housing — a common field failure is water ingress through the encoder cover on a drive that is otherwise rated to IP65, and the warranty response is "out of scope" more often than the engineer expects.
Use Cases by Industry and Matched Spec
Single-axis solar trackers and small signage platforms: 1–5 kNm worm units, 12/24 V DC, IP65, backlash in the 0.1°–0.3° class — these are commodity buys where price-per-kNm and lead time dominate. [S1]
Construction, forestry and material-handling machines (skid-steer loader turrets, mini-excavator cabs, log grapples, mobile work platforms): 3–15 kNm worm units, 24 V DC or AC motor, IP65–IP67, optional self-locking — a slightly higher Mt capacity matters more than low backlash here.

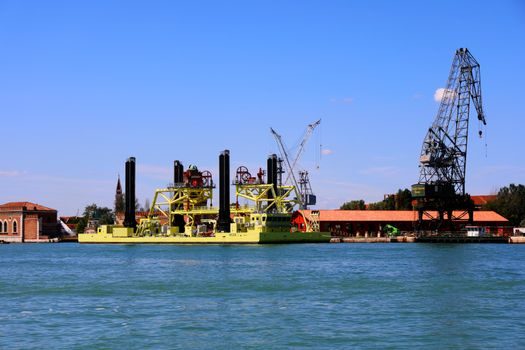

Truck-mounted and crawler cranes, port and offshore cranes, large slewing platforms: 50–350 kNm planetary or dual-worm units, 380/400 V AC drive, IP66–IP67, sub-arc-minute backlash not required but high Mt capacity is — these are engineered units, not catalog parts, and the supplier's fatigue data and welding-procedure qualification on the ring gear decide the buy.
Selection Criteria in a Side-by-Side Comparison
[S2]
If you spec a worm unit, the catalog line carries a 0.1°–0.5° backlash window, a self-locking friction-angle check, IP54–IP67, and torque from 1 to 350 kNm; a planetary line carries 0.02°–0.1° backlash, an external holding brake, IP65, and torque from 5 to 600 kNm; a helical line is application-specific and rarely quoted on torque alone.
Limits, Failure Modes and Standards Footprint
The most common field failure on a slewing drive is the input worm shaft seal, not the ring gear — at IP54 with no re-grease schedule, the seal hardens and lets wash water or grit in, then the worm wheel bronzes wear in a non-reversible pattern. [S3]
The second most common is bolt-circle fatigue: if the service factor on Mt is set at 1.0 on a reversing application, the bolt circle cracks in the 1×10⁵ to 5×10⁵ cycle range — the visible signal is paint cracking around the bolts long before the bolts themselves shear.
Relevant reference frameworks include ISO 6336 for load capacity of cylindrical and worm gears and AGMA 2004 for gear rating, with structural verification often carried out to AWS D1.1 weld-procedure and FEA-of-bolt-circle discipline; for sour-service and offshore service NACE MR0175 / ISO 15156 material limits apply to the ring gear and fastener steel.
Sourcing, Lead Time and Engineering Records
Catalog worm slewing drives in the 1–15 kNm band are typically stocked, with 2–6 week lead time from the major Chinese export hubs; engineered planetary or dual-worm units in the 50–350 kNm band are made-to-order with 8–16 week lead time and a documented QA package (MT, UT, dimensional report, load test) — request that package before placing the PO, not on delivery. [S1]
Always request the manufacturer's load test report for the specific ratio and bore pattern you are ordering, and confirm whether the holding-torque and self-locking numbers were measured at the housing temperature that matches your worst-case ambient — a 20 °C lab number does not predict a 60 °C in-service value [S1].
For an at-a-glance refresher on the bearing subassembly that the drive is built around, the slewing ring bearing encyclopedia page is the right reference; the slewing drive and slewing ring bearing entries cover the integrated unit's spec language, and the servo drive entry covers the motor-side amplifier when the slew is on a closed-loop position duty.
Trackable next signals for any in-flight 2026 selection: confirm the supplier's revised IP-test certificate (most have rolled from IP54 to IP65 as the new default in the 2024–2026 window), and request the latest two-year MTTF and field-failure data set before locking the BOM for the next platform release.
