A slewing ring bearing in a food processing line must combine a 200-5000mm diameter range with stainless or coated rings, food-grade H1 lubricant, and IP66 or higher sealing to survive daily washdown [S2]. Selection is driven by four mechanical loads acting simultaneously (axial, radial, tilting moment) plus the regulatory and sanitary constraints of the line, not by catalogue diameter alone [S3].
For most conveyors, fillers, and rotary tanks on a hygienic line, a four-point contact ball or crossed-roller slewing ring bearing delivers adequate combined load capacity in a single compact unit, replacing stacked ball bearing arrangements with one hygienic assembly [S1][S3].
Load, Rotation, and Geometry: Picking the Bearing Type
Slewing rings carry axial, radial, and overturning moment loads in one raceway, which is why one unit can replace a multi-bearing stack on a rotating filling head or indexing table [S1]. Three structural families dominate the food-grade catalog: four-point contact ball, crossed roller, and three-row roller; the first two cover the majority of processing-line diameters, while the three-row design is reserved for heavier mixers and stacker-reclaimer style equipment [S5].
Selection starts with the actual operating envelope: load data, rotation speed, and environment, then a capacity calculation with a safety margin applied to the dominant load direction [S2]. For low-speed indexing under 10 rpm with a moderate moment, a four-point contact ball design is the standard economical pick. For higher stiffness, lower friction, and better running accuracy on a labelling or bottle-orientation turret, a crossed-roller slewing drive configuration is the typical upgrade, with both inner and outer rings supplied as hardened, ground sections.
Crossed-roller slewing rings in the standard 08 series are commonly supplied without gear teeth and with lamellar seals on both sides, a geometry that suits clean-room hygienic builds where exposed gearing would be a contamination source [S6]. Standard catalogue diameters for hygienic lines typically start near 200mm for small indexing turrets and extend up to roughly 5000mm for full-diameter rotary tables, with internal-gear, external-gear, and gearless options available across that span [S2].
Stainless Steel, Coatings, and FDA-Compliant Materials
Stainless rings (typically 304 or 316 grade) and corrosion-resistant alloys are the default for any bearing that sees washdown, caustic cleaning, or fruit-acid exposure on a food line [S2]. Where full stainless is over-specified, the lower-cost route is a standard carbon-steel ring with a food-safe coating or plated finish on the exposed surfaces, paired with stainless fasteners and grease nipples to keep the contact zone clean.
Non-magnetic stainless and full ceramic rolling elements are reserved for specialty hygienic cells, MRI-adjacent medical-food inspection, or applications where metallic particulate contamination must be eliminated; these are stocked as engineered variants rather than catalogue standards [S2]. Plastic and polymer-cage options exist for low-load sanitary service, but they trade temperature ceiling and load capacity, so they are normally confined to light indexing duties below roughly 50-80 degrees C ambient [S5].
For full material traceability, buyers should request an FDA-compliance statement covering all wetted components (rings, seals, rolling elements, lubricant) and an EU Regulation 1935/2004 declaration if the line ships into Europe. Both the bearing and the lubricant must be on the same compliance chain, since a stainless ring running on a non-food grease still fails an audit.

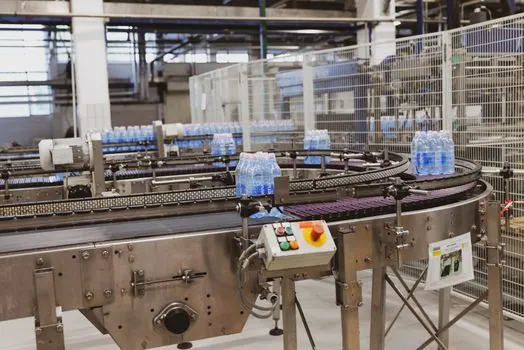

Food-Grade Lubricants and Lubrication Intervals
Food-grade greases registered to NSF H1 (incidental food contact) are the baseline lubricant for any slewing ring on a processing line, with aluminium-complex and polyurea thickeners being the common choices for wet and high-temperature zones respectively [S4]. Lithium-complex H1 grease covers general-purpose washdown service, while synthetic H1 grades extend the operating window at both temperature extremes [S4].
A baseline re-lubrication interval of roughly every 100 operating hours is the rule of thumb for slewing rings in normal service; in washdown or high-speed indexing, the interval should be shortened to every 40-60 hours, and the grease nipple count on the ring (typically 2-8, depending on diameter) must all be pumped in rotation to distribute lubricant evenly [S4]. The procedure is to fill until grease purges from the seal lips, then rotate the ring several full turns to seat the lubricant across the full raceway, and finally wipe all excess to prevent dust and product debris adhesion [S4].
Mixing grease chemistries is a common audit failure: an H1 polyurea relubricated over an H1 lithium-complex base will drop consistency and leak past the seals, so a lubricant log (date, product, quantity) is part of the documented maintenance, not optional paperwork [S4]. For lines that run 24/7 with CIP (clean-in-place) cycles between product runs, the lubricant film is also a corrosion barrier, and starving the raceway accelerates both pitting and false brinelling on the unloaded zone.
Sealing Strategy: IP65, IP66, and Lamellar vs. Cassette Seals
Food-line slewing rings need at minimum IP65 protection against water jets, and IP66 or IP67 for direct high-pressure washdown or steam cleaning, with the seal material itself rated for the cleaning chemistry in use (typically EPDM or FKM for caustic and acid cleaners) [S2]. A typical hygienic configuration pairs nitrile or FKM lip seals with an additional lamellar (multi-stage) seal on both sides of the ring, which keeps product splash and cleaning solution out of the raceway while retaining grease [S6].
Cassette-style seals with an integrated grease reservoir extend the re-lube interval and are worth specifying on rings above roughly 1000mm diameter where downtime cost is high. For crossed-roller rings in the 08 series, the standard factory build is lamellar seals both sides, no gear, which is the cleanest starting point for a hygienic rebuild [S6]. Any seal upgrade must keep the o-ring compounds compatible with the food-grade grease; a fluorocarbon o-ring on a silicate-thickened grease can swell and fail within weeks.
Seal inspection is part of the documented maintenance cycle: visible cracking, swelling, or hardening of the seal lip, or any grease escape past the seal, is a flag for immediate replacement before water ingress initiates subsurface corrosion on the raceway [S4].
Decision Map: Which Slewing Ring Type Fits Which Food-Line Application
For a bottle-orientation turret running 20-60 rpm with light moment load and frequent washdown, a four-point contact ball slewing ring in 316 stainless with H1 grease and IP66 lamellar seals is the standard economical spec. For a labelling or filling carousel needing higher stiffness and better rotational accuracy, a crossed-roller slewing bearing in the same material/seal package raises precision at a modest cost premium. For a large rotary cooking or mixing table above 2000mm diameter with heavy product load and elevated moment, a three-row roller design in stainless with food-grade grease and cassette seals is the heavy-duty option, accepting higher cost and torque for the load capacity [S5].
For a CIP skid, conveyor turntable, or pallet indexer with no product contact and minimal washdown, a standard carbon-steel ring with a food-safe coating and H1 grease is usually the right cost-engineered pick, and the buyer can hold a coated retaining ring spare on the shelf for the lockbolt side. The decision tree collapses to four questions: load magnitude and direction, rotation speed and accuracy, washdown chemistry and frequency, and compliance documentation chain. Each of those has a default spec; the exceptions drive the upgrade.
Common Failure Modes and Audit Findings on Hygienic Lines
The three most frequent failure modes on food-line slewing rings are seal-driven water ingress causing raceway corrosion, grease incompatibility (mixing thickener chemistries or using non-H1 product in an H1 line), and false brinelling on the unloaded zone during slow oscillation in CIP cycles [S4]. All three are detectable during routine visual inspection if the maintenance schedule is being honoured, and all three become catastrophic (raceway spalling, ring replacement) once they pass the visual threshold.
Bolt-looseness on the mounting flange is the fourth common finding, especially on stainless rings where galvanic differences with carbon-steel support structures can drive bolt preload loss; torque checks should be on the same maintenance schedule as lubrication, not treated as a separate annual task [S4]. Buyers who hold a documented lubrication log, a seal-replacement spare kit, and a torque-check chart on the line typically see 2-3x the catalogue service life on the same bearing, because the wear modes are addressed before they propagate.
Specifying a slewing ring for a food processing line is therefore a documentation problem as much as a mechanical problem: the bearing, the lubricant, the seals, the fasteners, and the maintenance schedule all need to align on the same compliance and chemistry chain, or the line will fail its next audit even if the rotation feels fine. Trackable signals for the next planning cycle include NSF H1 lubricant lot traceability, seal compound compatibility charts, and a torque-verification stamp on the mounting flange log.
