Solenoid valves close in roughly 5-50 milliseconds because the moving element is the armature itself, driven directly by magnetic force on a pilot orifice or main poppet [S2]. Diaphragm valves close in 0.1-1 second on most process duty because the elastomeric diaphragm only moves once a pressure differential has built across it, and that differential must overcome the diaphragm's elastic restoring force plus any spring bias [S3].
The 10x to 100x gap is not a marketing number; it is a function of two different physical principles — electromagnetic actuation against a spring or fluid pilot, versus pressure-balanced flexure of an elastomer. Engineers selecting between the two should size the speed budget against the process need rather than the catalog headline.
Two operating principles, two response regimes
A direct-acting solenoid valve uses coil current to pull a ferromagnetic plunger or armature against a spring; pull-in times of 5-15 ms and drop-out times of 5-20 ms are common on small 1/4" and 1/2" pneumatic models such as the NITRA AVS-5312-120A 5-port 120 VAC unit [S1]. Pilot-operated solenoids add a small pilot orifice that lets line pressure amplify the magnetic force, with response still in the 10-50 ms band because the pilot stage is the rate-limiter [S2].
A diaphragm valve — and its hybrid cousin, the diaphragm-actuated solenoid valve — isolates the fluid behind a flexible elastomeric or PTFE membrane. Closing requires the actuator side pressure to exceed the process side pressure by the diaphragm's effective area times its elastic return force, which is why even small 1/2" diaphragm-type solenoid valves typically spec 100-300 ms response and larger weir-diaphragm process valves stretch to 0.5-1 s [S3].
Decision criteria — when speed forces a pick
Use a solenoid valve when the duty cycle demands more than 5-10 cycles per minute, when a safety interlock must close in under 100 ms, or when the actuator is a downstream air solenoid valve feeding a pneumatic cylinder that itself needs 50-200 ms to stroke. Mindman's 2-way MUSD series, for example, lists a 116 psi (0.8 MPa) operating range sized for machine-tool pneumatic logic where millisecond response matters more than chemical resistance [S6].
Use a diaphragm valve when the fluid carries particulates, when the media is a slurry or viscous polymer, when full-bore zero-leakage shutoff is mandatory, or when the coil on a solenoid would burn out from continuous energization. Diaphragm-type solenoid valves retain the electromagnetic pilot but add a flexible membrane to handle mildly dirty water, low-pressure steam, and aggressive chemicals that would score a solenoid's metal seat [S3].
Side-by-side comparison on the four criteria that matter
Response time: solenoid 5-50 ms; diaphragm 100-1000 ms. Pressure ceiling: general-purpose pneumatic solenoids like AVS-5312-120A sit around 150 psi; diaphragm process valves span vacuum to 150 psi in plastic bodies and up to 250 psi in metal-weir units [S1][S3]. Fluid compatibility: a solenoid's wetted seal (NBR, FKM, EPDM) sees the full flow; a diaphragm's only wetted elastomer is the membrane, so PTFE and EPDM-faced diaphragms tolerate acids, bleach and solvents that would attack a solenoid's solenoid coil area and armature bore [S2][S3].
Leakage class: a soft-seated solenoid at 1/4"-1/2" typically meets Class VI (bubble-tight); a diaphragm valve with a PTFE diaphragm meets Class VI across 1/2"-6" line sizes and is the default for pharmaceutical and water-treatment isolation [S3]. Power draw: a continuous-duty solenoid draws 5-15 W on 120 VAC/24 VDC and needs a thermal duty cycle rating; a diaphragm-actuated solenoid is often latched or uses a momentary pulse to shift a pilot, with hold-power around 1-3 W [S2].
Application fit by industry
For OEM machine builders, the variable-speed drive and PLC-controlled pneumatic logic chain almost always ends in a 5-port, 2-position solenoid like the NITRA AVS-5312-120A because the 120 VAC coil ties directly to US control-panel output and the spring return guarantees fail-safe on power loss [S1]. Parker-family solenoid ranges cover hydraulic, pneumatic, instrumentation, medical, refrigeration and aerospace solenoids, with response engineered to the millisecond for aerospace fuel and pneumatic systems [S2].
For process isolation in water treatment, chemical dosing, and pharmaceutical skids, diaphragm-type solenoid valves dominate because the elastomer is the only wetted part. Manufacturers in this segment list diaphragm solenoid valves with NBR, EPDM, FKM, or PTFE diaphragms matched to media chemistry, with response in the 100-300 ms band that suits on/off isolation rather than high-cycle logic [S3]. Heavy-equipment and vehicle applications — diesel fuel shutoff, hydraulic pilot, aftertreatment air control — use compact 12/24 VDC solenoid valves engineered for vibration and thermal cycling rather than millisecond response [S5].

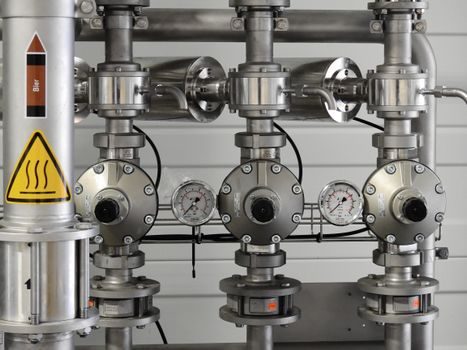

Limits, failure modes, and the engineering traps
Solenoid failure modes are dominated by coil burn-out from continuous energization beyond the rated duty cycle, foreign matter scoring the seat, and water-hammer in liquid service. Installing a slow-closing diaphragm pump or a quick-exhaust valve upstream of a fast solenoid reduces slam; a slow-closing solenoid alone does not solve water hammer if the system has high pressure and long run [S2].
Diaphragm failure modes are dominated by diaphragm fatigue (cycle life typically 500k-2M cycles depending on elastomer and stroke), cold-flow of PTFE at elevated temperature, and chemical attack on the chosen elastomer. Specifying a PTFE diaphragm above 180 °C is a known trap; specifying EPDM against petroleum oil is another. The hybrid diaphragm-solenoid adds one more failure surface — the pilot orifice — so filtration of 50 µm or better is standard advice for water service and 25 µm for pharmaceutical WFI [S3].
Sourcing, standards, and what to verify
Confirm three things before ordering. First, the response-time number in the catalog — direct-acting 5-port pneumatic solenoids like the AVS-5312-120A are rated on energize/release at rated pressure, not at zero flow, so derate by 20-30% for realistic piping [S1]. Second, the wet-material compatibility chart against the actual media, not the generic "water/oil/air" row [S3]. Third, the duty cycle — 100% ED (continuous) versus 50% ED — because a continuous-duty coil on a 50% ED rating will fail within hours [S2].
For a related spec-driven decision map on pump calibration intervals and dry-run risk, see Diaphragm vs Inline Pipeline Pump: Calibration Interval Decision Map. For high-cycle pneumatic logic chains, the same NITRA series also gates air solenoid valve manifolds used with rodless and ISO cylinders listed in the same catalog family [S1].
