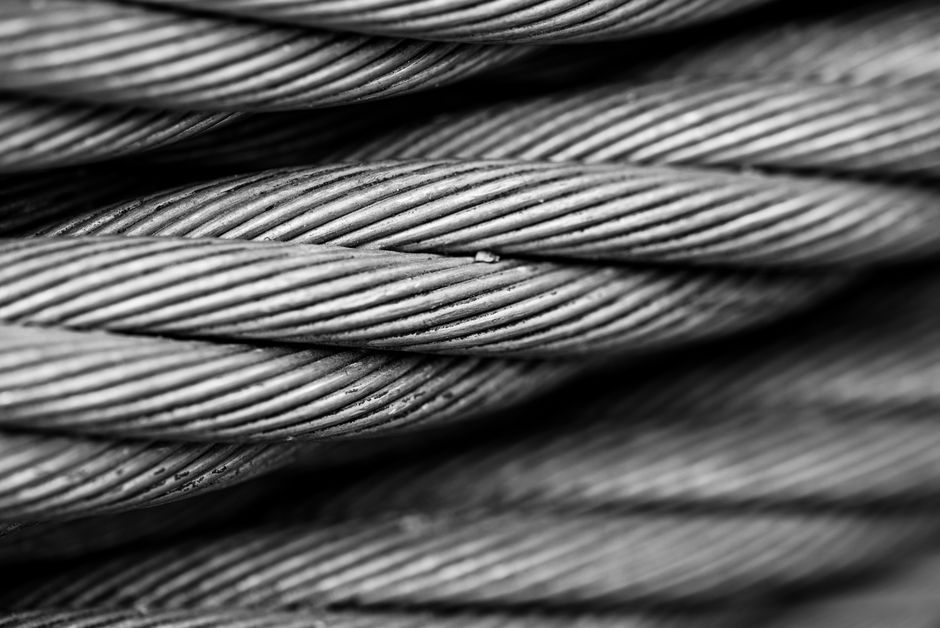

Steel strand is a helically laid assembly of cold-drawn high-carbon wires, and 7-wire constructions (6+1) dominate roughly nine out of ten post-tensioning and ground-anchor bids, with 19-wire (1+6+12) and compacted variants reserved for very long tendons, stay cables and heavy ground anchors [S1][S3].
The first decision is structural role: prestressing strand for concrete (post-tension tendons, pretension beams, hollow-core planks), galvanized steel strand for guy wires, messenger spans and ACSR core (ASTM A475 / A363 territory), and unbonded strand for slab-on-grade post-tensioning where sheathing and grease replace grout. Each role pins a different ASTM grade, a different minimum breaking load, and a different corrosion budget.
Diameter, Area and Minimum Breaking Load Reference
Common prestressing diameters 9.53 mm (3/8"), 11.11 mm (7/16"), 12.70 mm (1/2"), 15.24 mm (0.6") and 17.78 mm (0.7") each carry a defined minimum breaking load that depends on grade — Grade 270 (1860 MPa) and Grade 250 (1725 MPa) being the workhorses, with Grade 300 available for high-demand post-tensioning [S1]. A 15.24 mm Grade 270 7-wire strand must break at no less than 260.7 kN (58,600 lbf) per ASTM A416, and 12.70 mm Grade 270 at 183.7 kN (41,300 lbf) — those numbers, not nominal area, are what engineers should plug into tendon schedules.
Galvanized strand used for overhead conductors and guy wires is sized on ASTM A475 common-strength tables: 1/4" (6.35 mm) 7-wire Class A or B at ~9.3 kN minimum breaking, 5/16" (7.94 mm) at ~14.0 kN, 3/8" (9.53 mm) at ~20.0 kN, with Class C and Class D coatings available where corrosion exposure is severe [S2]. For ACSR core, ASTM B498/A363 zinc-5% aluminum-mischmetal coated wire gives the same mechanical envelope with a tighter coating weight spec.
ASTM A416 vs A722 vs A475: Picking the Right Standard
ASTM A416 governs uncoated stress-relieved and low-relaxation 7-wire prestressing strand in two grades: 250 (1725 MPa) and 270 (1860 MPa). It is the default citation in almost every pretensioned precast beam, post-tensioned slab and bridge tendon in North America, and it underpins the prestressing strand category on every supplier's price list [S1].
ASTM A722 covers high-strength prestressing bars (and strand variants) at Grade 150 (1035 MPa) and Grade 160 (1100 MPa) — the heavy end of the scale, specified for rock anchors, dam tendons and ground anchors where 7-wire strand is not stiff enough to push through long, curved ducts [S1]. For a clean comparison, A722 bars are smooth-threaded and re-stressable, while A416 strand uses wedges and chucks.
ASTM A475 covers galvanized steel wire strand for guys, messengers and suspension cables on overhead lines — a different mechanical envelope (Common, Siemens-Martin, High-Strength, Extra-High-Strength classes) and a Class A/B/C/D zinc-coating weight ladder. Picking A475 strand for a post-tensioning slab is a spec error; picking A416 strand for a transmission-line guy is also a spec error, because the corrosion path and the load table are different [S2].
7-Wire vs 19-Wire vs Compacted Strand
7-wire strand (six outer wires helically laid around a single straight king wire) is the volume product. It is the cheapest per kilo, the best-stocked in 9.53 / 12.70 / 15.24 mm, and the only geometry most hardware (anchors, chucks, wedges) fits without adapters [S1].
19-wire strand (1+6+12) and compacted 7-wire strand target long-span stay cables, cable-stayed bridges and external post-tensioning where larger effective steel area per tendon is needed. A 15.7 mm 19-wire Grade 1860 strand can replace a heavier 7-wire bundle on a 1:1 area basis, with reduced tendon count and shorter stressing time, at the cost of higher unit price and longer lead time on anchors and wedges [S3].
For ground anchors and rock bolts in civil and mining work, 15.2 mm and 17.8 mm 7-wire strand remain the practical default because the drilling, grouting and stressing hardware is interchangeable. Switch to 19-wire or compacted geometry only when tendon count, duct diameter or fatigue is the binding constraint, not as a default "stronger is better" upgrade.
Corrosion Protection: Bonded, Unbonded, Galvanized, Epoxy-Coated
Bonded (grouted) strand is the standard for bridge post-tensioning, precast pretensioning and ground anchors: a PVC or HDPE duct is stressed, then cement grout is injected, encapsulating the strand in a high-pH alkaline environment that passivates the steel [S1][S3].
Unbonded strand (also called monostrand) replaces the duct-and-grout system with factory-applied grease and an extruded HDPE sheath, with anchorages at each end. Each tendon is individually stressed, so it suits slab-on-grade, parking decks and post-tensioned mats where future de-stressing or replacement is desirable. The trade-off is no grout bond, so corrosion control rides entirely on sheath integrity, grease coverage and end-cap sealing.
Galvanized strand (ASTM A475 Class A/B/C/D or A603 for bridge strand) is the right answer for overhead guys, ACSR core and stay cables where grout is not present and the strand is exposed to weather. Epoxy-coated strand (ASTM A882) is specified for aggressive chloride exposure, typically bridge decks and marine piers, and is normally used as a complement to grouted ducts rather than a standalone coating [S2][S3].
Selection Criteria: Decision Matrix by Application
Concrete post-tensioning (bridge, parking, slab): 15.24 mm ASTM A416 Grade 270 7-wire, bonded, duct + grout, nominal area 140 mm², minimum breaking 260.7 kN. For high-stress or long tendons, move to 17.78 mm Grade 270 (minimum 353 kN) before switching to 19-wire geometry. [S1]
Ground anchors and rock bolts: 15.24 mm or 17.78 mm ASTM A416 Grade 270 7-wire inside corrugated PE duct, with double-corrosion protection (greased sheathing plus grout) for permanent anchors. Move to ASTM A722 bars when tendons exceed roughly 25 m of free length and wedge seating losses start to dominate.
Overhead guy and messenger: ASTM A475 galvanized 7-wire, 3/8" to 7/16" Class A or B for standard guys, Class C or D where salt spray or industrial corrosion is documented. For ACSR conductor core, switch to ASTM B498 zinc-5% Al-Mischmetal coated wire at the same diameter schedule [S2].
Stay cables and cable-stayed structures: 15.7 mm or larger 19-wire or compacted 7-wire, factory-wrapped with wax and HDPE, individual sheaths, HDPE outer pipe, dampers sized to the cable. Galvanized or zinc-aluminum coated per project corrosion spec.
Common Sizing Mistakes and How to Avoid Them
Specifying A416 strand for an overhead guy is a recurring error — the strand will be undersized for the load table and uncoated for the environment, and will fail inspection at the galvanizing submittal stage. Conversely, A475 galvanized strand pulled into a post-tensioning duct rejects the standard relaxation and creep envelope the engineer designed for [S2].
Selecting bonded vs unbonded on price alone is the second recurring error. For bridge and ground-anchor work, bonded grouted systems remain the durable default.
Finally, ignoring relaxation class costs money. Low-relaxation (Grade 270 LoLax) strand holds roughly 2.5% loss at 1000 h, 70% of ultimate, vs 6.5–8% for stress-relieved (regular-relaxation) — the upgrade is a few percent on material and can shave an entire tendon off the schedule in long-span post-tensioning.
Lead Time, Sourcing and Sourcing Levers in 2026
Domestic North American and EU mills stock 12.70 mm and 15.24 mm Grade 270 7-wire as running-line SKUs with 2–4 week lead time; 9.53 mm is widely available; 17.78 mm and 19-wire geometries sit on 8–14 week mill schedules, and indented production attracts a surcharge. Galvanized A475 strand at 3/8" to 7/16" is in stock at most wire-rope distributors; less common Class C/D coatings and 19-wire galvanized move to 6–10 week lead time [S1][S2].
Chinese mills continue to dominate large-diameter and galvanized tonnage: annual line capacity at major producers runs into the tens of thousands of metric tonnes, with ASTM A416 and A475 product lines shipped on FOB Tianjin or Shanghai with mill test certificates per heat [S2]. Buyer's checklist stays the same: cast analysis, stress-relief or low-relaxation certification, dimensional report per coil, and relaxation test result on first article.
Track for the next quarter: any revision to ASTM A416 low-relaxation acceptance criteria, and any mill-side move to higher zinc-coating weight defaults on A475 Class C — both have been in committee discussion for over a year and would tighten the acceptance window for imported strand.
