Swing gates and drop gates are the two most common manually operated crossover options on gravity and powered roller conveyor lines, and the choice between them is driven almost entirely by traffic frequency, available floor space, and what equipment needs to pass through [S5][S6]. On a 24 in. to 40 in. wide roller line, both gate types can be retrofitted without modifying the conveyor frame, but their mechanics, footprint, and ergonomics differ enough that a wrong pick costs months of operator frustration.
Industry ergonomics guidance is explicit: crossovers (fixed bridges) are the right call when traffic is frequent and space exists, and hinged gates are the right call when the conveyor must stay breakable for cart or lift-truck access [S5][S6]. The hard data point operators report is that a counterbalanced swing gate can be opened and closed with one finger, while a standard spring- or cylinder-loaded drop gate typically requires two hands and a noticeable pull force [S5].
Swing Gate Mechanics and Where They Fit
A swing gate on roller conveyor is a framed section mounted on side hinges so the entire gate leaf rotates up and out of the line, parallel to the conveyor run, like a door [S5][S1]. The hinge side becomes the pivot, the opposite end carries a handle, and in the closed position the gate rollers or skids align with the running rollers to preserve product flow. Open it, and an operator walks straight through the line with a cart, tote, or hand truck.
Footprint is the swing gate's strongest selling point. Because the leaf rotates into the aisle rather than lifting vertically, the only clearance needed is the gate length plus a small handle radius, typically 18 in. to 24 in. of arc clearance on the open side [S5]. A counterbalanced hinge (half the conveyor section acting as a counterweight, or a dedicated weight package) is the usual fix for the common complaint that "these gates are heavy to open and close" [S5]. Swing gates on roller conveyors are more feasible than on belt conveyors, where the same geometry is harder to seal and support [S5].
Drop Gate Mechanics and Where They Fit
A drop gate (also called a lift-out or drop-down section) is a framed conveyor segment that the operator physically lifts straight up and out of the line, then sets on a nearby stand or floor rest [S5]. In a powered line the gate is usually hinged at one end so it pivots up and away; in a gravity line it is often a true lift-out, with handles on both sides and no hinge at all. The defining behavior is vertical removal of the gate section, not horizontal rotation.
Drop gates are favored when the conveyor is tall, when the surrounding aisle is narrow, and when lift trucks or pallet jacks need to roll straight across the line without a gate leaf protruding into the travel path. The trade-off is weight: a 4 ft section of 1.9 in. or 2.5 in. galvanized roller conveyor with steel side frames can easily run 60 lb to 90 lb, which is why "spring or air cylinder" assists are the most common mitigation and why the standard guidance is to "add more springs or cylinders" if the gate is hard to operate [S5]. A drop gate also leaves a clear, unobstructed span in the line when removed, which is the reason warehouse and parcel operations prefer it at high-frequency transfer points.
Selection Criteria: Frequency, Footprint, Load, and Ergonomics
Traffic frequency is the first cut. Ergonomic assessments of conveyor crossings consistently place crossovers ahead of gates for high-frequency foot traffic, with a hinged gate preferred only when the conveyor must be opened regularly for material flow [S6]. Converting that into a gate-vs-gate rule: if the gate will be cycled more than roughly 20 to 30 times per shift, a counterbalanced swing gate or a spring-assisted drop gate is the minimum, and a fixed crossover bridge starts to win on operator fatigue and on reduced dropped-product risk [S5][S6].

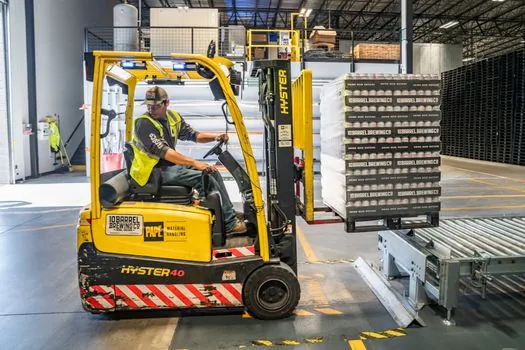

Footprint and equipment size decide the second cut. A swing gate needs lateral arc clearance equal to the gate length, while a drop gate needs vertical lift clearance equal to the gate frame height plus operator reach (typically 72 in. to 80 in. of unobstructed overhead). A swing gate is the better fit in narrow aisles with high ceilings; a drop gate is the better fit in wide aisles with low ceilings or overhead obstructions. The third cut is what crosses: a swing gate can pass any cart, tote, or hand truck that fits the gate width, but the protruding leaf is a snag hazard for long loads on a lift truck. A drop gate, when fully removed, presents a flush opening and accepts full-pallet jacks and standard electric pallet trucks up to about 5,500 lb capacity without snagging.
Ergonomic force to operate is the fourth cut, and the one operators notice first. Counterbalanced swing gates have been documented to open and close with a single finger when properly set up, while spring- or cylinder-assisted drop gates still typically require a deliberate two-hand lift on the order of 25 lbf to 50 lbf peak force for a 4 ft section [S5]. Where a gate must be cycled without counterweights and without assists, ultra-lightweight gate sections built from aluminum or composite rollers are an alternative the source material flags for consideration [S5].
Comparison Matrix: Swing Gate vs Drop Gate
On a standard 24 in. to 40 in. wide roller conveyor with 1.9 in. rollers on 3 in. centers, the four decision criteria line up as follows. Cost: swing gates are typically lower cost because they reuse the existing conveyor side frame as the hinge support and need only a handle and a stop, while drop gates add a lift mechanism, a rest stand, and usually a spring or gas-cylinder assist. Footprint: swing gates need lateral arc clearance (gate length plus handle), drop gates need overhead clearance (frame height plus reach). Traffic frequency suitability: swing gates handle low-to-moderate cycle rates comfortably, drop gates handle moderate-to-high cycle rates when assisted. Load passage: drop gates accept full pallet jacks and long loads cleanly; swing gates pass carts and totes but snag long loads on the protruding leaf. Operating force: counterbalanced swing gates are essentially zero-force, unassisted drop gates can exceed 50 lbf and are the most common operator-complaint category [S5].
Failure Modes and Operator Complaints Worth Pre-empting
The single most cited complaint across gate styles is excessive operating force, and the source material is direct: "it is common for these gates to be heavy to open and close. Sometimes adding more springs or cylinders solves the problem, as can providing proper maintenance" [S5]. For swing gates, the related failure mode is hinge sag, where the gate leaf drops below the conveyor roller line and creates a snag point; the mitigation is a properly sized continuous piano hinge or two heavy-duty butt hinges per side, plus a positive closed-position stop. For drop gates, the failure mode is gas-cylinder seal failure, where the gate slams or refuses to hold position; the mitigation is specifying industrial-grade cylinders with a published cycle rating (typically 50,000 to 100,000 cycles) and a maintenance interval.
A second failure class is misalignment between the gate rollers and the conveyor rollers. On a gravity line, even 1/4 in. of vertical step at the gate interface causes product hang-ups and carton damage; on a powered line, the same step can trip the drive chain or belt. The fix is a machined or shimmed gate-to-line interface, not field-fitting, and it is a line item that should be in the gate specification rather than left to installation.
When a Crossover Bridge Beats Either Gate
Fixed crossover bridges are the right answer when traffic is frequent, when carts and lift trucks do not need to cross at that point, and when floor space is available [S5][S6]. The trade-off is that bridges do not allow passage of carts or lift trucks, require additional floor space for the stair runs, and become inconvenient when carrying items up and down continuously [S5]. For most distribution-center transfer points where a cart must cross multiple times per shift, a counterbalanced swing gate or an assisted drop gate will out-perform a bridge on total throughput, even though the bridge is the safer choice at a pure pedestrian choke point.
Specification and Sourcing Notes
For new builds, the conveyor OEM (Dorner, Hytrol, Interroll, Ashland) typically offers a matched gate option for each conveyor series, and that matched option is almost always the lowest-risk specification because the roller height, frame width, and interface geometry are guaranteed. For retrofits, the practical move is to send the conveyor's model and serial number to the gate fabricator and have the gate built to the existing frame, not the other way around. Lead times for custom-fabricated gates in 2026 generally run 4 to 8 weeks for steel-framed units and 2 to 4 weeks for aluminum or composite units, though mill and shop capacity swings can stretch steel work to 12 weeks during peak quarter-ends. [S5]
For general conveyor selection context, the roller conveyor encyclopedia entry covers frame gauges, roller diameters, and load ratings that should be matched to the gate section. Adjacent topics worth checking before finalizing a gate spec include road roller drive and bearing choices for the gate's own rollers, where roller bearing selection governs how smoothly the gate leaf swings or rolls.
Trackable signals for the next planning cycle: (1) whether your facility's gate-cycling rate is being measured or only estimated, since the 20 to 30 cycles per shift threshold is the trigger for moving from a passive gate to an assisted or counterbalanced one [S5][S6]; (2) the operating force on each existing gate, which can be measured with a simple hanging scale at the handle and compared against the 25 lbf ergonomic guideline for repetitive two-hand operations.
