A triplex plunger pump uses three plungers operating 120 degrees out of phase, while a quintuplex plunger pump uses five plungers, and the difference shapes displacement smoothness, package mass, fluid-end consumable count and the horsepower envelope each design occupies [S1][S2][S4].
The two configurations compete across mud pumping, pressure pumping, hydrostatic testing, water-jet cutting and chemical injection service, where published power classes split at roughly 2250 HP and discharge-event count shifts from three to five per crankshaft revolution [S2][S4]. For background on the positive-displacement family these designs belong to, see the plunger pump reference page.
Plunger Count and Discharge Geometry
A triplex pump produces three displacement events per crankshaft cycle, each spaced 120 degrees apart, which keeps the combined flow reasonably stable for a reciprocating machine but still leaves a measurable residual pulsation that downstream pulsation dampeners or accumulators are commonly asked to absorb [S2][S4].
A quintuplex pump produces five displacement events per cycle, typically phased at 72-degree intervals, so the vector sum of plunger velocities at the manifold approaches a flatter curve and peak-to-trough flow variation drops, which is one of the main reasons high-horsepower frac spreads gravitate toward the 5-plunger layout [S2][S3]. This is the same fundamental principle that differentiates a triplex pump from a centrifugal pump for flow-ripple-sensitive service: one converts reciprocation into discrete pulses, the other converts rotation into a continuous stream.
Horsepower, Pressure and Flow Envelopes
Published power classes for the two architectures rarely overlap. GPE's triplex frac line covers 400-2250 HP, while the quintuplex line covers 2500-5000 HP, and American Mud Pumps mirrors that split with its AMP-series triplex models and AMPQ-series quintuplex models ranging from AMPQ-300 to AMPQ-3000 [S2][S3].
On the triplex side, typical industrial ratings reach pressures in the thousands of PSI with a fixed displacement per stroke, which makes them attractive for hydrostatic testing, water-jet cutting, RO feed boosting and chemical injection where flow accuracy matters more than raw rate [S4]. The reciprocating geometry is shared with the diaphragm pump family in that both meter a defined volume per cycle, but the plunger version tolerates much higher discharge pressures than a typical mechanically actuated diaphragm head.
Pulsation, Rod Load and Mechanical Loading
Triplex designs inherently show greater flow variation than quintuplex designs, so package-level pulsation control is more frequently required on a 3-plunger frac spread, and discharge manifolds, dampeners and relief valves must be sized for the larger peak-to-trough swing [S2].
Quintuplex designs distribute the hydraulic reaction across five plunger-rod assemblies, which lowers the cyclic load per rod and allows the broader power end to absorb higher installed horsepower without crossing the rod-load limit that would otherwise cap a triplex fluid end. The 5-plunger arrangement also spreads wear across more parallel fluid-end positions, which is a genuine reliability advantage on long frac stages but means five packing sets, five valve covers and five plunger/liner wear items per overhaul instead of three [S2][S3].
Package Size, Weight and Service Scope

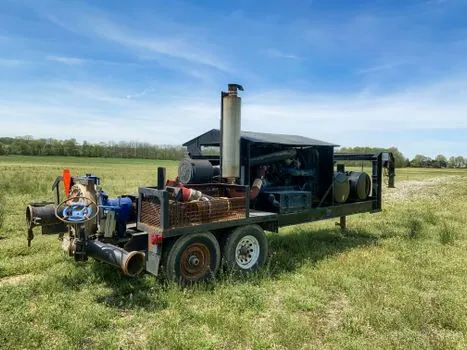

For a comparable design class, a triplex power end and fluid end are generally smaller and lighter than a quintuplex package, which simplifies trailer mounting, rig-up on a wellhead and crane picks in remote pads [S2]. A triplex fluid end also has fewer parallel consumable positions, so valve-and-seat swaps, plunger replacements and packing changes require fewer line items per service interval.
Quintuplex packages are larger and heavier because the crankshaft carries five rod assemblies and the fluid end has five parallel chambers, but that added hardware is what enables the 2500-5000 HP envelope and the lower discharge ripple expected from a 5000-HP-class frac pump [S2][S3]. For a deeper comparison of how positive-displacement machines stack against rotary-displacement designs on flow-ripple and priming behavior, the gear pump and hydraulic pump reference pages frame the rotary side of the family.
Selection Matrix: Triplex vs Quintuplex on Real Duty Criteria
The decision is not plunger count alone; plunger count, pressure, flow, rod load, pump speed, fluid properties and duty cycle all have to land on a single approved duty point before a model is selected [S2]. The comparison below lines the two configurations up against the criteria that actually drive a purchase order.
Selection factor / Triplex (3 plungers) / Quintuplex (5 plungers): Plunger count: 3 / 5; Power class: 400-2250 HP / 2500-5000 HP; Discharge events per cycle: 3 / 5; Inherent flow variation: higher / lower; Fluid-end consumable positions per overhaul: 3 / 5; Package mass for a given class: lighter / heavier; Typical positioning: cementing, pressure testing, selected fracturing, water-jet cutting / high-rate, high-HP hydraulic fracturing; Best fit when simplicity and footprint dominate / high rate, high installed power and smoother discharge dominate [S2][S3][S4]. If a duty requires more installed hydraulic power than a 2250-HP triplex can deliver, or if a frac spread needs the smoother manifold flow that 72-degree phasing provides, the quintuplex layout is the correct choice; if the duty fits inside the triplex envelope, the simpler 3-plunger package is usually the lower-total-cost path [S2].
Maintenance, Wear Parts and Operating Cost
Triplex units have three plunger, packing and valve-chamber sets to inspect, which shortens teardown and inspection time per event, while quintuplex units have five, so a single overhaul visits more parallel positions even when wear rates per chamber are similar [S2]. The relationship between power-end architecture and the broader industrial pump maintenance philosophy is straightforward: more parallel wear parts means more inventory SKUs but a longer mean time between full fluid-end replacements on high-HP service.
Materials on both configurations commonly include high-strength stainless steel, forged alloy and corrosion-resistant options, which lets the same basic architecture cover abrasive slurry, chemical service and high-temperature fluids as long as the fluid end is correctly specified [S4]. Liner options published for comparable drilling pumps include file-hard, high-chrome sleeve and ceramic or zirconia grades, and piston options span urethane-bonded, rubber-bonded, high-temperature urethane and bull-nose extreme geometries, so the consumable matrix, not the plunger count, usually determines service life on a given wellsite [S3].
Engineering Pitfalls When Comparing the Two
Published maximum pressure and maximum flow are not always available from the same pump at the same time, so a head-to-head spec sheet comparison that ignores plunger diameter and stroke speed will mislead a buyer; the correct comparison is on a matched duty point at the same rod load and the same pump input power [S2].
A second trap is treating plunger count as a proxy for reliability. Quintuplex units do have more wear parts, but they also spread each wear event across more chambers, so the per-component cycle count on a high-HP frac spread is often lower than on a triplex running at the top of its envelope. Selection on total cost of ownership should compare cost per pumped barrel or cost per pumped hour, not the per-overhaul parts count. For related guidance on sizing electric drivers to reciprocating loads, the spec-driven motor selection discussion in Three-Phase vs Single-Phase Motor on a Small HPU covers how motor class and supply phase change the HPU-side decision once the pump class is fixed.
Use-Case Recommendations
Specify a triplex plunger pump when the duty is cementing, hydrostatic testing, water-jet cutting, chemical injection, RO feed boosting, mine dewatering or any selected fracturing job that fits inside a 400-2250 HP envelope, where the simpler 3-plunger package, lighter trailer and lower consumable count outweigh the residual pulsation [S2][S4].
Specify a quintuplex plunger pump when the duty is high-rate hydraulic fracturing, large-volume well service or any operation that needs the 2500-5000 HP envelope and the flatter combined flow profile of a 5-plunger crankshaft, and where the larger package footprint and five-chamber service scope are acceptable for the gain in installed power and discharge smoothness [S2][S3].
Track two signals before locking the spec on the next project: the published rated-load mean time between fluid-end failures from the OEM's field-data sheet, and the actual peak-to-trough flow variation measured at the discharge manifold on the representative duty cycle, since both numbers move independently of the catalog horsepower and are the real inputs to a defensible triplex-versus-quintuplex decision.
