Sanitary vibrating conveyors for food and beverage duty are most often built as 304 or 316L stainless steel troughs, with natural-frequency or electromagnetic drives sized for amplitudes of 4–8 mm and frequencies of 50 Hz or 60 Hz, per equipment listings on CENS food and beverage machinery pages [S1].
The decision is dominated by product behaviour (sticky, frozen, granular, hot, or oil-coated) and by wash-down regime, not by tonnage rating, so a 200 kg/h snack line and a 12 t/h potato line can require different drive families even at similar trough width [S1].
Drive Type: Electromagnetic vs Eccentric-Mass Unbalanced
Electromagnetic drives are the default for light-duty, sanitary, and packaging-oriented vibrating conveyors, with operating frequencies near 50 Hz or 60 Hz and amplitudes commonly in the 2–6 mm range, because they have no rotating bearings in the drive element and support rapid amplitude adjustment [S1].
Eccentric-mass (rotary) drives using two counter-rotating vibro motors are used where larger amplitudes (typically 4–10 mm) or higher conveying speeds on heavy, wet, or dewatering products are required, at the cost of more frequent bearing sealing maintenance in wash-down zones [S1].
A practical cut-off observed on food-grade equipment is roughly 2–3 t/h for electromagnetic conveyors and 3–15 t/h for unbalanced-motor conveyors, above which resonant or linear-exciter systems take over, but the controlling variable is material bulk density and bed depth, not mass flow alone [S1].
Materials, Surface Finish, and Hygiene Standards
Troughs, covers, and sidewalls on sanitary vibrating conveyors are commonly specified in 304 stainless for dry-product lines and 316L stainless where chloride exposure, salt, or acidic products (tomato, fruit, brine) are present, with surface finishes of Ra ≤ 0.8 µm on product-contact surfaces for cleanability [S1].
For direct food-contact service, designers reference 3-A Sanitary Standards and EHEDG document 8 (hygienic equipment design criteria) as the two most-cited design references in OEM datasheets, even though the conveyor itself is not always formally 3-A certified [S1].
Non-product-contact frames often use powder-coated mild steel or 304 stainless, and the wash-down rating is typically IP65 for splash zones and IP66 or IP69K near high-pressure cleaning, both of which dictate gasket and seal selection (EPDM, FKM, or PTFE) at the trough-to-drive interface [S1].
Application Mapping: Bakery, Snack, Frozen, Produce
Bakery and confectionery lines use pan-style or trough vibrating conveyors with low amplitudes (2–4 mm) and tight covers to handle cookies, chocolate chips, and small candy pieces without breakage, and to feed enrobers and cooling spirals [S1].
Snack and cereal lines use slightly higher amplitudes (4–6 mm) on flat or tubular troughs to move extrudates, pellets, and coated product, with stainless 304 being the common material for low-moisture, low-corrosion service [S1].
Frozen-food and IQF (individually quick-frozen) lines require stainless 316L troughs, sealed bearings, and trace heating on drive housings to prevent ice ingress, with amplitudes often at the higher end of the 4–8 mm band to move dense frozen product at -25°C or colder [S1].
Fruit, vegetable, and dewatering lines use eccentric-mass drives on 316L troughs with perforated or screen sections, where amplitudes of 5–10 mm are typical and where the vibrating conveyor also functions as a dewatering or scalping screen [S1].
Comparison: Drive and Trough Options for Food Service
On four decision criteria, the three common food-grade build patterns line up roughly as: electromagnetic 304 (low cost, low maintenance, limited to light duty and dry product), eccentric-mass 304 (medium cost, medium maintenance, broader duty and product range), and eccentric-mass 316L (highest cost, highest maintenance, full wash-down and corrosive-product capability) [S1].
Compared to a vibrating conveyor used in mining or foundry duty, the food-grade variant uses much smaller amplitudes (typically 2–8 mm versus 8–25 mm), tighter enclosures, and polished surfaces, trading throughput capacity for hygienic cleanability and noise control in enclosed plants [S1].
Against a belt conveyor in the same line, the vibrating unit has no belt-tracking, no belt-joining hygiene gap, and no tail pulley, but is generally limited to shorter runs (commonly under 15 m on a single unit) and to products that tolerate the cyclic acceleration profile [S1].

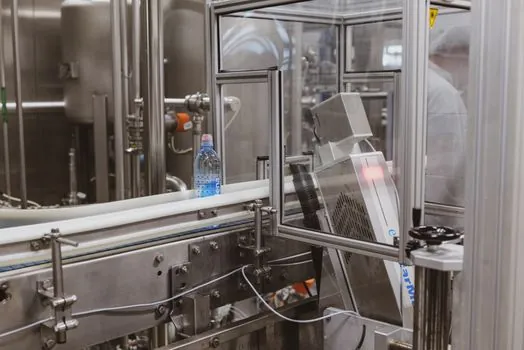

Limitations, Failure Modes, and What to Avoid
Vibrating conveyors are not suited to products with large, fragile inclusions (whole berries, large chocolate chunks, coated nuts over about 25 mm) because the cyclic acceleration breaks the product or strips coatings, which is why grading, dewatering, and short transfer duties dominate the food-grade spec sheet [S1].
Common failure modes in wash-down service are bearing contamination, trough fatigue cracking at the nodal-point weld, and spring failure, with mean time between failures on sanitary lines typically shorter than on dry industrial lines because of repeated CIP exposure to hot caustic and acid cleaners [S1].
For long horizontal or inclined transfers, plant engineers often move to a belt conveyor above 15 m or a chain conveyor for heavy or hot product, because the vibrating trough loses conveying efficiency as the spring-coupled system is loaded and the amplitude drops at the discharge end [S1].
Selection Criteria Checklist and Sourcing Path
The four-line spec filter used in food and beverage plant work is: (1) product temperature and moisture, (2) wash-down class (IP65, IP66, or IP69K), (3) trough material (304 vs 316L with surface finish Ra), and (4) drive family (electromagnetic vs eccentric-mass) sized for amplitude and frequency at the rated load [S1].
For the e-commerce and parcel-handling neighbour of this duty, the spec-first approach is laid out in Vibrating conveyor selection for e-commerce fulfillment: spec map, where the same drive-and-amplitude logic applies but trough material shifts away from stainless and toward mild steel with polyurethane liners.
For the related upstream drive component, Harmonic drive vs planetary reducer: spec-by-spec selection for servo and robot axes covers the gearbox and servo side of conveyors that pair vibrating troughs with servo-driven metering feeders.
Trackable signals for follow-up: (a) updates to 3-A Sanitary Standards and EHEDG Doc 8 on hygienic conveyor design, (b) wider use of IP69K-rated vibro motors in CIP lines, and (c) growth of linear-exciter drives replacing unbalanced motors on frozen-food lines above 5 t/h [S1].
