A pre-shift wheel loader inspection is a six-zone, 10-15 minute walk-around mandated by OSHA 29 CFR 1926.602 and MSHA 30 CFR Part 56, with paper checklists passing 73% of audits versus 96% for mobile digital versions [S4].
Articulation-joint failure is implicated in roughly 25% of loader fatalities on job sites, a single tire replacement runs $3,000-$8,000, and a blown hydraulic hose costs about $2,000 a day in unplanned downtime [S4]. These numbers, not paperwork convenience, are why the walk-around is non-optional under both OSHA 29 CFR 1926.600 and OEM operator manuals from Caterpillar, Komatsu, and Volvo [S3][S4].
The Six- and Eight-Zone Structures: How the Walks Are Built
Two industry checklists disagree on zone count, not on substance: HVI's daily walk uses six physical zones (front-end and bucket, boom and lift arms, articulation joint, cab and safety, tires and undercarriage, engine bay) timed at about two minutes each, while Simply Fleet's pre-shift form breaks the same machine into eight inspection zones (engine and fluids, hydraulic system, tires and undercarriage, bucket and attachments, brakes and steering, cab and safety systems, lighting and electrical, structural frame) [S3][S4]. Both lists start at the bucket and end at the engine bay, both are completed before the machine moves, and both reference a wheel loader operator's documented record under federal law [S3][S4].
The path is identical: walk clockwise, ground-to-top, front-to-back, every shift. OSHA treats the pre-shift walk as a competent-person inspection, so the same operator, the same order, and the same form must be used across the fleet or the record is legally weak [S4]. For mixed fleets that include a skid steer loader, the same visual-then-start-up sequence applies, but the daily form drops the articulation joint and adds a chassis lube row [S5].
Zone 1, Front-End and Bucket: Cutting Edge, Teeth, Pins
The bucket, cutting edge, teeth, and pins take every impact of every scoop, and wear here is fast and expensive [S4]. Inspectors measure the cutting edge against the original profile, confirm bolt-on teeth are all present and torqued with none missing, check the bucket floor for wear-through or cracks near the pivot, and verify pin retention hardware (clips and keepers) is in place [S4].
Red flags in this zone are explicit: cutting edge worn past the wear line, loose or missing teeth causing uneven digging, cracks in the bucket floor or side plates, and a quick coupler that is not fully locked or is missing its safety pin [S4]. Any of these findings triggers immediate tag-out before the loader leaves the yard.
Zone 2, Boom and Lift Arms: Cyclic Cracks and Bushing Play
The boom sees repeated bending loads, and structural cracks propagate fast under cyclic stress [S4]. The walk requires a full-length visual of both lift arms for cracks or weld separation, measurement of pin bushings for elongation or excessive rocking play, and confirmation that all grease points are present and recently serviced [S4].
These checks directly feed into a machine's service-life decision: for a detailed look at how boom, articulation, and engine hours map to replacement triggers, see the wheel loader lifespan and replacement triggers reference. Welding cracks in a lift arm are a structural red flag, not a maintenance ticket, and the machine stays parked until engineering signs off.
Zone 3, Articulation Joint: The 25% Fatality Zone
Articulation-joint failure is the single defect most likely to kill someone on a loader, and is behind roughly 25% of loader fatalities on job sites [S4]. The pre-shift walk inspects frame and chassis welds for cracks, bends, or stress fractures, particularly at the articulation joint itself, where failure is a leading cause of wheel loader rollovers on grade [S3][S4].
OSHA and OEM lists converge on a hard rule: if the articulation lock pin is engaged during operation, the machine is immediately out of service [S3]. Any fresh fluid pooling under the center pivot, any visible cracking in the articulation yoke, or any audible knock under load during the cold-engine portion of the walk is a tag-out trigger [S3][S4].

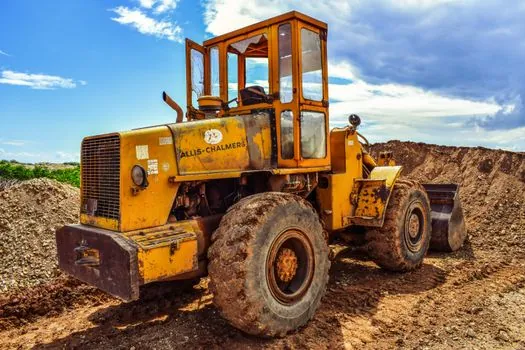

Zone 4, Tires and Undercarriage: PSI, Sidewalls, and Wear Pattern
Tire checks cover all four tires for cuts, bulges, embedded objects, and inflation pressure, with measured PSI compared against the OEM's cold-inflation specification, typically 55-80 PSI for standard earthmoving tires depending on size [S3]. Uneven wear patterns indicate alignment or loading problems that must be escalated, not logged for the next PM [S3].
A tire sidewall bulge is an immediate tag-out red flag, and a full set of loader tires runs around $25,000, with sidewall damage from missed inspections a leading preventable cost [S3][S4]. For landfill and high-abrasion sites, the spec baseline is harsher, and the wheel loader landfill spec map outlines tire compounds and guarding that change the daily check.
Zone 5, Cab, Safety, Hydraulics, and Engine Bay
The cab and safety zone covers ROPS structure integrity, seat belt, controls, back-up alarm, lights, horn, mirrors, and any cab-mounted display fault codes [S3][S4]. A crack anywhere in the ROPS structure is an immediate tag-out trigger, and a non-functioning back-up alarm is a same-shift fail [S3][S4].
The hydraulic walk inspects hoses for leaks, blistering, or weeping, metal fuel and oil lines for bends or kinks, and verifies that connection points are tight and dry [S3][S7]. A hydraulic hose that blows mid-shift costs about $2,000 a day in unplanned downtime, so the daily check looks for abrasion at routing clamps and at any point where the hose crosses a frame edge [S3][S4][S7]. The engine bay covers oil level, coolant level, fuel system drain for moisture and sediment, air-cleaner indicator, belt adjustment and wear, exhaust for leaks and excessive smoke, and a record of the hour-meter reading on the form [S3][S5].
Documentation, Red Flags, and When Paper Fails
OSHA 29 CFR 1926.600 and MSHA 30 CFR Part 56 both require pre-shift inspections to be documented and retained, and paper records are legally valid but operationally fragile because they cannot be audited in real time or trigger automated maintenance workflows [S3]. A serious OSHA violation of 29 CFR 1926.602 runs $16,550 per instance, and willful violations reach $165,514, so the record itself is a financial asset [S4].
The five hard tag-out triggers across the published checklists are: any crack in the ROPS structure, hydraulic hose blistering or weeping, a tire sidewall bulge, any fresh fluid pooling under the machine, and the articulation lock pin being engaged during operation [S3][S4]. The pre-shift walk does not replace 250-hour, 500-hour, or annual PM intervals; it catches acute failures (punctures, hose abrasion, fluid loss) that scheduled maintenance cannot predict [S3].
Paper checklists fail due to pencil-whipping, lost records, no real-time defect escalation, no trend visibility, no accountability chain, and no automatic work-order trigger, which is why digital daily vehicle inspection (DVIR) systems have moved from optional to standard on contractor fleets that bid federal work [S3][S4]. The next trackable signal for any fleet operator is the next Cat Inspect, HVI, or Simply Fleet update that adds photo-attached red-flag escalation to the work-order system, and the next MSHA or OSHA citation that names a specific zone on a specific form, both worth monitoring through the OEM Cat operator training checklist portal and the printable six-month form from VISTA Training [S1][S6].
