Aluminum single-plate curtain walls use 2.0 mm, 2.5 mm, or 3.0 mm high-strength aluminum sheet as the dominant skin gauges in current Chinese curtain-wall catalogs, and install over a steel-keel sub-frame with rigid hangers [S2].
Field practice separates three product families — aluminum single panel, aluminum composite panel (ACP), and aluminum honeycomb panel — each with its own thickness range, anchor scheme, and allowable joint width; mixing the three without re-checking the sub-frame design is the most common rework cause on site [S1]. For material basics, see the aluminum veneer panel reference and the broader aluminum alloy grade map.
Product Family and Thickness Selection
Aluminum single panel at 2.0–3.0 mm is the workhorse for exterior curtain-wall skins; ACP at roughly 4 mm total thickness (two 0.5 mm skins over a plastic core) is the lighter interior and signage option, while aluminum honeycomb panel typically lands in the 10–25 mm range for high-rigidity architectural faces and ceilings [S1][S2]. One catalog entry lists standard single-panel curtain-wall sheet thicknesses at 2.0 mm, 2.5 mm, and 3.0 mm with ISO 9001:2000 / ISO 9001:2008 quality system certification on the supplier side [S2].
Selection rule on site: pick single panel when flatness and impact resistance dominate, ACP when weight and formability dominate, and honeycomb when large-format flatness (often >1.5 m face) or fire performance dominates — and never substitute one family's hanger set onto another's panel edge. Material grade context, including 3003 / 5005 series behavior under bending and welding, is summarized in the aluminum alloy entry.
Substrate Preparation and Keel Layout
Substrate prep governs the whole install: a properly aligned and anchored steel-keel system is the single largest determinant of final panel flatness, with vertical and horizontal deviation typically held to within L/1000 of the span or 5 mm, whichever is tighter, on commercial Chinese curtain-wall builds [S2]. The keel is normally hot-dip galvanized steel angle or square hollow section, fixed to the primary structure with stainless or hot-dip galvanized expansion bolts; bolt spacing commonly runs 300–600 mm along the perimeter and is verified against the project structural drawing before panel hang.
Before any panel is lifted, the keel surface must be clean, dry, and free of curing compound; dissimilar-metal contact (e.g. bare aluminum against raw carbon steel) needs an isolation pad or paint barrier to prevent galvanic corrosion at the bracket face. Comparable alignment discipline on a different trade is described in the access control installation field spec map.

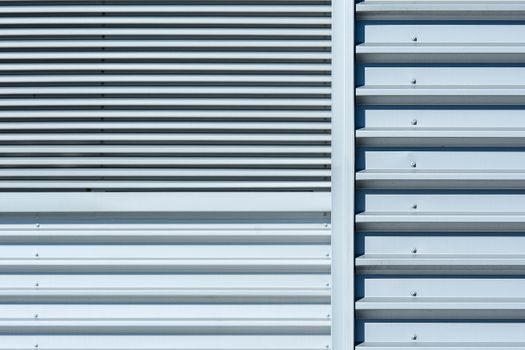

Anchor, Hanger, and Fastener Torque
Anchor torque is where most early-life failures originate: stainless steel M8 expansion bolts for the keel-to-structure interface are typically torqued to 18–25 N·m, while the panel-to-keel self-tapping or stainless machine screws (commonly M6 × 25 with EPDM sealing washers) are taken up to 8–12 N·m — the lower figure prevents the aluminum thread strip-out that shows up as panel sag within the first year. For heavier honeycomb panels (face weight often 12–18 kg/m² at 25 mm thickness) the hanger switches to a rigid clevis-and-pin detail with a fixed pin and a sliding pin to absorb thermal movement of roughly 1.0–1.5 mm/m across a 40 °C swing. [S1]
A useful cross-check during commissioning is to compare against acceptance gates on a comparable trade such as the TIG welding machine installation spec workflow, where torque verification and witness marks are part of the signed-off acceptance file.
Joint Width, Sealant, and Drainage Path
Open joint widths between single panels typically run 8–15 mm for exterior curtain walls, with EPDM gaskets behind and a weather-grade silicone sealant (commonly a neutral-cure silicone rated for ±25% movement) at the visible line; this is the standard "gasket + sealant" stack that also functions as the secondary water barrier [S1][S2]. ACP and honeycomb panels use a similar stack but with a closed-cell foam backer rod filling deeper joints so the sealant maintains an hourglass cross-section — without the backer, the silicone fails in adhesive mode at the panel face and pulls dirt into the joint.
Drainage and pressure equalization are handled by a vented horizontal joint at roughly every floor and at each slab line, sized so any water that does cross the outer seal drains to the outside face — a detail often missed on retrofits and a common source of interior staining after the first storm season. Comparable test-and-tolerance discipline on a different envelope trade is mapped in the building stone types sourcing reference.

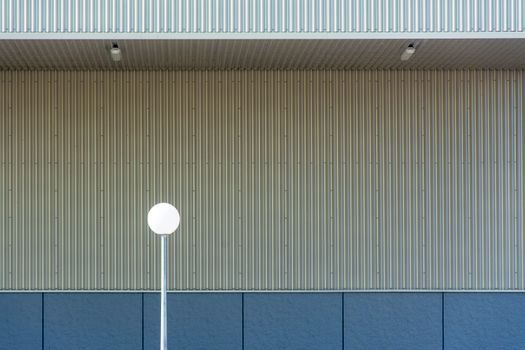

Flatness, Verticality, and Acceptance Criteria
Acceptance numbers that field engineers should write into the inspection and test plan: panel face flatness ≤ 2 mm over a 2 m straightedge for single panel, ≤ 1.5 mm for honeycomb, vertical alignment of the keel ≤ 5 mm over the full story height, and panel-to-panel flushness ≤ 1.0 mm at the joint. A 1000 m² minimum order quantity with 50,000 m²/month supply capability is typical for a China-based fluorocarbon-powder veneer line, so project sequencing should match the mill roll-out rather than chase small lots [S2].
Supplier-side quality systems are most commonly ISO 9001:2000 / ISO 9001:2008 for older lines and ISO 9001:2015 for newer audits; a current audit certificate should be in the bid set before the keel goes up [S2]. Guangdong Reinalite Industrial Co., Ltd. (Zhaoqing, High Tech Zone, account registered 2014, business range Construction & Decoration, ISO 9001 certified) is an example of the typical China-based veneer manufacturer profile attached to these projects [S3].
Failure Modes, Repair vs Replace, and When to Escalate
Symptom → root cause → action on a veneer install reads as: oil-canning face (panel too thin for span or hanger too tight) → loosen one fixed pin to a sliding pin and recheck flatness; localized staining at slab lines (drainage path blocked) → clear the horizontal weeps and re-grout; fastener strip-out at panel edge (over-torque or wrong screw length) → replace the panel corner cleat, not the whole panel, if the panel face is undamaged; sealant cohesive failure (no backer rod, wrong joint geometry) → rake out and re-seal with the correct two-sided bond geometry. Replace, do not repair, when the panel shows creased aluminum from impact, when the honeycomb core has delaminated over more than 10% of the face, or when the keel deflection exceeds L/300 — these are structural, not cosmetic, conditions. [S1]
Two signals to track on the next project review: confirm whether the chosen fluorocarbon-powder coating (PVDF / FEVE) is rated for the project's UV and acid-rain exposure class, and confirm the fire-test class on the ACP core (A2 / B1 in GB 8624 terms) before signing the submittal — both are decisions made at the drawing stage that are expensive to walk back on the scaffold. For a wider view of process-side sensor and IIoT choices that touch panel production lines, the solar panel process control spec map is a useful parallel read.
