A belt conveyor is only as good as the spec sheet that defined it, and on 2026-07-04 the dominant selection errors still trace back to four upstream gates: bulk-vs-unit load characterisation, belt family, geometry envelope, and drive position. Each gate is binary — pass or fail — and they are evaluated in that order because a wrong answer at gate 1 invalidates every later decision.
The reference install universe spans 0.5 m tabletop takeaway lines through 16.5 ft+ (5 m) modular transport conveyors [S1], and the same gate logic scales to steel belt mills running abrasive clinker or to LkBelt's PU timing-belt and nylon flat-belt product lines that share the same drive-side terminology [S2]. Buyers who treat "belt conveyor" as one product family instead of three or four pay for it in bearings, in edge damage, and in unscheduled stops.

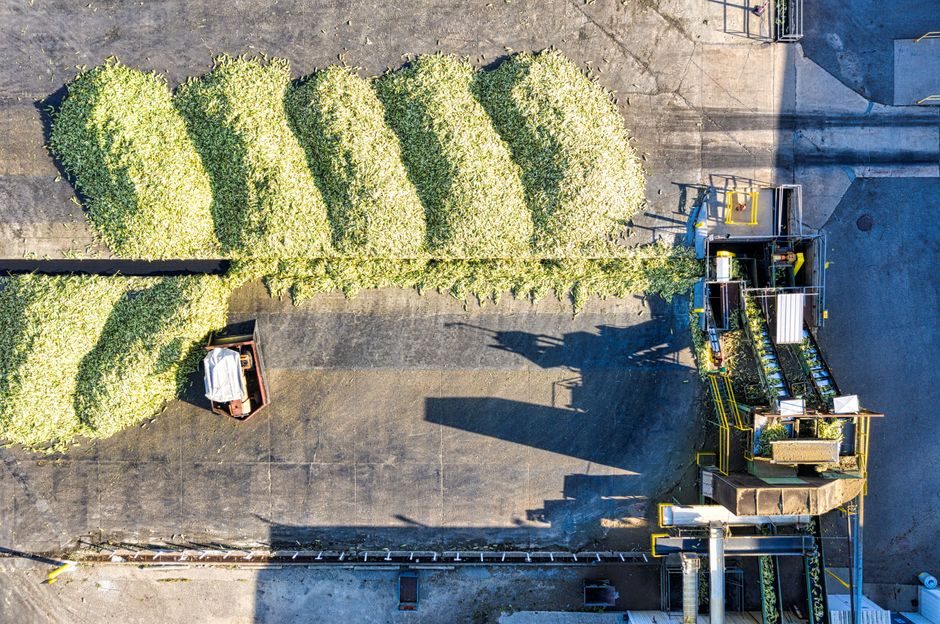

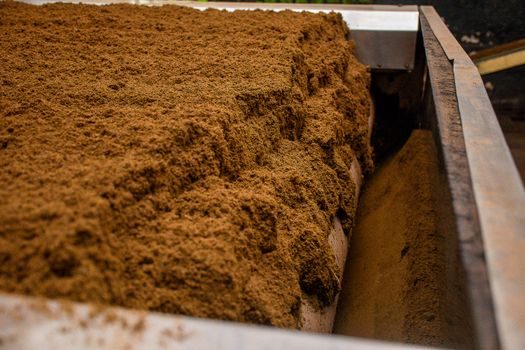

Gate 1 — Load Profile and Bulk vs Unit Decision
Load profile must be quantified before any other parameter: bulk density (kg/m³), piece mass (kg), particle or package geometry (mm), temperature (°C), oil/chemical exposure, and abrasiveness (Mohs or content %). For dry bulk under 1.6 t/m³ a troughed rubber belt on a CEMA-style idler set is the default; for unit cartons, totes or trays a flat PVC or PU belt over a slider bed is the lower-cost route, and for hot or oily parts a flat belt on a stainless slider or a steel belt is mandatory because standard fabric covers swell and glaze above ~80 °C [S3].
Bulk vs unit drives the rest of the spec. Bulk lines over ~5 m typically justify troughing idlers, belt widths of 500–1200 mm, and a head-end drive sized for 1.25× the steady-state belt pull; unit-handling lines under 5 m can stay on slider beds with a 50–80 W drum motor or a belt tensioner on a side-mounted gearmotor [S1]. Roller conveyor vs bucket elevator: 6 spec levers for bulk vs unit loads is a useful sister read when the load genuinely sits between conveyors and vertical lifts.
Gate 2 — Belt Family Selection
Belt family is the second binary gate, and the four families behave differently enough that cross-substitution is the most expensive mistake in the field. The four common families are rubber/PVC flat belts, PU round/ribbed belts, timing belts (PU or rubber with tooth profile), and steel wire or plate belts. PU timing belts such as the T10/XL/H profiles and the TS20-PAZ fabric-tooth variant from ISO 9001:2008-certified Chinese makers are stocked for synchronous drive where slip cannot be tolerated [S2].
Steel conveyor belts — woven wire, ladder, balanced weave, plate link — are specified for heat (>200 °C), oil, and cut-through resistance, and Chinese suppliers such as steelconveyorbelt.com publicly cite 17+ years of export experience in this niche [S3]. For low-noise, light-duty takeaway between machines, a modular plastic or light fabric flat belt on a 16.5 ft modular frame is the standard offering, with motor fitment on the right as factory default [S1]. Ribbed belts belong in the multi-groove drive sub-decision, not in the main family choice.
Gate 3 — Geometry, Length, Width and Incline
Geometry is the third gate and is normally expressed in three numbers: centre-to-centre length (m), belt width (mm), and lift/incline angle (°). Modular conveyor builders standardise on 1.5 m, 3 m and 6 m length modules so that almost any line between 1 m and 16.5 ft (5 m) can be built without a custom frame [S1]. Belt width tracks payload footprint: ~80–150 mm for small-parts takeaway, 300–600 mm for carton or tray merge, 800–1400 mm for aggregate or recycling bulk.
Incline has a hard physical ceiling. Cleated or chevron belts move bulk up 25–35° lifts; smooth flat belts are reliable only under 15–18°, and for steeper lifts a bucket elevator takes over (see Bucket Elevator Buying Guide 2026). Length × load × lift feeds directly into motor kW and into belt-tension sizing, which is why most failed retrofits originate in this gate rather than in the brand choice.
Gate 4 — Drive Layout, Tension and Motor Sizing
Drive layout is the final gate and is decided after length, width and lift are known. The four common layouts are: head-end drum drive (most common, simplest), mid-drive take-up (long lines), side-mounted gearmotor with belt tensioner (compact modular units), and centre drive with dual snub pulleys (heavy bulk). For a 16.5 ft modular unit the standard fit is a right-hand head-end motor with a take-up screw at the tail, with the belt of corresponding length and width ordered as a separate line item [S1].
Motor sizing rule of thumb applied by experienced integrators: 0.25–0.55 kW per metre of length for horizontal light-duty lines, rising to 1.1–2.2 kW per metre on inclined or heavy bulk. PU timing-belt drives run quieter and skip the slip-adjustment step but require accurate centre distance and a tensioner that holds the tooth engagement under load [S2]. For steel belts the drive is typically through sprockets or a friction drum, and the take-up travel must accommodate thermal expansion above 200 °C [S3].
Comparison Table — Four Belt Families Across Four Decision Criteria
The four common families compare cleanly across four decision criteria, which is the minimum structure needed before any shortlist. PU/rubber flat belt: low cost, ≤80 °C, low oil tolerance, simple end joining. Steel belt: high cost, 200–600 °C, full oil tolerance, factory-only splicing. PU timing belt: mid cost, ≤80 °C, fair oil tolerance, no slip but needs accurate centre distance. Modular plastic flat belt: mid cost, ≤60–100 °C, good chemical tolerance, easy field replacement [S2][S3].
Two product-side anchors hold this table together: LkBelt's ISO 9001:2008-certified PU timing-belt range (T10, XL, TS20-PAZ fabric-tooth) for synchronous drives [S2], and steelconveyorbelt.com's 17-year export experience in woven wire, ladder and plate-link steel belts for high-temperature and abrasive service [S3]. For mid-volume OEM/private-label sourcing the Kunming Conveyor Belt group also runs a multi-line belt-and-conveyor OEM service for distributors worldwide [S5].
Failure Modes and Limits the Datasheet Won't Catch
Three failure modes appear repeatedly and are not on the headline spec sheet. First, edge wear: fabric edge belts running on troughing idlers fail at the edge long before the cover is worn; specify a minimum 1–2 mm abrasion-resistant edge or a steel-cord-reinforced edge for bulk. Second, slip and mistracking under contamination: a smooth flat belt running wet or oily loses traction, and a ribbed belt or timing belt is the only reliable fix.
A 5 m modular unit shipped with motor on the right is the standard configuration, but field retrofits that flip the motor to the left without re-routing the cable gland are a routine cause of premature bearing failure [S1]. Treat any "drop-in replacement" that ignores geometry, belt family, or drive layout as a redesign rather than a spare.
Specifications and Standards That Actually Apply
Two framework standards govern most belt conveyor build practice and are cited on most OEM drawings: ISO 9001:2008 for the belt-maker's quality system, and CEMA / ISO 5048 / ISO 7119 family of standards for conveyor calculations on heavy bulk lines. Belt-maker quality is verifiable on the certificate: LkBelt publishes ISO 9001:2008 coverage explicitly across its PU timing-belt, nylon flat-belt and steel-belt product lines [S2]. For steel belts, look for material certificates (304/316 stainless) and a documented sintering or heat-treatment process rather than a marketing brochure.
For motor and electrical enclosures, the same IEC 60079 / ATEX logic used in any process skid applies, and the conveyor must be specified to the same zone classification as the surrounding line; this is the most-skipped item on a buyer's checklist and the single most expensive one to retrofit. Conveyors crossing classified zones should also carry a documented earthing path and a belt tensioner with a bonded, static-dissipating pulley, otherwise the belt itself becomes an ignition source.
Who the Belt Conveyor Is For — and Who It Is Not For
The belt conveyor is the right answer for horizontal or low-incline transport of bulk or unit loads over 1–100 m, at speeds of 0.1–3 m/s, in almost every industry from packaging to quarry. It is the wrong answer for steep lifts above ~35° (use a bucket elevator), for sanitary or washdown product contact without specifying PU or stainless (use a dedicated sanitary conveyor), and for free-flowing powders that fluidise on vibration — those need an enclosed or screw conveyor, not an open belt. [S1]
It is also the wrong answer where the load profile is undefined. A "general purpose" line is a procurement convenience, not a real spec, and the most reliable way to fail a project is to buy one. Run the four gates, log the numbers, then choose the belt and the drive to match.
Selection Checklist and 2026 Sourcing Signals
Pre-purchase checklist applied by most senior integrators: (1) load profile written down, including abrasiveness and temperature; (2) belt family chosen from the four-way table; (3) length/width/incline captured as three numbers, not as "a long conveyor"; (4) drive layout and motor kW with a 1.25–1.5× service factor; (5) standard and certification reviewed for the actual zone, not for the factory default. Any quote that arrives without all five should be returned for re-spec. [S2]
Two trackable signals for the back half of 2026: Chinese OEM/private-label capacity for PU timing belts, nylon flat belts and steel conveyor belts remains broad, with ISO 9001:2008-certified producers such as LkBelt and steelconveyorbelt.com both publicly active as of July 2026 [S2][S3], and dedicated conveyor-system OEMs like Kunming Conveyor Belt are openly courting international distributors and OEM clients on customised builds [S5]. Watch for a second-half 2026 push on higher-temperature PU covers and on steel-belt take-up travel, both of which would tighten the failure-mode table above.
