Chemical-plant and terminal buyers specifying a bucket elevator for bagged or bulk chemical shipping should treat the unit as a materials-engineering problem first and a mechanical one second, because the conveyed cargo dictates casing, bucket, belt, and discharge geometry.
The common envelope is a single-leg intermediate casing rated to 50 ft maximum height (per Martin Sprocket & Gear catalog 4, p.76), centrifugal or continuous bucket media, volumetric capacities typically falling in the 100-1,800 ft³/h band, and either a belt or chain as the carrying medium.
What the elevator is actually lifting: chemical-bulk cargo families
Chemical shipping moves a defined set of bulk solids: fertilizers, mineral salts, plastic pellets, soda ash, calcium carbonate, dry pigments, catalyst carriers, and bagged or loose agricultural chemicals, all of which are routinely enumerated as bucket-elevator duty in vendor selection guides [S5].
Each family stresses a different part of the elevator. Free-flowing granules and prills tolerate high-speed centrifugal discharge; sluggish, flaky, or dusty chemicals must be handled at lower belt speeds with continuous-discharge geometry to avoid carry-back and degradation [S7].
Fertilizer plants, salt terminals, and soda-ash plants are the three verticals where corrosive or chloride-laden cargo meets the elevator on every shift, and bucket/casing material is the single largest driver of service life in those plants [S6].
Discharge style: centrifugal vs continuous, and the speed that picks them
Centrifugal belt elevators (type designation CEB in the Screw Conveyor Corporation bulletin) use a head-pulley speed measured in FPM and rely on centrifugal force to throw material out of the bucket; continuous-discharge elevators run slower because gravity is what empties the bucket [S7].
For chemical shipping, the rule of thumb is concrete: choose centrifugal for free-flowing granules with a normal size at the lower end of the lump range, choose continuous for materials with a high percentage of lumps or a sluggish flow profile where retention in the bucket must be guaranteed until the discharge lip rotates over the chute.
Head-pulley RPM and belt width are tied together in manufacturer capacity tables; undersizing either is the most common reason a chemical elevator fails to hit nameplate throughput, and the specifier should always pull the volumetric capacity in CFH at 100% and at 10% lumps, not the headline number alone [S7].
Bucket and casing material: 304 vs 316 stainless, urethane, and where carbon steel is rejected
Corrosive service is where the materials decision is most exposed. Fertilizers, salt, wet chemicals, and any moisture-containing product will corrode ordinary carbon steel buckets within a single operating season, and the vendor-side reference is explicit: 304 stainless covers most industrial and food-grade duties, while 316 stainless is specified where chlorides, salt, and stronger chemical attack are present [S6].
Bucket and casing material should be selected as a matched set. 304 stainless buckets paired with painted carbon casings defeat the purpose, because condensate or wash-down water at the boot section will cut the casing long before the buckets fail; the 304 or 316 grade should extend at minimum through the boot, the head, and the intermediate casing.
Where product contamination is unacceptable, urethane-lined discharge hoppers and FDA/USDA-grade polymer buckets are options on the spec sheet [S8], and plastic buckets are available across the major product lines for non-abrasive, low-density chemicals [S1].
Height, head shaft, and structural design gates
Single-leg intermediate casings are generally capped at 50 ft of unsupported height [S1], and discharge heights above that require either a guy-cable package tied at 45 degrees to deadman anchors or a structural tower designed by the contractor [S8].
Head-shaft diameter and horsepower are not values a buyer should pre-select on paper; the catalog text is explicit that head-shaft diameter is to be determined by the customer's application and specifications, and horsepower selection is referred back to the manufacturer for confirmation [S1].
This is a deliberate hand-off in the spec chain: a buyer who locks the head shaft diameter and motor kW before the application data sheet is filled in will typically re-spec the equipment after the vendor review, with cost and lead-time consequences.

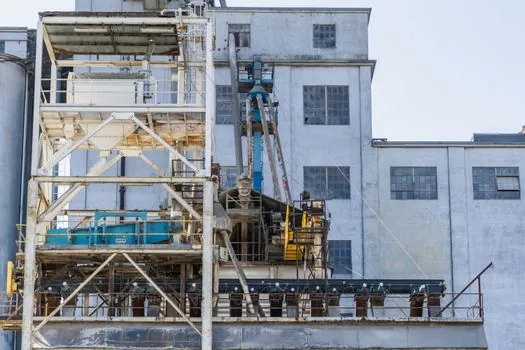

Capacity sizing and horsepower check
The published selection method follows four gates: determine the required capacity in tons or ft³/h, choose the elevator number from the capacity table, list the horsepower and dimensional envelope, and have the manufacturer confirm the final motor and shaft sizing [S1].
For chemical-shipping duty, the capacity should be picked at 110-120% of steady-state design throughput to absorb surge loads from truck or rail unloading, because elevators are throughput-limited at the boot and any short-term peak above the rated CFH degrades the belt and the buckets rapidly.
Horsepower scales with the lift height and the bulk density, and a useful first-pass check is that a 1,800 ft³/h elevator (the top of the Ryson C/Z-configured range) is a different machine entirely from a 300 ft³/h unit, with proportionally larger head, boot, and intermediate casing [S2].
Selection criteria comparison for the main options
The four practical configurations a chemical-shipping specifier compares side by side are: centrifugal belt, centrifugal chain, continuous-discharge belt, and continuous-discharge chain. On the four decision criteria that matter most in a chemical plant, the comparison reads as follows. [S2]
On material suitability, centrifugal belt handles free-flowing granules and prills, continuous belt handles sluggish, friable, or high-lump chemicals, and chain variants add temperature tolerance for hot chemicals and abrasive tolerance for granular fertilizers.
On corrosion resistance, all four are available in 304 or 316 stainless bucket and casing configurations; the belt medium itself remains the limitation, because reinforced rubber or PVC belts cannot match the chemical resistance of a stainless bucket, and a chain elevator with 316 buckets is often the cleanest choice for hot, wet, or chloride-bearing chemicals.
On throughput envelope, centrifugal designs reach the upper end of the capacity tables (Ryson's continuous-discharge C/Z units go to 1,800 ft³/h) [S2], while chain elevators with deeper buckets trade peak CFH for higher allowable bulk density and higher lift per casing section.
On maintenance access, belt elevators allow faster belt replacement but require more frequent tensioning; chain elevators tolerate harsher environments and higher temperatures but require lubrication and periodic chain-pin inspection, and the specifier should weigh mean-time-to-replace against mean-time-between-failures for the specific plant maintenance crew.
Standards, codes, and the spec document to keep on file
IS 7167 (1974) remains the Indian Standard code for selection and use of bucket elevators and is cited across vendor and engineering documents [S4]; for international chemical-plant builds the specifier should additionally cross-reference the relevant local equipment standard, the conveyor safety standard in force in the jurisdiction, and the plant's own hazardous-area classification if the chemicals being elevated are flammable dusts.
Where dust-explosion risk applies, the elevator casing, bearings, and drive must be selected to match the zone classification, and the spec document should explicitly bind the vendor to the zone, the dust group, and the maximum allowable surface temperature.
The IS 7167 framework is process-agnostic and applies to mining, cement, fertilizer, and shipping terminals; for any project that is also governed by an API, ASME, or ISO standard for the adjacent pressure pressure transmitter or industrial valve packages, the elevator spec should be cross-referenced to those documents in the equipment data sheet so that a single mechanical datasheet carries the full compliance trail.
When a bucket elevator is the wrong tool
Bucket elevators are not the right tool for wet, sticky, or slurry-form chemicals, for chemicals that off-gas at boot-section temperatures, or for throughputs below the lower end of the catalog range, where a screw conveyor, an inclined belt, or a pneumatic conveyor is a better fit and lower total cost of ownership. [S2]
For dust-explosible chemicals, the chemical anchor for the elevator casing and the dust-detection instrumentation on the boot and head should be specified together, because a mis-specified dust detector placed downstream of an elevator will see the wrong particle size distribution and miss the actual ignition risk.
The chemical reagent and additive-handling sections of a chemical plant frequently use smaller, sanitary-design bucket elevators, and the food-grade and chemical-grade spec maps diverge sharply: the food-grade path prioritizes wash-down and USDA acceptance, the chemical path prioritizes corrosion resistance and zoning.
For a closer reading on the stainless and sanitary side of the same equipment family, see the Bucket Elevator Selection for Food and Beverage spec map, which covers the 304 vs 316 boundary from the food-side angle.
For dust-detection placement and the spec gates that drive hazardous-area zoning on bulk solids equipment, the Dust Detector Selection for Food Processing spec map is the relevant companion document.
For adjacent materials-handling decisions in the same plant, the Overhead Conveyor Spec Map for Port Logistics covers the horizontal leg that the bucket elevator typically feeds into or receives from, and the two should be sized against each other to avoid creating a boot-section bottleneck.
Final spec to lock: bucket and casing material grade (304 or 316 stainless), discharge style (centrifugal or continuous), volumetric capacity at 100% and 10% lumps, lift height, head-pulley FPM, belt width, and the manufacturer's signed application data sheet covering head-shaft diameter and motor horsepower; without that document, the buyer's mechanical datasheet is incomplete and the equipment will not be released for fabrication.
