Automotive parts logistics, ranging from stamped body panels and aluminum castings to fasteners and plastic trim, almost always lands in the "Granular 1/2" and Under (6" Sieve to 1/2")" C1/2 or D3 size class on the Martin Sprocket elevator code chart, with bulk densities of 35-55 lb/ft3 for steel parts and 25-35 lb/ft3 for aluminum and plastic parts [S2][S6].
The standard Screw Conveyor Corporation pre-selection data sheet asks the buyer to lock in 9 inputs before any model is quoted: material type, density in lb/ft3, capacity in ft3/hr, discharge height, material temperature, moisture %, maximum lump size, % of lumps, and ambient temperature range [S1]. A project engineer who cannot fill those 9 lines on a single page is not yet ready to compare bucket elevator options.
Why automotive parts break the textbook "centrifugal" default
Centrifugal discharge at 350-500 ft/min is the workhorse selection for free-flowing dry granular product above 1 t/m3 bulk density and with lump sizes below 25 mm, per the BEUMER selection matrix mapping its HGBW belt-bucket family to those exact cut-offs [S8].
Most automotive subassemblies, including gears, bearings, painted clips, and glass-filled plastic housings, fail the "free-flowing" assumption once surface finish, oil residue, or nesting is considered. The result is that plants running mixed SKUs shift to continuous-bucket or positive-discharge designs, accepting lower throughput (Universal's U-94ED at 94 ft3/hr vs U2-800ED at 800 ft3/hr) in exchange for gentler discharge [S4]. Where stamping burrs or sharp edges are present, polyethylene or nylon buckets (typically 0.5-0.75 in. wall) replace standard mild steel to cut part damage and noise, with Norway, Euro, or flanged elevator bolts specified to match belt or chain mounting [S5].
Capacity and belt-speed envelope for parts flow
Universal Industries' U-Series data shows 75 BPH (94 ft3/hr, 2.7 m3/hr) for the U-94ED with 3-3/4" x 3" (95 mm x 76 mm) buckets on 4" (102 mm) belting, climbing to 500 BPH (630 ft3/hr, 17 m3/hr) for the U1-630 with 6" x 4" (152 mm x 102 mm) buckets on 6-1/2" (165 mm) belting [S4].
The Chief Industries design guide cross-references bucket pitch of 8.5-10.5 in. (215.9-266.7 mm) against housing widths of 16 in. (406.4 mm) and 48 in. (1219.2 mm) head pulleys, with throughput options of 7,500 / 4,000 / 3,000 / 5,000 BPH matched to belt speed and lift height through 150 ft or beyond 150 ft [S6]. For a tier-1 automotive line producing 60-80 jobs/hour of mixed small parts, the realistic bucket-elevator window is 220-630 ft3/hr, well above the smallest U-94ED but well below the 800 ft3/hr U2-800ED ceiling [S4][S6].
Selection criteria: bucket elevator vs aero-mechanical conveyor
Floveyor's side-by-side comparison rates bucket elevators as "higher risk" on dust, product loss, and explosion/ignition because material is scooped and thrown at speed, while aero-mechanical conveyors are "lower risk" because product moves through an enclosed tube with fewer friction points [S7].
Decision rule for an automotive plant: if the SKU mix includes oily fasteners, painted components, or anything with a flammable-coating residue, a bucket elevator needs an enclosed casing, anti-static belt, and ATEX-rated drive package; otherwise an aero-mechanical conveyor, slower but sealed, often wins on total cost of ownership despite a smaller footprint penalty. The 7 inputs Ryson requires for a clean quote (layout, material specs, drive details, loading arrangement, safety devices, capacity, foundation) apply to either path [S3]. For mixed-size automotive parts, the practical decision matrix looks like this:
- Fragile / coated parts: continuous-bucket, low RPM, plastic or stainless buckets, enclosed casing.<br>- Free-flowing metal blanks: centrifugal, 350-500 ft/min, mild-steel buckets, 220-630 ft3/hr [S4][S8].<br>- Dusty or oily parts: aero-mechanical conveyor, even at higher unit cost, to cut ignition risk [S7].<br>- Mixed small parts at 60-80 jobs/hr: U1-220ED to U1-630 size class with 6" x 4" buckets on 6-1/2" belting [S4].
Integration with line-side controls and safety devices
Bucket elevators driving into a paint shop or near a robotic welding cell must interface with the line PLC for zero-speed switches, belt-misalignment sensors, and bearing-temperature trips; these safety device specifications sit on Ryson's item 5 of the pre-quote checklist [S3].
A missed detail at this stage is the chute angle into the receiving hopper: for stamped parts at 35-45 lb/ft3 bulk density, the receiving chute should hold a 45-60° slide angle, and the discharge hood dimensions must clear the largest lump class (D3 or D7) on the Martin chart to avoid backfeeding [S2][S3]. For plants also running overhead transfer into a sortation buffer, a related spec comparison for overhead conveyor spec map for port logistics outlines similar chain-pitch and drive-package decisions at higher lift heights, useful when the same engineering team has to spec both ends of a parts-handling loop. Where the bucket elevator feeds into a die cell, the upstream choice of die steel (referenced in a tool and die steel selection map) drives whether cast iron or steel chips end up in the bucket, which in turn sets the abrasion-class spec for the bucket material itself.

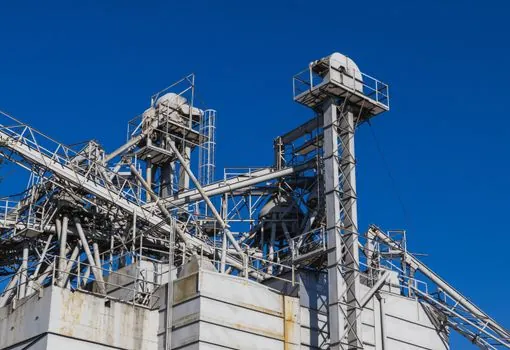

Drive package, foundation, and the items buyers under-spec
Motor horsepower on a 30 ft center-to-center centrifugal unit at 350 ft/min typically lands in the 3-7.5 kW range, with a helical-bevel gearbox in the 15:1 to 25:1 ratio band; Ryson's quote checklist item 3 explicitly captures motor HP, gearbox ratio, and head RPM so the buyer cannot leave these open [S3].
Foundation loads on a 48 in. (1219.2 mm) head pulley with 16 in. (406.4 mm) buckets at 30,000 BPH (816 t/hr) work out to roughly 28,000 lb (762 kg) of bucket load per leg, and the Chief guide lists housing hoods sized 6x4 in. or 8.5x10 in. depending on throughput band [S6]. Two items almost always get under-specified on automotive bids: (a) belt cover compound (RMA Grade II oil-resistant nitrile for oily parts vs RMA Grade I standard), and (b) explosion-vent panel sizing on the leg casing, which is dictated by the dust Kst class of the parts being elevated and must be coordinated with the plant's pressure sensor network that trips the pressure transmitter vent-relief loop. The 9-line Screw Conveyor data sheet forces these into the open only if the buyer fills in moisture %, ambient temperature, and material characteristics rows completely [S1].
Where the spec typically fails in the field
Three failure modes dominate bucket-elevator service calls in automotive plants: belt slip on start-up (drives undersized for the peak-inrush load when a full column of parts is resting on the boot), bucket bolt fatigue (mixed fastener spec - Norway bolt on one leg, hex-head on the other), and discharge hood spillage when the D-class lump size creeps past the rated hood opening [S1][S5].
Specifying the right class up front is cheaper than the retrofit: if the parts line can keep maximum lump size inside C1/2 or D3, off-the-shelf buckets and hoods from the standard tables work; if DX (over 16") appears, the OEM is going to require a custom bucket and the lead time jumps from 4-6 weeks to 12-16 weeks [S2]. For new automotive lines commissioning in 2026, the smart move is to lock the parts-master data sheet (density, lump size, moisture, oil content, temperature) before the industrial valve and flow meter tags on the receiving hoppers are even issued, because the elevator duty cycle and the receiving hopper geometry are coupled.
Trackable signals to watch over the next two quarters: ATEX/IECEx certification uptake on enclosed-casing centrifugal units feeding European paint shops, and 2026-vintage U-Series model refreshes (U-94ED through U2-800ED) with quick-release boot sections that cut changeover time on mixed-model lines [S4][S7].
