Industrial hose reels are storage and dispensing devices grouped by drive mechanism, mounting, and pressure class; current product data (2026-06) shows self-retracting spring reels paired with 10-83 m hose lengths, 1/2"-1" I.D. options, and 20-350 bar pressure ratings [S1].
The specification mix on offer covers marine, fire-protection, washdown, chemical transfer, and food transfer duty, with stainless-steel and polyester-coated carbon-steel frames as the two dominant material paths [S1]. Major OEM build volumes, such as the 80,000+ reels per year shipped from a single 200,000 sq ft US campus, show that custom-to-order is now the norm rather than the exception in this category [S2].
Drive Mechanisms: Manual, Self-Retracting Spring, and Motor-Driven
Manual rewind reels use a hand crank and are the lowest-cost path for short hose runs where automatic retraction is not required; SS3000-series manual reels handle 3/4" or 1" I.D. hose up to 22-83 m, and the design is called out for marine, corrosive, fire-protection, washdown, chemical transfer, and food transfer environments [S1]. Self-retracting spring reels dominate mid-volume fleets because fatigue-resistant steel springs and ratchet-locking drums let the operator pull-and-stop with one hand; the RM-12 family handles 10 m of 1/2" hose at pressure stages of 20, 160, and 350 bar with full-metal double-pedestal arm construction and epoxy powder coat [S1].
Motor-driven reels address long cable or hose runs where spring fatigue would be excessive, with one PoweAMPReel model rated for 45, 55, and 65 m lengths and an operator interface that exposes Reel In, Reel Out, auto/manual select, and emergency stop [S1]. Across the marine and offshore segment, fixed, open, swiveling, wall-mounted, mobile, closed-circuit, and double-axle configurations are the named architecture options on OEM datasheets [S1].
Pressure Classes and Hose I.D. Bands
Pressure band selection is dictated by the upstream system, not the reel: 20 bar covers general washdown and air-water service; 160-280 bar covers high-pressure cleaning, hydrostatic test, and oil-field applications; 350 bar sits at the top of standard hose-reel ratings, with the RM-12 in 1/2" I.D. cited as a representative 350 bar SKU [S1]. The 74300.100 entry pairs 12.7 mm I.D. with a 20 bar ceiling, marking the lower-pressure, lighter-handling corner of the catalog, and is listed for industrial vehicle, building/road construction, manufacturing, mining, and shipping/offshore end uses [S1].
For the broader hose and coupling context, see the pressure transmitter and industrial valve reference pages — the same pressure-rating logic that drives pipe and valve schedules also drives reel pressure class. Where a hose run feeds a metering skid, the reel typically sits upstream of a flow meter or chemical-injection pump, and the pressure drop across the reel drum plus hose must be added to the skid calculation.
Materials, Coatings, and Environmental Ratings
Stainless-steel construction is the default for washdown, chemical transfer, and food transfer where chloride attack and wash-down chemistry attack carbon steel; the SS3000 stainless manual rewind line is the explicit example for marine and corrosive environments [S1]. Carbon steel with marine-atmosphere paint is the standard motor-cable-reel recipe (TRC50, TRC100/150/200, TRC250/300) where structural stiffness matters more than chemical resistance and the reel sits in a sheltered deckhouse [S1].
Enclosed reels (RM-12CLX) wrap the drum in steel plate finished with polyester resin, with a polymer ratchet that lowers noise and a positionable mounting bracket drilled on 220 x 130 mm and 270 x 150 mm patterns — a useful datum for retrofit on existing skids [S1]. For total corrosive isolation, the pressure sensor on the downstream side should be speced to a matching alloy, otherwise a stainless reel feeding a brass instrument port becomes the galvanic weak link.
Mounting and Configuration Options

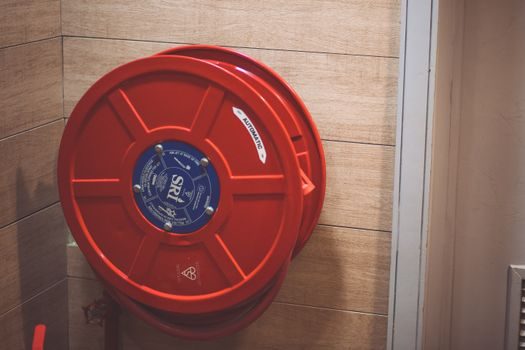

Configuration choice is governed by the operator's reach envelope and the hose route: fixed-base reels anchor to a deck or skid frame; swiveling reels pivot to track a moving nozzle; wall-mounted reels reclaim floor space; mobile reels ride on carts for shop-floor flexibility; and closed-circuit reels fully contain the hose inside a housing for hygienic or aesthetic sites [S1]. Open reels (no housing) are the standard pick for outdoor industrial yards where contamination is not a concern.
On automated plant skids, reel selection often runs parallel to a PLC I/O allocation: spring reels with end-of-travel limit switches feed a digital input, while motor-driven reels accept a start/stop command and a direction bit, with the same control philosophy used for any industrial hose payout system. Double-axle reels split the hose onto two drums to halve the bend radius on long lay-flat runs, which is a common ask on large-diameter fire reels [S1].
Use-Case Map: Marine, Fire, Washdown, Chemical, Food
Marine and offshore reels need polyester or marine-grade paint systems on steel plus sealed bearings, because salt-laden air attacks unprotected shaft hardware within a single lay season [S1]. Fire-protection reels are a high-flow, lay-flat-hose segment where drum diameter (8 ft on the largest custom builds) drives the frame size, and the steel gauge must absorb the surge load of a charged attack line [S2].
Washdown reels in food and beverage plants demand stainless frames, polyester or epoxy finishes that tolerate caustic and chlorine cleaners, and ratchet hardware that does not shed particles into the wash zone. Chemical-transfer reels are specced to the most aggressive media on the skid, which usually means stainless wetted components plus an EPDM or FKM hose liner, and the reel supplier needs to be cross-referenced against the chemical compatibility of the hose assembly. Mining and construction reels trade corrosion resistance for abrasion tolerance, with heavier-gauge steel frames and oversize bearings to absorb vibration and shock.
Sourcing Signals: Custom-Build Cycle, Distribution, and Lead Time
Custom build cycles are now standard: the leading US reel maker produces more than 80,000 reels per year on a 200,000 sq ft manufacturing campus in Westerlo, New York, with most orders shipping within a week of release and oversized custom builds (up to 8 ft drum diameter) scheduled on longer cycles [S2]. Distribution runs through authorized industrial resellers such as mdi (727-835-0674, US), with the stated inventory model "built to order" rather than stocked-to-shelf [S2].
Trackable signals for spec-driven buyers over the next procurement window: (1) watch for 316L stainless replacements of 304 stainless as chloride-resistant washdown becomes the default EU food-grade spec, and (2) watch for spring-cycle ratings to migrate from generic "long life" wording to a stated minimum cycle count on datasheets. For adjacent procurement categories, the pressure reducing valve suppliers sourcing map and the fluoropolymer market 2026 spec-driven sourcing map cover the upstream valve and seal-material decisions that pair with reel selection.
