Mag drill selection is governed by four numeric gates: maximum annular-cutter diameter, depth of cut (the plate thickness you must penetrate), magnet holding force, and motor RPM range, and the tool fails the moment any one of them is mis-sized [S2][S5].
Mag drills differ from handheld and drill-press machines because the base is an electromagnet that locks the tool to a ferrous workpiece, freeing the operator to feed a hollow annular cutter through heavy steel without dislodging the body [S1][S2]. They are the default choice when the workpiece is too large, too heavy, or already erected on site to come to a stationary machine [S4].
Four Selection Gates: Cutter Diameter, Depth, Magnet, and RPM
Maximum hole diameter and depth of cut are the two specs every manufacturer prints on the data sheet, and they move together with machine weight and horsepower [S2][S7]. A small maintenance-shop drill typically covers 12-32 mm annular cutters up to roughly 20 mm plate thickness, which covers the majority of structural and truck-frame work [S3].
Magnet adhesion is the safety gate, not a marketing figure, because a mag drill that breaks adhesion mid-cut throws a spinning annular cutter. Operators report that magnet quality is the single differentiator between budget and mid-range units at the same cutter capacity [S3]. Pilot tools such as the Milwaukee 1-5/8" electromagnetic drill are sized for this 12-32 mm window, and ToolsToday's August 2026 decision guide reiterates that the magnet is the only thing keeping the cutter on the steel [S3][S4].
Annular Cutters, HSS vs Carbide, and Why RPM Dictates Choice
Mag drills use annular cutters rather than solid twist drills, so only the outer perimeter contacts the steel, which drops the horsepower required for a given diameter [S2]. HSS annular cutters are designed to run below 450 RPM, while carbide-tipped cutters need speeds above 500 RPM to keep the edge cutting cleanly, and most single-speed mag drills are tuned for the HSS window [S2].
Variable-speed or dual-speed motors (and in some heavy-duty models, four-speed gearboxes such as the Jancy Max 4x4) open the carbide window, and buyers who routinely switch between thin sheet and thick plate should treat electronic or multi-speed control as a hard requirement, not an upgrade [S2][S3]. For a broader view of how rotational speed and tool geometry interact with workpiece material, the impact drill selection guide covers the handheld cousin, where high RPM and impact mode also trade off against bit life.
Manual Feed vs Auto Feed and Low-Profile Variants
Manual-feed mag drills are the default and the cheapest, requiring the operator to hand-wheel the cutter through the steel [S2]. Auto-feed units carry a load-sensing system that adjusts feed rate to the cutter load, lengthens cutter life, and lets one operator run several machines in parallel on a production floor [S2].
For truck frames, I-beams, and other tight vertical or overhead envelopes, ultra-low-profile mag drills (and dedicated models such as the Hougen HMD130 or Fein JMC Magforce 90) shorten the head height enough to clear obstacles that block a standard machine [S2]. Hydraulic-powered mag drills cover the niche of underwater and spark-free environments where an electric motor and its commutator are unacceptable [S2].
When a Mag Drill Is the Wrong Tool
A mag drill is the wrong tool on non-ferrous plate (aluminum, stainless in some grades, copper) because the electromagnet cannot develop holding force, and on painted, oily, or rough surfaces where the air gap collapses the magnetic circuit [S4]. It is also the wrong tool for small parts, high-repeatability production runs under 12 mm, and any workpiece that can be carried to a bench drill press, where a stationary column delivers more accurate hole location and finer size control [S1][S4].
Field-fabrication crews who already work at height with cranes and lifts should think of the mag drill as part of the same hoisting and access ecosystem, and the aerial work platform installation checklist covers the access side of that workflow. For drill-press comparison in the shop, ToolsToday frames the cutoff as: if the workpiece cannot conveniently come to the machine, the mag drill wins [S4].
Decision Matrix: Three Tiers, Four Numeric Criteria
Entry-level corded single-speed units in the 1100-1200 W class deliver roughly 12-32 mm HSS cutter capacity up to about 20 mm plate, fit maintenance and light fabrication, and are the most common build on the market [S2][S3]. Mid-range variable-speed or dual-speed machines add 450/500 RPM crossover so carbide cutters can be used without burning the edge, which is the minimum for shops mixing thin and thick stock [S2][S3].

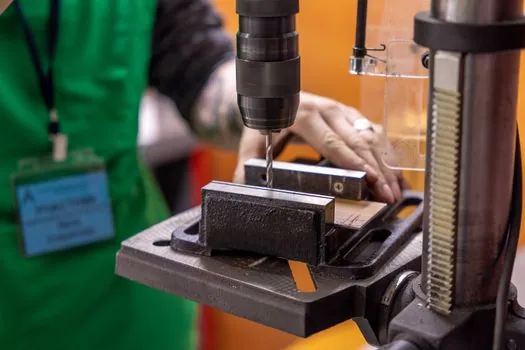

Heavy-duty auto-feed and low-profile hydraulic units add load-sensing feed, four-speed gearboxes, and reduced head height, and are justified only when production volume, overhead drilling, or spark-free duty make the extra cost recoverable [S2]. Across all three tiers, the four numeric gates stay the same: cutter diameter in mm, depth of cut equal to plate thickness plus pilot travel, magnet holding force in kg or lb, and an RPM band that covers either HSS or HSS+carbide. Drill presses win on small-part accuracy and sub-12 mm holes; mag drills win on-site on heavy steel, exactly the inverse of the rule of thumb above [S1][S4].
Accessories That Change the Machine's Working Envelope
Twist-drill adapters let a mag drill run jobber drills from 1/2" diameter down, which matters for tapping-size and pilot holes the annular cutter cannot reach [S2]. Countersink kits flatten the rim of a finished hole for socket-head cap screws without a tool change, and tapping attachments extend the machine into a geared tapping unit, typically up to 3/4" with most units and up to 1-1/8" on the heavier chassis [S2].
Chain-mount kits clamp the mag drill to pipe so the cutter stays on centerline, with minimum and maximum pipe diameters usually around 3" and 12" respectively on the standard kit, and larger diameters available on extended chain sets [S2]. For buyers weighing whether to step up from a mag drill to a more automated drilling cell, the excavator installation guide shows the same logic of adding hydraulic and quick-hitch accessories to extend a machine's working envelope rather than replacing it.
Trackable signals for the next buying cycle: the spread of four-speed gearboxes below the 25 kg class, and the number of mid-range models that ship with electronic load readout as standard, both of which would shift the entry-level price/performance line drawn above.
