A laser distance meter (LDM) is installed correctly when its optical path, mounting datum, and electrical interface all satisfy one matched set of mechanical and signal requirements — and the most common field failure is not the sensor but a reflector, datum, or wiring error [S3].
Industrial LDMs divide into two installation regimes: portable point-and-shoot tools (Ryobi RBLDM20 at 20 m [S1], AEG LMG 50 at 50 m [S2], Fluke 417D at 40 m / 131 ft [S5]) and fixed-mount closed-loop sensors (TR-Electronic LE25 at 25 m with 0.1 mm resolution [S3]). The 50 m portable LMG 50, the 25 m fixed LE25, and the 40 m Fluke 417D set a useful bracket for indoor handheld work, mid-range industrial optical ranging, and rugged outdoor use respectively [S1][S2][S3][S5].
Stage 1 — Target and Reflector Geometry
The fixed-mount LE25 measures non-contact distances up to 25 m (max) from 0 m (min) with 0.1 mm precision, and TR-Electronic states its laser measuring systems deliver absolute, wear-free measurement up to 240 m, output via SSI, field bus, or Industrial Ethernet [S3]. That long-range capability depends on a matched reflector at the target end; the optical bench is built from a laser source, a light collector, electronic evaluation, and a data interface plus the reflector [S3].
Reflector choice is the first installation decision: specify a corner-cube retroreflector for ranges below ~50 m to keep the return spot compact, and a large-aperture reflective foil or a dedicated long-range reflector head when working past 100 m. The TR-Electronic reference measuring section linearises systems up to 240 m against a reference, and on that bench the family achieves ±1 mm absolute repeatability at high-rack-warehouse travel speeds [S3]. Treat that ±1 mm number as the achievable upper bound only when the reflector is the OEM-specified type, mounted on a vibration-isolated bracket, and the beam path is clean. If the bracket flexes under load, the effective repeatability degrades faster than the rated range does.
Stage 2 — Mounting, Datum, and Beam Clearance
Handheld LDMs are usually held against a back reference (rear edge of the tool) or extended against a corner pin, and the AEG LMG 50 supports exactly three reference points — back, front, or back-end pin — for that reason [S2]. For fixed sensors, the datum must be a machined face referenced to the machine's own coordinate frame; never clamp the LDM to a structural beam that moves relative to the target under thermal load.
Beam clearance is the single most-overlooked installation rule. A 0.1 mm precision LDM [S3] still gives garbage if the beam grazes a fixture, a cable tray, or a steam plume within 200 mm of the target. Walk the beam path with a flashlight before powering the laser; any object that breaks the line will break the measurement. For outdoor fixed installs, also verify the window material — most LDMs are specified for diffuse-reflective targets but degrade on high-gloss painted metal at oblique angles, where the specular return misses the collector aperture. Indoor-rated units such as the RYOBI RBLDM20 are designed for room-dimensioning use, with a 20 m range, one-button operation, and an automatic 2-minute switch-off to preserve the 2 × AAA cells [S1].
Stage 3 — Environmental Rating and Power
Ingress protection is the first environment filter: the AEG LMG 50 carries IP54 water and dust protection, and the Fluke 417D is IP54 rated and 1-metre drop tested, so both can survive dusty or light-rain exterior work [S2][S5]. The Ryobi RBLDM20, by contrast, is described for home/indoor use with a backlit display and a low-battery indicator, not a published IP rating [S1] — keep it off the construction-site floor.

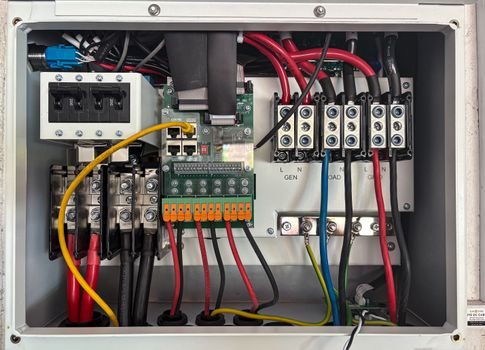

Power and signal wiring on fixed LDMs must follow the manufacturer's EMC guidance. Industrial units such as the LE25 output via SSI, field-bus, or Industrial Ethernet, and each interface has its own cable type, shield-grounding rule, and maximum run length; mixing them — for example, terminating an SSI pair with PROFIBUS-style connectors — is a known way to lose measurement stability without losing the link light [S3]. For battery-powered handheld units, the practical lesson from the RBLDM20 datasheet is that an automatic 2-minute switch-off is what saves a service call: 2 × AAA cells will otherwise drain in a day of intermittent jobsite use [S1].
Portable vs Fixed: A Decision Comparison
Three decision criteria separate the categories. Range: portable LDMs cap at 40–50 m for typical jobsite models (Fluke 417D 40 m [S5], AEG LMG 50 50 m [S2], Ryobi RBLDM20 20 m [S1]); fixed sensors such as the LE25 are specified to 25 m on the datasheet and linearised to 240 m on the OEM reference bench [S3]. Precision: portable tools are typically ±1.5–3.0 mm; the LE25 quotes 0.1 mm resolution with ±1 mm absolute repeatability achievable in controlled conditions [S3]. Interface: portable units log to internal memory (the LMG 50 holds the last 10 measurements [S2]) or export via Bluetooth on premium models; fixed LDMs integrate to PLCs via SSI, PROFIBUS, PROFINET, or Industrial Ethernet [S3].
Choose portable for layout, estimating, and verification work where a human operator can correct for beam obstruction. Choose fixed for closed-loop control, high-rack warehouse positioning, and any application where the measurement must repeat unattended at production-line cadence. The TI reference design library for laser distance meters confirms the architectural split: a Time-of-Flight front end, an analog processing chain, and a microcontroller with on-chip timing drive both portable and fixed variants, but the system partitioning changes sharply with the chosen interface [S4].
Acceptance Test and Common Failure Modes
A short acceptance checklist catches most installation defects before they become warranty claims. Verify (1) the datum face: measure a known artefact of 1.000 m, 5.000 m, and 10.000 m with the LDM and compare against a calibrated reference — the deviation should be inside the datasheet precision figure (for the LE25, repeatability ±1 mm on the OEM linearised bench) [S3]; (2) the reflector: walk off the line by 1° increments and confirm the reading does not drop out until at least the published alignment tolerance; (3) the interface: read back 1000 consecutive samples and confirm the spread is within the published repeatability, with no missing packets on the field-bus or Ethernet link [S3].
Failure-mode mapping: a reading that drifts slowly with daytime temperature usually points to bracket expansion, not a sensor defect; a reading that drops out intermittently under vibration almost always points to a loose reflector mount or a flexing cable; a reading that is stable in the lab and noisy on the machine floor usually points to electrical noise on the supply rail — fit a dedicated 24 V DC supply and confirm shield earthing per the OEM drawing. The handheld segment has its own pattern: a Fluke 417D that will not power up after a drop is usually a battery-cap displacement rather than a PCB fault, and the IP54 sealing is only effective when the cap is fully latched [S5]. Premium handheld units such as the Disto D5 with its 660 ft range, digital point-finder, Bluetooth, and USB-C charging illustrate the high end of the portable segment where the same installation rules apply, just with tighter optical alignment [S6].
For related guidance on building-automation sensor selection, the FACP installation guide lays out the matching spec-map, wiring, and acceptance discipline that translates directly to fixed LDM commissioning. For cross-technology context on related distance-rangefinding hardware, see the laser distance sensor and laser level encyclopedia entries.
Spec-level background on the components involved: laser distance meter.
