Marine slewing drive selection runs on three hard gates: salt-spray corrosion resistance, simultaneous axial-radial-moment load capacity (commonly 8,000-50,000+ Nm output torque in 7-25 inch OD units), and seal integrity rated at IP65 minimum, with worm-gear self-locking preferred for crane safety stops [S1][S2][S3].
Scope covers ship-to-shore container cranes, bulk material ship loaders, deck cranes, offshore wind nacelle yaw, and port-side radar/antenna pedestals. Slewing drives in this segment integrate a slewing bearing, worm or planetary reducer, and housing in a single unit sized to absorb heeling moments and wave-induced shock loads [S3][S4].
Why Marine Duty Is a Different Spec Class
Port and marine service is the segment where corrosion resistance and lubrication longevity override raw torque on the selection tree, because salt atmosphere destroys unprotected bearing raceways within months, not years [S2]. A medium-frame 7-15 inch (180-380 mm) OD unit, with 8,000-50,000 Nm output torque and 20,000-100,000 Nm holding torque, is the typical starting point for ship-to-shore crane slew and deck crane boom rotation [S1][S3].
Material baseline in this segment is medium-carbon alloy steel, commonly 42CrMo4, with induction-hardened raceways at HRC 55-62 to resist rolling contact fatigue under cyclic wave loading [S2]. Stainless fasteners, hot-dip galvanised housings, or epoxy-coated exterior surfaces are the minimum differentiation between a marine-rated slewing drive and a generic construction-grade unit. For the broader slewing ring bearing architecture that houses the marine slew, lip seals on both faces and grease purge ports are mandatory, not optional.
Load Envelope: Axial, Radial, and Moment Together
Every marine slew must be sized for three concurrent load vectors, not one. The unit has to carry the boom dead-weight as a vertical axial load, the side-pull of wind on the structure as a radial load, and the overturning moment from an offset lifted load plus ship roll, all at the same instant [S3][S4].
Selection starts with three numbers from the crane maker: maximum lifting capacity, maximum boom length, and ship roll angle (commonly +/-5 deg for harbor craft, up to +/-15 deg for offshore supply). The user then either passes the maximum overturning moment directly to the slew maker, or calculates it as capacity x radius and adds a dynamic amplification factor of 1.25-1.5 for wave-induced shock [S4]. Holding torque, not output torque, is the spec that keeps the load from drifting when the motor is de-energised; worm gearing provides that self-locking property for free, planetary gearing does not [S3].
Sealing, Lubrication, and IP Rating Logic
IP65 is the realistic minimum for sheltered-deck service, IP66 or IP67 is standard for open-deck and splash-zone service, and IP67/IP68 with submergence rating is required for equipment that may be submerged in a green-sea event [S3]. Lip seals on both bearing faces, plus a grease nipple and a dedicated drain plug, let the unit be re-lubricated without disassembly, which is the single biggest determinant of service interval on a marine slew.
Stainless steel seal carriers, nitrile or fluoroelastomer (FKM) seal lips, and cathodic protection of the housing extend grease life from a typical 1,000 hours inland to 3,000-5,000 hours in marine service, when paired with marine-grade EP2 lithium-complex grease. For an electric or hydraulic drive motor on the input side, the motor adapter must be sealed to the same IP class or the whole assembly downgrades, regardless of bearing seal quality.
Worm vs Planetary: Which Topology for the Boat
Worm-gear slewing drives dominate marine crane applications because the self-locking property prevents boom back-driving when the motor is off, a non-negotiable safety requirement under most flag-state crane codes [S3]. Trade-off: worm drives run at 30:1 to 150:1 ratios, with output speeds typically under 1 rpm, and they lose 30-40% of input power as heat compared to planetary units [S1][S3].
Planetary slew drives win on efficiency, typically above 90%, and on impact survival, which is why they appear on deck machinery with high cyclic shock, like active heave-compensated cranes on offshore vessels. Dual-worm units split between worm and planetary: dual-worm gives extra rigidity and precision for heavy-duty applications where backlash under moment reversal must stay below 0.1 deg, and costs roughly 50-80% more than a single-worm equivalent in the same frame size [S3][S4]. For deeper comparison logic on industrial slew topology, see this slewing drive selection walkthrough for material handling, which lines up the same worm-vs-planetary trade against a non-marine duty cycle.
Size Class Mapping for Marine Equipment

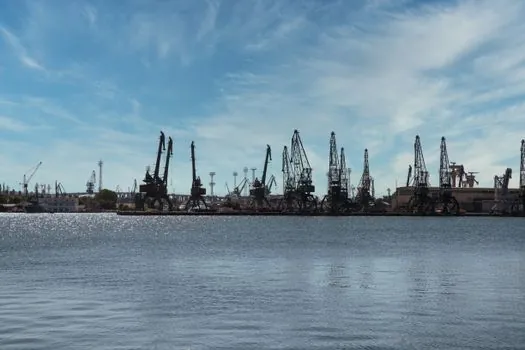

Small 3-7 inch (75-180 mm) slew drives, 1,000-8,000 Nm output, suit marine antennas, small radar pedestals, and helm-controlled searchlight platforms where the load is a few hundred kilograms and precision matters more than moment capacity [S1]. Medium 7-15 inch (180-380 mm) units, 8,000-50,000 Nm output, are the workhorses for ship-to-shore container crane slews, mobile harbor crane booms, and most offshore supply vessel deck cranes up to 30 t SWL [S1][S3].
Heavy 15-25 inch (380-700 mm) and above slew drives, 50,000-150,000+ Nm output, are specified for shipyard gantry cranes, large bulk-material ship loaders, and offshore wind turbine yaw drives where the moment load from a 100+ m boom is the design driver [S1][S6]. Above 25 inch (700 mm) OD, fabricators typically move to a custom slewing ring bearing without an integrated gearbox, because no off-the-shelf slew drive houses that geometry [S2].
Standards and Class Society Hooks
Marine slewing drives fall under several overlapping rule sets. Lifting-appliance rules from IACS member societies (LR, DNV, ABS, BV, CCS) all require proof-load testing at 1.25x SWL, emergency-stop holding on the slew axis, and a documented L10 bearing life calculation, commonly 20,000-50,000 hours for shipboard service [S2][S5]. Material traceability to EN 10025 or equivalent is required for structural rings on classed vessels.
For explosive-atmosphere zones, such as fuel-barge or LNG tender service, the drive motor and any junction enclosures must carry ATEX or IECEx marking appropriate to the zone, with the slew drive itself typically excluded because it is a passive mechanical assembly. For corrosion, ISO 12944 paint-system selection (C4 for coastal, C5-M for offshore) is applied to housing exteriors, while internal bearing surfaces rely on grease film and seal design rather than coating [S3][S5].
Common Failure Modes and Selection Traps
The three failure modes that show up repeatedly in marine slew returns are: seal failure allowing salt-water ingress, grease wash-out through inadequate seal lip geometry, and white-etch cracking on raceways from under-rated moment load. A slew sized only on output torque, with the moment load treated as secondary, is the single most common specification error in this segment, and it shows up as premature spalling within the first 2-3 years [S2][S5].
Second trap: specifying IP65 on the slew drive and IP54 on the motor adapter. The chain drops to the weaker link, and salt mist kills the motor bearings first. Third trap: ignoring backlash budget. For crane duty, total slew-train backlash under 0.2 deg is commonly required for accurate container placement, which pushes selection toward dual-worm or precision-ground worm gearing rather than the cheapest single-worm unit [S3][S4].
Selection Checklist for Procurement
Use this five-line spec block to keep marine slew RFQs comparable across vendors. Frame size: OD in mm or inch designation, with the worm ratio stated alongside. Loads: maximum axial, maximum radial, maximum overturning moment, each with dynamic factor. Holding torque: minimum value at static lock, with self-locking requirement stated. Sealing: IP class, seal material, grease spec and re-lube interval. Class: IACS society, proof-load factor, and L10 hours target. [S1]
Round out the spec with: motor type and voltage or hydraulic pressure, mounting interface (flange vs end-face), ambient temperature range (commonly -20 to +55 deg C for marine), and salt-spray test requirement (ASTM B117, 240 or 480 hours). Vendors that cannot answer all five blocks in writing should be deprioritised in favour of fabricators with documented marine-crane references [S4][S5].
Comparison: Worm vs Planetary for Marine Crane Duty
Decision matrix, three rows that matter for the boat. Holding torque without brake: worm gear, yes (self-locking), planetary, no (requires external brake). Efficiency at 1 rpm: worm gear, 60-70%, planetary, 90%+. Impact survival under wave shock: worm gear, moderate (bronze wheel absorbs shock), planetary, high (hardened steel cuts tolerate shock). Marine crane and deck machinery applications therefore split roughly 70/30 in favour of worm gear, with planetary winning only where active heave compensation or continuous-rotation duty overrides the safety-lock requirement [S1][S3][S4].
For an adjacent decision tree on the same gear topology in a non-marine segment, the mining slewing drive selection breakdown for 2026 covers the same worm-vs-planetary axes against shock and dust exposure rather than salt spray. A broader process-engineering view of slewing topology across packaging and material handling sits in this slewing drive selection guide for packaging lines.
Trackable signal: IACS member societies are incrementally tightening L10 life expectations on classed crane slew bearings, with 30,000-hour L10 becoming the de facto procurement norm in 2026 RFQs versus the 20,000-hour baseline common through 2023.
