An overhead bridge crane (OBC) is a top-running or under-running hoist assembly riding on a pair of parallel runway beams, with a bridge girder spanning the bay and a trolley traversing the girder to position the hook in X-Y-Z [S4].
Typical industrial units cover 1 to 500 ton SWL with spans from ~5 m to ~40 m, and FEM/CMAA duty classifications from Class A (standby/infrequent) up to Class F (continuous severe service), which is the first spec any buyer has to lock before quoting a runway [S2].
Where the Overhead Bridge Crane Earns Its Place
The OBC's core advantage is high hook-approach from above combined with full bay coverage, which is why it dominates heavy-machining bays, steel mills, and paper-machine rooms where a floor-level crane cannot reach [S2].
Because the load path travels through the runway rails into the building columns rather than the floor, the crane does not consume floor area, and a single OBC can service an entire workshop footprint including the [gantry crane](https://sourcebyspec.com/encyclopedia/gantry-crane.html) bay it shares when paired with a runway extension.
Lifting efficiency is well documented: anti-swing LQR and sliding-mode control schemes on underactuated OBC systems are mature enough to be cited as standard literature, with PDE models of bridge-beam and trolley coupling now driving exponential-stability vibration controllers [S3]. A typical 100 m rail-handling wireless-synchronized twin-OBC rig exists in field service, demonstrating that very long spans are not theoretical [S2].
Cost, Structure, and Civil Penalties
An OBC forces capital into three places the buyer cannot avoid: the runway steel, the building column reinforcement, and the electrical conductor bar or festoon system along the runway [S2].
Runway alignment tolerance is the silent killer on retrofits — even 3 mm of lateral drift across a 30 m span shows up as trolley skew, wheel flange wear, and end-truck bearing failures within the first 12 months. New builds should specify a CMAA 70/74 runway tolerance and verify it with a laser alignment survey before commissioning, not after.
Compare three options on a 20 t, 25 m span, Class C service duty: an OBC needs reinforced columns and a ~40-50 t runway steel package, a rubber-tyred [mobile crane](https://sourcebyspec.com/encyclopedia/mobile-crane.html) needs none of that but needs operator certification and ground-bearing verification per lift, and a full [gantry crane](https://sourcebyspec.com/encyclopedia/gantry-crane.html) sits between the two on cost while losing the OBC's ceiling-clearance benefit. For a related equipment comparison on lifting-class accessories, see this load cell buying guide for the weighing module that usually pairs with the hoist.

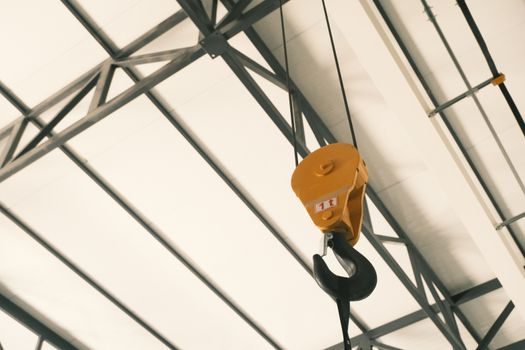

Operating Constraints Engineers Hit in Year One
Swing control remains the dominant control-engineering pain point: an OBC is an underactuated system (more DOF than actuators) and payload swing is governed by trolley acceleration profile, not by the operator's skill alone [S3].
Anti-swing is now solved at three layers — input shaping on the VFD, sliding-mode state feedback on the trolley, and genetic-algorithm-tuned LQR for nonlinear payloads — and the literature treats the LQR-on-GA approach as a baseline benchmark [S2].
For a buyer's purposes, the constraint is simpler: any new Class D or higher OBC should ship with a documented anti-swing algorithm, variable-frequency drives on both long and cross travel, and a [crane scale](https://sourcebyspec.com/encyclopedia/crane-scale.html) interface hard-wired into the hoist brake circuit so overload trips before slack-rope damage occurs.
Comparison: OBC vs Gantry vs Mobile vs Crawler
Four decision criteria separate the OBC from its peers: bay coverage, floor load, capital tied to civil works, and redeployment flexibility [S2].
On coverage the OBC and a full [gantry crane](https://sourcebyspec.com/encyclopedia/gantry-crane.html) tie, both running on rails across the full span. A [mobile crane](https://sourcebyspec.com/encyclopedia/mobile-crane.html) covers any ground it can drive on, but each lift needs re-rigging, outrigger pads, and a lift-plan sign-off. A [crawler crane](https://sourcebyspec.com/encyclopedia/crawler-crane.html) trades setup time for ground pressure as low as ~10-12 psi on extended tracks, which is the lowest of the four and is the reason crawlers dominate soft-ground site lifts.
On floor load: the OBC loads the columns and runway only, the gantry loads the floor through its rails, the mobile loads the ground only at outrigger pads (high point pressure), the crawler distributes through long tracks. On redeployment: the OBC and the gantry are essentially permanent, the mobile and crawler can be demobilised overnight.

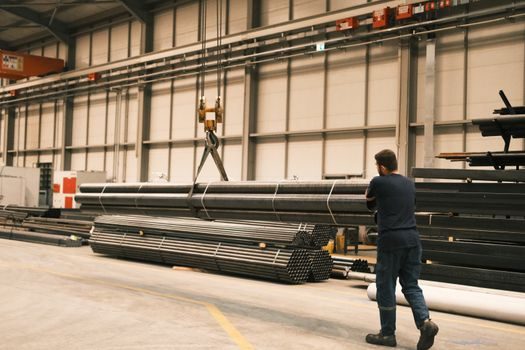

Who Should Specify One — and Who Should Walk Away
An OBC is the right answer for any facility that lifts 5 t or more more than 10 times per shift across a fixed footprint — heavy fabrication, machine shops, steel service centers, paper and converting lines, and any bay with overhead obstructions that a [gantry crane](https://sourcebyspec.com/encyclopedia/gantry-crane.html) would clash with [S2].
It is the wrong answer for low-duty cycle shops (under 5 lifts/shift, under 3 t), for leased warehouses where the landlord will not approve runway tie-backs, and for any site that needs the crane at a different location in 12 months. A rented [mobile crane](https://sourcebyspec.com/encyclopedia/mobile-crane.html) by the day is cheaper than a Class A OBC amortised over a single project.
Standards, Sourcing, and What to Lock Before Signing
Three documents govern almost every OBC purchase: FEM 1.001 / 9.341 for European duty classification, CMAA 70 / 74 for North American specification, and ASME B30.2 for overhead and gantry cranes (overhead hoists are B30.16) — the buyer should require all three named in the MTO before PO release. [S2]
Anti-swing and vibration-control research is converging on PDE-based beam-trolley coupling models that yield exponential stability of the closed-loop system, which is now the technical benchmark academic suppliers must answer to [S3].
The next node to track is the IEC 60204-32 alignment with ISO 13849-1 PL=d on hoist motion — expect European OBC builders to demand category-3 safety contactors and a dual-channel hoist limit as standard before 2027. Related cross-equipment selection logic lives in the gantry crane types and classifications spec map.
