Engineered overhead conveyor lines in 2026 typically land at USD 1,500-6,000 per metre fully installed for automotive paint-shop and meat/poultry stainless systems, while light-duty X-348/X-458 chain-only retrofits sit in the USD 80-600 per metre band before drives and controls [S5].
The North American C-250 line by Bridgeveyor remains the reference stainless steel overhead platform for food, paint and wash-down duty, with Eton Systems citing 5,000+ Lean unit-production installations worldwide as the high-end benchmark for intelligent overhead systems [S2][S3]. Spanish fabricator JOSE BERNAD ships a double-rail curved track with stainless steel screws and saddles for food-grade networks [S1].
Cost Bands by Conveyor Class
Overhead conveyors split into three procurement tiers, each with a different cost-per-metre shape. Light-duty enclosed-track (X-348, X-458) for garment, parcel and light assembly typically lands at USD 80-300 per metre for chain-and-trolley only, with power-and-free (PDump) at USD 200-600 per metre for the track package [S5].
Mid-range monorail and power-and-free for general manufacturing (auto sub-assembly, appliance, e-commerce) typically falls in the USD 400-1,500 per metre band for chain, trolley, drives and basic festoon. Heavy-duty paint-shop and electrophoretic-coat (e-coat) installations are engineered systems where the body carrier, hoist, inversion mechanisms and drive stations dominate; the 1984 US4512869A patent for e-coat body conveyors is still cited as a baseline for inverted-skid geometry on automotive paint lines [S4].
Stainless food-grade overhead (Bridgeveyor C-250 type) with sanitary hangers, wash-down drives and USDA-compatible finishes is the premium tier at USD 2,000-6,000 per metre installed, reflecting 304/316 stainless content and the higher fabrication labour share [S2].
The Five Cost Levers That Move the Number
Chain and trolley specification is the dominant cost lever: moving from X-348 (3/4 in pitch, ~113 kg per metre capacity) to X-678 (1-1/4 in pitch, ~408 kg per metre capacity) roughly doubles the chain material cost per metre [S5]. Drive-station sizing (kW, reducer, brake) scales with total moving load and trolley pitch, and a 7.5 kW drive package typically adds USD 8,000-18,000 to the line cost before controls.
Track material is the second lever: hot-dip galvanised mild steel suits dry assembly, but wash-down food lines require 304 stainless (1.5-2x cost) or 316 stainless (2.2-3x cost) for chloride exposure. JOSE BERNAD's triple-turnout with stainless screws and saddles is a typical example of the corrosion-package premium applied to the route-change hardware [S1]. Curved track (5, 7.5, 10 degree sections), turnouts and elevators add USD 1,500-12,000 each depending on radius and material.
Controls and electrification form the third lever: a basic VFD with photo-eye zoning adds USD 4,000-9,000 per drive, while a full Eton-style unit-production monitoring and overhead conveyor link with intelligent routing is a multi-engineer integration that pushes installed costs above the USD 4,000/metre mark [S3]. A fourth lever is installation labour, which in 2026 typically runs USD 75-140 per hour for industrial mechanical erectors in North America and EUR 55-95 in Western Europe. A fifth, often forgotten, is freight on the chain reels - a 250 m reel of X-458 chain weighs roughly 1,800-2,200 kg and incurs meaningful Class-70 truck freight.
Standards That Pin the Specification
CEMA 601-1995 (PDF Version 2003) is the governing Conveyor Equipment Manufacturers Association standard for overhead trolley chain conveyors, covering X-348, X-458, X-678 and X-1590 chain designations, trolley pitch, allowable wear and lubrication intervals [S5].
For automotive paint lines, e-coat carrier geometry is constrained by tank dimensions and inversion sequences, and the US4512869A patent is a baseline reference for the body carrier usable in an electrophoretic paint line installation [S4]. For food-grade wash-down, the relevant references are USDA-FSIS sanitation requirements and 3-A sanitary standards for trolley and hanger contact surfaces, though these are typically cited by the fabricator (Bridgeveyor type) rather than selected by the buyer.
Selection: Who It's For, Who It Isn't
Overhead conveyors are the right answer when loads are unit-form (skids, garment hangers, body shells, dressed poultry) and floor space must remain clear for takt flow, AGV routing, or personnel. The Eton overhead systems worldwide installed base proves the case for garment and sewn-products unit production where the suspended carrier is also the work-in-process holder [S3].
Overhead is the wrong answer when loads are bulk (grain, plastic pellets, ore), when conveyance runs are mostly horizontal and straight (a belt conveyor or chain conveyor is cheaper per metre), or when the line must service ergonomic workstations at varied heights - a scissor-lift or linear guide Cartesian is more flexible.
For tier-1 automotive paint shops the overhead bridge crane comparison is sometimes raised, but a bridge crane is a workstation tool, not a continuous carrier - they coexist in body shops rather than substitute for one another.

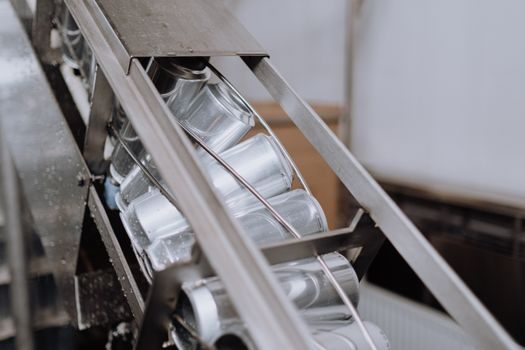

Comparison of the Three Main Overhead Types
Three overhead architectures dominate 2026 RFQs. Enclosed-track (X-348/X-458) is the low-cost option for loads up to ~100 kg per trolley, with simple drives, but limited to straight-and-curved runs without accumulation. Power-and-free (PDump) adds a free rail above the powered chain, enabling accumulation, in-line storage and asynchronous transfer at the cost of roughly 1.5-2x the chain-and-track spend [S5].
Monorail heavy-duty (X-678, X-1590) targets paint shops and e-coat with loads of 250-1,500 kg per carrier, inversion-capable geometry and engineered drive stations; per-metre costs are higher, but the carrier cost dominates the bill of materials. For decision-making on which to specify, four criteria separate them cleanly: per-trolley load capacity (113 kg vs 250 kg vs 1,500 kg), accumulation capability (none vs full vs zone-limited), curve radius (610 mm vs 1,200 mm vs 2,500 mm minimum), and typical per-metre installed cost in 2026 (USD 80-300 vs USD 200-600 vs USD 1,500-6,000).
Real Use Cases in 2026 RFQs
Three applications drive most 2026 overhead conveyor inquiries. Meat and poultry processors specify stainless C-250-class systems with 316 hardware in wash-down zones, justified by USDA-FSIS cleanability and the 15-25 year service life of properly specified stainless chain [S2]. Automotive OEM and tier-1 paint shops specify heavy-duty monorail with e-coat-capable carriers, with 2026 capex per metre installed in the USD 3,000-6,000 range for greenfield lines.
Garment and sewn-products manufacturers specify Eton-style overhead systems worldwide, where the carrier doubles as the WIP holder and the 5,000+ installation cited base is the procurement justification for the per-station intelligent monitoring premium [S3]. E-commerce fulfilment rarely uses overhead because the carton and tote dimensions favour belt conveyor and sortation; the exception is hanging-garment returns processing, where double-rail curved track with stainless hardware (the JOSE BERNAD triple-turnout pattern) is typical [S1].

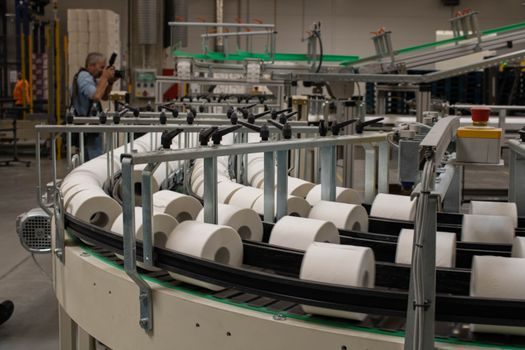

Limitations, Failure Modes and Sourcing Reality
Overhead systems fail in three predictable ways: trolley-wheel wear past CEMA 601-1995 limits, chain elongation beyond the 3% replacement threshold, and corrosion pitting at stainless weld zones in chloride wash-down [S5]. Specify the trolley and chain replacement intervals in the original RFQ, not as a post-installation surprise.
Sourcing reality in 2026: chain stock at US distributors is short for X-348 and X-458 (4-8 week lead time for full reels), while X-678 and X-1590 typically run 10-16 weeks ex-fabricator. European fabricators (JOSE BERNAD type) offer competitive lead times on stainless track hardware and turnouts but at a 15-30% price premium over North American equivalents [S1]. Bridgeveyor holds the North American C-250 reference position for stainless food-grade systems [S2].
A practical 2026 sourcing move: price the line as four separate RFQ packages - chain and trolleys, track and turnouts, drive stations, controls - and award at minimum two of those to different vendors. This breaks the single-supplier lock-in that drives 20-40% cost overruns on engineered overhead systems, and it gives the buyer a parallel [roller conveyor](/encyclopedia/roller-conveyor.html) benchmark for the floor-level sections where the architecture choice is genuinely close. A buyer comparing total installed cost per metre against alternative bucket elevator systems for similar throughput will usually find overhead wins on ergonomic and floor-space grounds even where per-metre cost is higher.
Track the 2026 CEMA 601 revision status (last PDF version 2003) and the next North American fabricator capacity announcement from Bridgeveyor or Eton; either will shift the 2027 RFQ baseline by a measurable band.
