Pneumatic valve actuators in 2026 span four mechanism families and two control modes, with the surveyed product envelope running from 1 Nm on compact rack-and-pinion units up to 678,000 Nm on heavy Scotch-yoke models across a working supply band of 1-8 bar [S1][S7].
The two dominant rotary designs are rack-and-pinion and Scotch-yoke, paired with either double-acting or spring-return control; the two linear designs are diaphragm (rolling diaphragm) and linear piston [S2][S3]. For a working definition of the air-powered drive itself, the pneumatic actuator encyclopedia page covers the fluid-power fundamentals that all valve-mounted units share.
Mechanism Families: Rack-and-Pinion, Scotch-Yoke, Diaphragm, Linear Piston
Rack-and-pinion actuators are the workhorse of quarter-turn service: in the 2026 catalogue they cluster between 2 Nm and 13,367 Nm, with the MAROS Mosfe aluminium and stainless range extending to 13,367 Nm at 1-8 bar supply, and the Bettis RPE series covering 2 Nm to 4,449 Nm in a double-acting rotary package [S1]. They are the default for ball, butterfly, and plug valves up to roughly DN300 in chemical and water service, and the rotary conversion is straightforward: two opposing pistons drive a shared pinion gear through 90° via a linear rack on each piston [S3].
Scotch-yoke actuators take over above roughly 100,000 Nm and convert piston motion through a slotted yoke that engages a drive pin on the output shaft, producing higher torque at the start and end of the stroke where most valves need it. The Bettis G series spans 1,420 Nm to 678,000 Nm, and the Rotork GP/GH hydraulic-pneumatic hybrid reaches 600,000 Nm [S1][S4]. Two yoke geometries matter in selection: a canted Scotch-yoke delivers higher breakaway torque than end-of-travel torque (suited to most butterfly and ball valves), while a symmetric Scotch-yoke gives equal end-position torque (suited to plug valves and metal-seated ball valves) [S4].
Diaphragm (rolling-diaphragm) actuators use a flexible elastomeric diaphragm instead of a rigid piston, converting air pressure into linear stem thrust with a short, controlled stroke. They top out at lower torque, the Fisher 2052 reaches 930 Nm and the SAMSON 3278 caps at 730 Nm at 6 bar supply, which keeps them in the throttling-and-damper segment rather than large-bore isolation [S1]. A linear piston actuator behaves like a double-acting pneumatic cylinder with a longer stroke and a directly coupled stem, sized for globe and gate valve duty where thrust rather than torque dominates the sizing equation [S3][S5].
Control Modes: Double-Acting vs Spring-Return (Single-Acting)
Double-acting units consume air on both strokes, hold position only as long as pressure is held on a port, and need a 5/3-way valve or an air reservoir to drive the valve to a defined safe state on air loss. Spring-return (single-acting) units store fail-safe energy in a compressed spring stack, so loss of air drives the valve to its fail-close or fail-open position without external power [S1][S2]. The SAMSON 3278 is built as a single-acting membrane unit with a handwheel, the Fisher 2052 is offered in spring-return, and the Rotork GP is configurable as spring-return double-acting; on ESD-1 loops where loss of air must close the valve, spring-return is mandatory and double-acting is rejected [S1].
Air consumption is the real trade-off: a double-acting Bettis RPE only consumes air during stroke, while a single-acting Mosfe cycles the full spring volume each stroke, roughly doubling compressor duty on modulating loops. On heating-loop isolation where fail-last is acceptable, double-acting saves 15-25% of the actuator mass and shortens the stroke time by a measurable margin [S1][S4].
Torque Envelope and Mechanism Selection Criteria
Selection starts with four binding numbers: valve torque at the seating point (breakaway Nm), rotation angle (90° quarter-turn vs 360° multi-turn), required cycle time in seconds, and supply-air pressure, typically 4-8 bar (58-116 psi), with most industrial pneumatic valve actuators sized against 5.5-6 bar (80-87 psi) supply [S7]. A 2-3x safety factor on the valve's published breakaway torque is the baseline sizing rule across all mechanisms; undersizing is the single most common field failure [S1][S2].
A compact torque comparison extracted from the 2026 surveyed product set: rack-and-pinion units cover 1-13,367 Nm (the universal default for small-to-medium quarter-turn), Scotch-yoke units cover 1,420-678,000 Nm (high-torque isolation and pipeline duty), diaphragm units cover up to 930 Nm (throttling and damper duty), and linear piston units are sized by thrust in newtons rather than torque in newton-metres (globe and gate valve duty). For a deeper look at the drive selection step itself, the pneumatic valve actuator encyclopedia chapter on selection decision factors walks the same torque-to-mechanism cascade.
Mounting and Accessory Interface Standards
Three standards govern how a pneumatic valve actuator physically connects to the rest of the system. ISO 5211 fixes the bottom actuator-to-valve flange: bolt circle from F03 to F16+, drive bore, and torque rating, so a buyer can mix actuator and valve brands without a custom bracket. DIN 3337 standardizes the square and splined stem bore dimensions on the actuator output. VDI/VDE 3845 (the German NAMUR recommendation) governs the side and top accessory faces for direct-mount solenoids, positioners, and limit switch boxes [S2][S6].
The standard split: ISO 5211 governs the bottom flange, DIN 3337 governs the drive geometry, and VDI/VDE 3845 governs the accessory interface. Air quality at the supply is fixed by ISO 8573-1, which sets the solid-particle, water, and oil contamination classes for compressed-air systems feeding pneumatic actuators [S2].

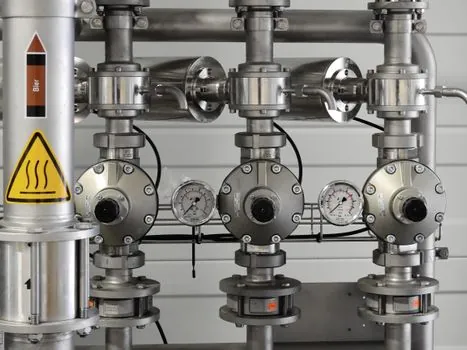

Supply Pressure, Ambient Limits, and Cycle Life
Supply pressure in the 2026 product set runs from 1 bar minimum on the MAROS Mosfe up to 8 bar maximum, with the Fisher 2052 explicitly rated for 2/3/5 bar spring ranges [S1]. Running a 5-bar-rated actuator above its nameplate supply wastes air through blow-by and accelerates seal wear; running it below the rated supply margin erodes torque margin and lengthens stroke time. ISO 5211 mounting compliance plus a VDI/VDE 3845 accessory face is the minimum package, and on noisy or venting service a pneumatic silencer on the exhaust ports is spec'd in the same package [S6].
Cycle life separates the families: rack-and-pinion units are rated for the highest cycle counts because the piston-to-rack interface is sliding-only and the pinion sees symmetric loading; Scotch-yoke units carry higher contact stress at the yoke slot and are usually rated for fewer cycles in the same duty class. For an equipment-level view of how these actuators sit inside the broader construction machinery and equipment ecosystem, where similar fluid-power principles apply to hydraulic and pneumatic drives on mobile plant, the encyclopedia entry is a useful cross-reference.
Application Fit and Common Failure Modes
Quarter-turn pneumatic actuators are the dominant solution for ball, butterfly, plug valves, and dampers in chemical, petrochemical, water treatment, oil and gas, offshore, district heating, steel and metal, pulp and paper, and food and brewery service, in part because they are less sensitive to intensive cycling than electric actuators and are considered near maintenance-free with a minimum of moving parts [S4]. In the EU, actuators with larger stroke volumes require CE certification to the Pressure Equipment Directive (PED) [S4].
The most common field failure modes are: undersized torque margin against a valve that has seized or loaded up with debris (mitigated by the 2-3x safety factor); hard end-of-stroke acceleration in rack-and-pinion designs, which shortens valve seat life (mitigated by switching to Scotch-yoke, whose torque curve is shaped to slow the shaft at end of travel); and air-supply contamination that scars piston seals, which is mitigated by ISO 8573-1 air-quality class and a FRL package at the manifold [S1][S4][S6]. When the wrong mechanism is specified for the duty, the actuator's own strength becomes its weakness, so mechanism choice belongs upstream of brand choice in the selection sequence.
Who Pneumatic Actuators Are For, and When to Look Elsewhere
Pneumatic valve actuators fit plants that already run a compressed-air distribution network, require intrinsic safety in hazardous areas (where a pneumatic solenoid and spring return can be certified to ATEX/IECEx without an explosionproof electric enclosure), and demand fast stroking and high cycle counts on quarter-turn valves. They are not the right pick where compressed air is not available, where a modulating control loop needs tight position accuracy over a long duty cycle (electric actuators with integral positioners usually win), or where fail-last is acceptable but fail-safe is mandatory, since only spring-return units provide true air-loss fail-safe [S5][S7].
Trackable signals for 2026: ATEX/IECEx dual-certification scope on hazardous-area solenoid manifolds is now the default on European chemical-plant builds; ISO 5211 flange compliance plus a VDI/VDE 3845 accessory face is the minimum specifiable package; and a 2-3x torque safety factor on the valve's breakaway figure remains the sizing rule that catches the largest share of field failures before they ship.
