A safe power mixer install reduces to four controlled variables: 30 cm of rear-panel clearance for forced-air cooling, a fused IEC receptacle on a Class I protective earth, balanced 1/4-inch TRS or XLR audio runs to keep ground loops out, and an amplifier-to-load match in the 4-8 ohm window at 200-1000 W per channel [S1][S2][S3].
The unit is an all-in-one mixing console plus power amplifier, so installation differs from a passive mixer in three ways: it draws branch-circuit current sized in amperes, it rejects heat through DSP-controlled fans, and it ships with a fixed-voltage power cord that must not be defeated [S1][S3][S5].
Ventilation and Mechanical Clearance
Rear-to-rear airflow with a minimum 30 cm / 12 in clearance from the front and rear panels to any external structure is the published baseline for rack and shelf mounting [S1]. When more than one controller is stacked, units must be mounted directly on top of each other, with any open rack space closed by blank panels; if the rack enclosure itself blocks the grills, a forced-ventilation system must be added rather than the panels being left blocked [S1].
The rear grill must be kept clean and free of dust, and the unit must not be installed near heat sources such as radiators, stage lights, or amplifiers exhausting into the same plenum, since the internal DSP-controlled fans are sized for moderate, not extreme, operating temperatures [S1][S4]. A common install defect, observed on touring racks, is sealing the rear of a flight case with a panel for cosmetics; this defeats the airflow path and is a documented cause of thermal cut-out during long sets [S4][S5].
Mains Connection, Earthing, and Fuse Discipline
The mains feed is a standard IEC receptacle on the rear panel, and the supplied power cord must be used because it already meets the relevant international safety certifications; blown fuses are replaced only with the same type and rating, never with a higher-amp substitute [S3][S6][S7]. A Class I construction requires a mains socket outlet with a protective earth, and the ground conductor on the AC cord must never be removed or disabled, even when ground-loop hum is suspected, because doing so voids the safety certification and exposes the chassis to fault current [S1][S3][S6].
Branch-circuit sizing is set by the operating voltage: 100 V (Japan) draws about 5 A, 120 V (North America) draws about 4 A, and 220-240 V (EU) draws about 2 A, so a 6.3 A Type B MCB on 230 V circuits or a 6.3 A Square D QO on 120 V circuits is the matching reference breaker per the CTSjunior reference install [S1]. When the unit is fed from a three-phase source, the three phases must be verified and loads balanced, the neutral and earth must be tested, and a single 230 V load must never be emulated by connecting across two live wires of a 120 V three-phase system, since the resulting line-to-line voltage and grounding do not match the unit's Class I rating [S1].
Audio Wiring: Balanced Lines and Connector Pinouts

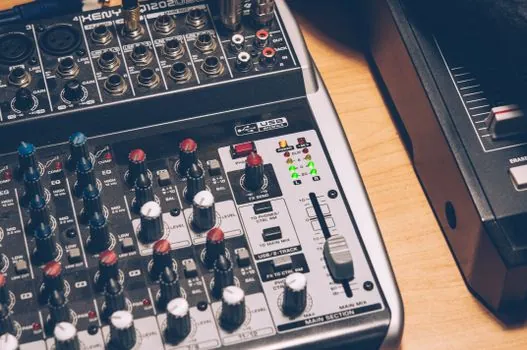

Inputs and outputs on most powered mixers, including the Behringer Europower PMP4000, are unbalanced 1/4-inch TS jacks, while the mono channel line inputs use balanced 1/4-inch TRS jacks, and the tape I/O sits on RCA [S3]. XLR inputs follow the standard pinout of pin 1 ground/shield, pin 2 hot (+ve), pin 3 cold (-ve); for unbalanced XLR use, pins 1 and 3 must be bridged at the plug end, never at the chassis, to preserve the shield path [S3].
Installation should be carried out only by qualified personnel who maintain sufficient electrical contact to earth during the work, because electrostatic discharge can latch up the mixer section before the first power-on [S3]. The same discipline applies to the related power mixer channel strip: phantom power is engaged only after confirming that all mics on that bus can accept 48 V, and the MAIN MASTER and MONITOR MASTER faders should be fully counter-clockwise before switch-on to avoid a hot PA at line-up [S9].
Power-to-Load Matching and Speaker Cabling
Power ratings cluster in the 200-1000 W per channel band at 4, 8, or 16 ohm loads, with RMS values used for honest comparison rather than peak music power [S2][S5]. Small venues under 100 people typically run 200-400 W per channel into 8 ohm tops, while medium venues in the 100-300 person range need 400-800 W per channel, and large or touring rigs move past 1000 W per channel with balanced outputs and dedicated sub feeds [S2][S5].
Speaker outputs are commonly Speakon or binding posts sized for the amp's minimum load; bridging two channels into a mono subwoofer is a documented configuration on Europower PMP-series units, but the resulting minimum load doubles and the per-channel wattage is consumed from both amp channels, so the cabling gauge must be re-checked against the bridged current draw [S2][S8]. A wrong-Z mismatch, for example a 4 ohm sub on a channel rated 8 ohm minimum, is the most common field failure: it trips the protection rail, then the operator defeats the breaker, then the output stage fails [S2][S5].
Power-On Sequence and Field Test Values

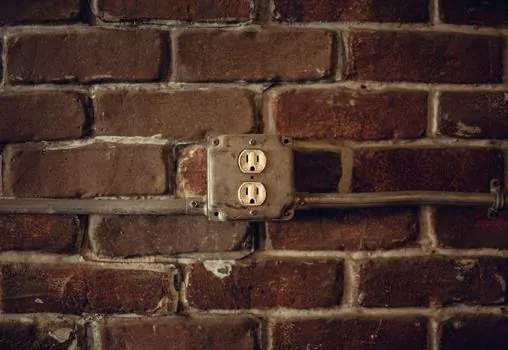

The correct power-on order for a fresh install is: mains breaker on with the unit's POWER switch OFF, all channel and master faders at minimum, speakers connected, then POWER switch ON, then levels raised slowly while watching the signal and limit LEDs [S7]. The POWER switch is a soft switch, not a mains isolator, so the power cord must be unplugged for prolonged off periods, and the rear-panel fuse holder must be checked against the local voltage label before first power-up [S7].
Acceptance criteria after install: a pink-noise feed at -6 dBFS into a 1 kHz sine through each channel should land the MAIN meters near 0 dB with the limit LED dark, a 4 ohm dummy load on each speaker output should hold continuous tone for 30 minutes without thermal cut-out, and a TRS-to-XLR cable swept at 20 Hz-20 kHz should stay within plus or minus 1 dB on a reference input [S3][S5][S7]. A test that fails any of these three is a return-to-bench trigger, not a "play quieter" workaround, because the failure mode indicates a wiring, ventilation, or load-sizing defect rather than a gain-staging problem [S3][S5].
Who This Procedure Is For, and When to Call a Technician
The four-step sequence above is sized for small-to-medium fixed and mobile installs where the operator is comfortable with a multimeter, an MCB panel, and basic audio cabling [S1][S3]. It is not the right procedure for three-phase distribution upgrades, for outdoor permanent installs exposed to weather, or for any rig where the speaker loop impedance cannot be measured with an LCR meter before first power-on; those cases need a licensed electrical contractor and, in EU jurisdictions, a CE-marked install record per the low-voltage and EMC directives applicable to the venue [S1][S3].
