The capital line item on the supplier quote — gearbox, couplings, trough, cover — usually represents only 20-30% of what a plant actually pays over the asset's service life, with the balance absorbed by power, spare flights, hanger-bearing rebuilds and the indirect cost of unscheduled stoppages [S1].
Where the Money Goes Over a 10- to 15-Year Service Life
For a belt conveyor alternative moving the same tonnage, energy is 20-30% of life-cycle cost; for a screw conveyor the same line typically lands at 30-40% because the flight face drags the bulk mass rather than carrying it on a low-friction belt [S6]. Maintenance — flight wear, liner replacement, hanger-bearing grease and seal kits, V-belt and coupling renewal — adds another 25-30%, and unscheduled downtime on a continuous process line commonly converts to USD 5,000-50,000/h of lost throughput depending on the downstream unit operation [S1].
The remaining 5-10% covers installation labour, the structural support, electrical run and disposal at end of life; these are routinely forgotten in a quote-based comparison but show up sharply in any TCO worksheet that captures them as a line item [S6]. A useful sanity check: a 5 kW screw at 8 h/day, 250 working days/year, at USD 0.10/kWh draws about USD 1,000/year — a number that compounds with duty cycle, and one that a 15-year design horizon will multiply roughly ten-fold before discounting.
The Four Engineering Levers That Move TCO More Than Vendor Choice
1) Shafted vs shaftless (or, for inclined service, a screw pump geometry) — shaftless designs eliminate the hanger-bearing rebuild and the contamination point, which on a wet sludge or waste-handling duty is the single largest maintenance line, and on a 6 m (20 ft) unit can shift maintenance cost from 30% to 12% of TCO over a 12-year horizon [S1]. 2) Flight speed and fill factor — running a screw conveyor at 15% fill instead of 30% cuts power draw roughly 50% for the same throughput, at the price of a larger, more expensive screw; payback is normally under three years for any duty above 4 h/day [S6]. 3) Liner and flight material — chrome-carbide overlay flights on a 400 BHN abrasive service typically deliver 2-3× the wear life of mild steel, at a 1.4-1.8× cost premium that pays back inside two flight-replacement cycles on sand, fly-ash or clinker service.
4) Hanger-bearing spacing — the historical CEMA rule of thumb caps the centre-to-centre distance at roughly 3 m (10 ft) for standard duty, but extending to 5 m (6 m on low-density non-abrasive bulk) removes the bearings entirely from the harsh zone and eliminates one of the top three failure points cited in plant maintenance records [S1]. The same logic applies to direct-drive gear motors versus V-belt drives — the belt is a 1-3%/year efficiency penalty and a recurring maintenance line.

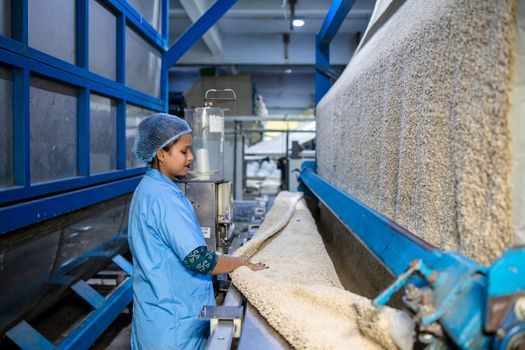

Screw Conveyor vs Belt Conveyor vs Pneumatic — Where Each Pays Back
Selection is not a single comparison; it is a matrix of bulk density, particle size, abrasiveness, distance, angle and containment requirements. Below is the working comparison that most plant engineers settle on after one or two mis-specified jobs: [S1]
— Screw conveyor: best for 0-45° inclines, 3-30 m (10-100 ft) lengths, 5-200 m³/h, enclosed dust-tight service, and non-stringy bulk. Lower first cost than pneumatic at short distances, higher energy per tonne than belt. Limitations: particle size typically capped at 1/3 of flight diameter, and the hanger bearings are a maintenance liability above 6 m lengths [S6].
— Belt conveyor: lowest energy per tonne (0.3-0.8 kW per running metre for the same tonnage) and lowest wear cost on non-abrasive, non-heat bulk over 30-500 m, but it cannot run inclined beyond roughly 18° without cleats or a second flight, and it is not enclosed [S6].
— Pneumatic conveying: wins on long distances, multiple pickup/discharge points, and very fine powders; loses on energy (typically 8-15 kW per running metre equivalent) and on filter/maintenance burden. Use only when the layout or the material rules out the other two [S1].
For an inclined bulk-solids lift above 45° or a precise-metering duty, the conversation shifts toward a screw pump geometry rather than a standard trough, with TCO dominated by stator life — typically 1-3 years on abrasive slurry versus 5-8 years on a mild chemical duty [S1].
Standards, Sourcing Signals and What the Quote Usually Hides
The relevant design code is CEMA Standard 350 (Screw Conveyors) for the dimensional and capacity basis, with belt options cross-referenced against CEMA B105.1 for belt drives. For ATEX/IECEx Zone 21/22 dust service, the conveyor must satisfy ISO 80079-36/-37 for non-electrical equipment; for food or pharma contact surfaces, the spec line is 3-A Sanitary Standards or EHEDG Doc. 2 for the screw-and-tube interface. None of these standards are negotiable in the spec, but they are routinely absent from the supplier quote until procurement asks. [S2]
A useful TCO worksheet has nine rows, not two: purchase price, freight, installation labour, energy (kW × hours × rate × years), preventive-maintenance labour, wear-part spend (flights, liners, seals, belts, couplings), unscheduled-downtime cost (frequency × MTTR × line value), end-of-life disposal, and a residual value line at the bottom. The Gartner Group methodology — which set the 5-year cost of a workstation at USD 44,250 and the operating share at roughly 75% of total cost of ownership — is the same shape: front-load the operating rows, not the acquisition row [S1]. Plant data confirms the same ratio shape: in continuous-process bulk handling, the operating rows outrun the acquisition row by a factor of 2-3 over a 10-15 year horizon, with energy and downtime the two biggest entries [S6].
For a side-by-side spec on the belt conveyor class, including motor, idler and take-up choices that drive its own TCO, the roller conveyor selection guide breaks out the equivalent drive and load trade-offs. For the related problem of motor and gearbox efficiency class on the drive end — which is the cheapest of the five TCO levers to actuate — the explosion-proof motor price and cost guide sets the IE3/IE4 and certification premium against the kW-hours it offsets.
Who a TCO Worksheet Is For, and Where It Misleads
A TCO worksheet is for any duty above roughly 2,000 operating hours per year — below that, the purchase price dominates and the analysis is theatre. It is also for engineers who can commit to the 5-10 maintenance and downtime line items, not the procurement team that only has the quote in front of it [S1]. It is not a substitute for a pilot run on cohesive or floodable bulk; on those materials the failure mode is usually plugging, not wear, and no worksheet will predict it. A common misuse: applying a TCO worksheet to a one-off replacement where the gearbox, motor and electrical are already in place — the operating cost is then sunk, and only the wear-part selection matters.
Limitations to be explicit about: a TCO worksheet assumes the operating duty holds; on a process line scheduled for closure in three years, a 15-year horizon double-counts maintenance that will not be spent. Energy cost, similarly, is usually taken at today's rate — running a 10-year model at the prevailing industrial kWh rate without escalation understates the energy share by 15-25% over the period [S6].
The next signal to track is IE4/IE5 motor availability at the gearbox-coupled CEMA frame sizes (CEMA 105, 125, 150) — as more vendors stock these as standard, the motor-premium payback drops below 18 months, and the TCO worksheet shifts again. A second signal is the diffusion of shaftless geometry into mid-duty bulk (not just sludge) as hanger-bearing-free designs cross the 200 mm diameter threshold that has historically been the lower limit.
