Vertical automatic shell core machines sized for 8-25 kg single-shot output cover 70-90% of foundry work tied to telecom-enclosure castings, with platen footprints from 550x400 mm up to 1100x900 mm, 25-45 s cycle times and 0.4-0.7 MPa shooting pressure as the four hard numbers that decide a 2026 purchase [S4].
Telecom-enclosure cores are typically small-to-mid shell geometries (junction boxes, distribution frames, antenna radome bosses, 19-inch rack mount housings) where shot weight sits in the 5-20 kg band and draw depth rarely exceeds 200-250 mm, so the vertical-toggle machine class is the practical answer for most lines [S4]. The general shell core shooter reference covers the common toggle-clamp envelope that Chinese and European OEMs use for this duty.
Platen Size and Core Box Footprint for Enclosure Cores
Platen size is the first gate and scales almost linearly with shot weight: entry-level vertical units run 550x400 mm to 700x500 mm and deliver 5-8 kg per shot, mid-range machines span 800x600 mm to 900x700 mm at 12-20 kg per shot, and the heavy-duty 1000x800 mm to 1100x900 mm class supports 25-40 kg single-shot weights [S4].
For telecom-enclosure work the typical call lands in the 700x500 mm to 900x700 mm band, which lines up with the 8-20 kg shot envelope and 24-36 kW platen heating class described in the shell core machine sizing reference [S4]. Beyond footprint, the 200-250 mm draw-depth ceiling is a hard practical limit for most vertical toggle clamps; horizontal clamp frames open up 300-500 mm draws but cost 1.5-2x the vertical equivalent at the same platen class, which is rarely justified for 19-inch rack mount and junction-box cores [S4]. The 2026 hardware-foundry spec map documents the same platen-to-shot-weight ratio for thin-wall general castings in a sister article: Shell Core Shooter Specs for Hardware Foundries: 2026 Selection Map.
Shot Weight, Resin Density and Platen Heating
Single-shot resin-sand weight is the most often misread number on a Chinese-OEM datasheet: the "maximum" figure typically assumes a low-density phenolic resin mix at 1.45-1.55 g/cm³ and a 70-75% fill ratio, so a 25 kg-rated machine usually delivers 18-20 kg on a real furan or phenolic no-bake shell core [S4]. Telecom-enclosure cores using standard phenolic-urethane shell resin at 1.50-1.60 g/cm³ will land at the lower end of any rated shot number, and the core machine glossary entry flags the same point: rated shot weight is binder-density-dependent, not a fixed sand-mass number.
Heating power tracks shot weight and platen class: small 5-8 kg machines run 12-18 kW electric platens heated to 220-260 °C, mid-range 12-20 kg units need 24-36 kW with gas-boosted platens common above 30 kW, and the 25-40 kg heavy class typically specifies 48-72 kW of electric heating with optional 60-90 kW gas burner backup for cold-start recovery under 15 min [S4]. For telecom cells a practical rule is 1.2-1.5 kW of platen power per kilogram of single-shot weight when sizing electrical infrastructure, which keeps a 15 kg-per-shot enclosure line on a 20-25 kW platen circuit.

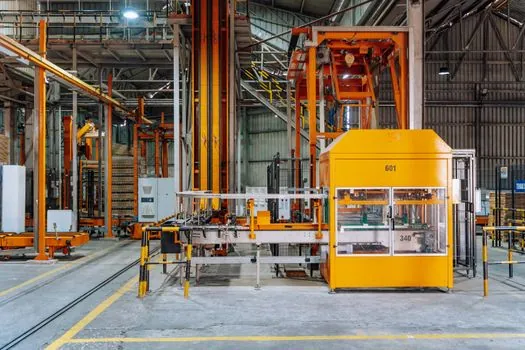

Cycle Time, Shooting Pressure and Curing Window
Cycle time is the throughput lever, and on a 2026 vertical automatic the realistic range is 25-45 s per core at 0.4-0.7 MPa shooting pressure, with the higher end of pressure reserved for thin-wall or deep-draw cores where sand compaction has to fight bridging [S4]. For telecom-enclosure geometry the mid-band 30-40 s cycle with 0.5-0.6 MPa shooting pressure is the working point, and the hot-box core machine cross-reference applies because the curing energy profile (220-280 °C platen, 15-30 s dwell) overlaps directly with shell-core heating numbers.
Three numbers drive the cycle: 0.4-0.7 MPa shooting pressure, 220-280 °C platen temperature, and 15-30 s cure dwell. Drop below 0.35 MPa and you start seeing soft spots and under-cured inner surfaces above 20-25 mm wall, push above 0.8 MPa and tooling wear on the sand magazine and blow plate accelerates 2-3x [S4]. Sand-magazine capacity, often 80-200 kg on a vertical automatic, sets the maximum run-length between refills and is the lever that ties cycle time to the upstream sand-mixing cell. A direct comparison is laid out below.
Vertical vs Horizontal Shell Core Shooter for Enclosure Duty
Vertical automatic machines dominate the 5-25 kg single-shot class, with platen footprints of 550x400 mm to 1100x900 mm, 12-72 kW heating, 25-45 s cycles and 1.0-1.5x baseline capital cost, while horizontal machines take over for cores above 25-30 kg or with draw depths above 250 mm at 1.5-2x the same-platen vertical price [S4]. For telecom enclosures the call almost always lands on vertical because enclosure cores sit at 5-20 kg, 80-180 mm draw depth, and need fast change-over between SKU families like 1U/2U rack housings and outdoor junction boxes.
Four decision gates line the two architectures up side by side for telecom-enclosure work: (1) shot weight - vertical wins up to 25 kg, horizontal needed above 30 kg; (2) draw depth - vertical hard ceiling 200-250 mm, horizontal reaches 300-500 mm; (3) cycle time - vertical 25-45 s, horizontal 35-60 s because of the larger sand mass; (4) capital cost per kg shot weight - vertical is the lower figure for enclosure duty, and the 70-90% coverage number from the 2026 sizing guide reflects exactly that [S4]. Foundries that mix telecom-enclosure cores with cylinder-head or large manifold cores fall into the horizontal category, and those larger cores also tend to be the ones routed through a shell molding machine line for the outer mold half.
Standards, Enclosure Ratings and Sourcing Constraints
Telecom-enclosure castings have to satisfy both mechanical-core mechanical specifications (IEEE 1101.1 covers mechanical core specs for microcomputers using IEC 60603-2 connectors, frequently cited for indoor rack-mount hardware) and enclosure-level ingress/IP ratings that the foundry does not control but must respect in the as-cast geometry [S1]. GRP and metal enclosure families designed for instrument and outdoor telecom service routinely list body-only enclosures built to M.E.S.C (Materials and Equipment Standards and Code) requirements with splitline entries for tubing and cable glands, so the shell core must leave clean machined faces for the gasket land [S2].
For outdoor telecom cabinets, platen-heated phenolic shell cores that deliver a 0.5-0.8 mm surface skin and a controlled 20-25 mm wall give foundries a clean surface for the powder-coat or zinc-rich primer step that drives the IP54-IP65 rating of the final enclosure, with cycle-time targets of 30-40 s on a 24-36 kW vertical unit [S4]. The LACCD Volume 1 design guidelines note that core-and-shell selections must be approved in writing during design review, which mirrors what most telecom OEM sourcing teams do at the tooling-PO gate [S3]. For cold-climate outdoor cells a cold-box core machine line may be specified instead, but the tooling and platen-heating envelope does not transfer 1:1, so the resin system choice should be locked before the machine is ordered.
Selection Checklist and Sourcing Signals
Use this four-line filter before issuing any 2026 PO on a shell core shooter for telecom-enclosure duty: (1) platen size 700x500 mm to 900x700 mm for 8-20 kg shot, (2) platen heating 20-36 kW electric with 220-280 °C envelope, (3) shooting pressure 0.5-0.6 MPa and cycle 30-40 s, (4) sand magazine 80-150 kg with quick-change core box clamps for SKU mix [S4].
Trackable signals for the next 1-2 quarters: any new vertical-automatic 700x500-900x700 mm platform release with documented kW-per-kg-shot between 1.2 and 1.5, and any movement on cycle-time baselines below 25 s on a 0.6 MPa platen, since both would shift the 2026 mid-range spec window. The 2026 automotive-parts spec map documents the same 25-45 s cycle window for thin-wall castings, which is the closest direct cross-reference for telecom-enclosure cells running 1-3 mm wall cores: Shell Core Shooter Specs for Automotive Parts: A 2026 Selection Map.
