Helical gears typically run 10-20 dB quieter than spur gears at comparable speeds and deliver roughly 50% higher load capacity for a given size, with the trade-off being 30-40% higher unit cost and the need for thrust bearings to absorb axial forces [S2][S4].
Spur gears post 98-99% power-transmission efficiency with no axial thrust, making them the low-cost default for conveyors, gear pumps, and timing mechanisms below 1,000 RPM, while helical gears with 15-30° helix angles become the practical choice above that threshold where noise, vibration, and tooth-impact fatigue start to dominate [S2][S4].
Tooth Geometry and Why It Drives the Noise Gap

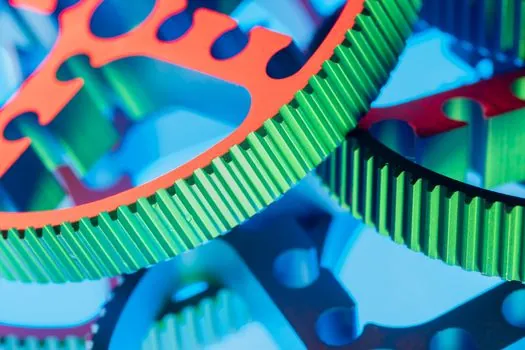

Spur gears carry straight teeth parallel to the axis, so the full face of a tooth contacts its mating tooth instantly across the entire line of action, producing an abrupt impact that scales with RPM and creates the characteristic whine at high speed [S1][S5].
Helical gears cut teeth at a 15-30° helix angle, so engagement begins at one corner of the tooth and sweeps diagonally across the face, with 2-3 tooth pairs sharing load at any instant and a contact ratio that commonly exceeds 2.0 versus the 1.2-1.6 typical of spur gears [S2][S4].
The contact-ratio difference is the root cause of both the noise and the load-capacity gap: more teeth in simultaneous mesh means lower stress per tooth and a smoother torque transfer, which a NASA-cited gear-noise study found can be cut by about 2 dB on a spur set simply by raising the contact ratio [S3].
Load Capacity, Contact Ratio, and Tooth Strength
For an identical pitch diameter and face width, helical gears carry roughly 50% more load than spur gears because the angled tooth spreads the line of action across multiple engaged teeth rather than slamming the full force into one pair at a time [S2][S4].
Spur gears are also more sensitive to center-distance variation and tooth-spacing error, which drive uneven load distribution and premature pitting on the weaker tooth, a durability weakness the helical geometry naturally evens out [S7].
Designers comparing gear options for parallel-shaft drives should treat the load-capacity number as a sizing rule of thumb: a helical unit can typically replace a larger, heavier spur set, which is why helical gears are the default in compact automotive transmissions and aerospace accessory drives where mass and torque density both matter [S1][S2].
Efficiency, Cost, and the Axial-Thrust Penalty
Spur gears hit 98-99% efficiency per mesh because the rolling contact avoids sliding friction and no thrust bearings are required, so the drivetrain stays mechanically simple and inexpensive to maintain [S2][S4].
Helical gears typically reach 95-98% efficiency due to sliding friction along the angled contact line, and the helix angle generates an axial thrust force on the shaft that must be absorbed by thrust bearings, adding cost, bearing heat, and a maintenance item the spur layout simply does not have [S2][S4].
Unit cost runs 30-40% higher for helical gears versus equivalent spur gears, a premium that pays back fastest in high-RPM or noise-sensitive service where helical efficiency losses and bearing friction are dwarfed by lower acoustic treatment costs and longer tooth life [S2][S4][S5].
Decision Matrix: When to Pick Spur, When to Pick Helical
Choose spur gears for sub-1,000 RPM service, tight budgets, and applications where simplicity, radial-only shaft loading, and maximum single-mesh efficiency dominate; common fits include conveyor drives, gear pumps, printing presses, and instrument timing mechanisms [S1][S2][S4].
Choose helical gears for service above 1,000 RPM, noise-limited environments (HVAC plenums, cabin or office-adjacent machinery, medical and laboratory drives), and high-torque drivetrains where the 50% load-capacity uplift lets a smaller gearset do the work of a larger spur pair, an argument covered in detail in our parallel decision guides such as the spider-coupling alignment breakdown at jaw coupling temperature limits and fixes and the structural-joining comparison at structural adhesive vs welding for dissimilar metals [S2][S4].
Avoid helical gears in pure radial-load, low-duty-cycle layouts where the added thrust bearing, lubrication complexity, and 2-3 percentage-point efficiency loss cannot be justified; also avoid spur gears in any high-speed mesh where the impact noise will exceed 80 dB(A) at the operator station or where AGMA bending-fatigue ratings would force an oversized, uneconomical gear [S2][S5].
Manufacturing, Maintenance, and Material Notes
Spur gears are produced by simple hobbing or shaping and ship in the widest range of stock sizes, materials, and quality grades, which is why they remain the cheapest replacement part in any gearbox spare-parts catalog [S1][S2].
Helical gears require shaping with a tilted tool or a specialized hob, plus a grinding pass on AGMA 6+ parts, and the need for thrust bearings and matched-helix pinion-and-gear sets raises both lead time and the cost of field service [S1][S5].
For reference definitions of contact ratio, helix angle, and AGMA load-capacity ratings used throughout this comparison, see the helical gear reducer encyclopedia entry, which also covers the parallel-shaft reducer configurations that combine helical meshes with the bearing arrangements discussed above [S1].
Limitations, Failure Modes, and Standards Context
Spur gears fail first at the tooth root from bending fatigue and at the flank from pitting when center distance drifts or lubrication breaks down, both of which are amplified at high RPM where the impact loading adds a dynamic component to the AGMA bending stress [S3][S7].
Helical gears fail first at the thrust bearing or from micropitting on the flank caused by the sliding component of mesh, and a poorly set helix angle can push axial thrust high enough to overwhelm a standard deep-groove bearing arrangement [S4][S5].
For a foundational look at how these gear sets are packaged into reducers used in conveyors, mixers, and hoist drives, the helical gear reducer reference is the natural next read; for applications where a gear pump or test rig must measure reaction torque or hydraulic line force, the load cell and load cell module entries cover the strain-gauge signal-chain side, while the checking and testing apparatus page covers the AGMA inspection instruments used to verify contact ratio, backlash, and tooth runout on a finished gear set [S1][S2].
Track these two signals before locking in a selection: AGMA 2001 or ISO 6336 bending-stress ratings for the chosen pinion-and-gear pair at the design torque and RPM, and the operator-station dB(A) budget driven by OSHA 29 CFR 1910.95 occupational-noise limits if the drive sits near a workstation, both of which will quickly resolve any spur-versus-helical tie-breaker.
