A unit-load stacker crane for e-commerce AS/RS is a rail-guided machine with a steel-column mast running on steel wheels over a floor rail (ground-supported) or top rail (suspended), with a telescopic fork that traverses vertically along the mast to deposit pallets or cartons into rack positions [S2].
Mitsubishi Electric's factory-automation logistics solution lists cycle-time reduction, enhanced safety, efficient inbound/outbound process, design-stage cost saving, short startup, and reduced maintenance as the engineering benefits the OEM targets when integrating a stacker crane into a warehouse control stack [S1].
Two structural classes: ground-supported vs suspended
Stacker cranes (有轨巷道堆垛机) run on either a floor rail with an upper anti-sway rail, or an overhead rail with a floor anti-sway rail; the floor-rail configuration is the ground-supported type, the more common pattern in unit-load pallet AS/RS [S2]. The mast is the steel column that carries the fork elevator, and bogies at the base carry steel wheels that ride the running rail; this rigid two-rail constraint keeps the carriage from swinging or tipping under acceleration, which is what allows modern cranes to sustain single-digit-second cycle times on long aisles.
For e-commerce fulfillment the trade is direct: ground-supported cranes allow heavier payloads (typically 500-1500 kg per unit load) and taller build heights (commonly 8-24 m), while suspended or top-running cranes free the floor for conveyors and pick stations, useful in retrofit brownfield sites where slab loading is constrained. The fork is a telescoping element, often dual-pallet width, that extends into the rack to deposit or retrieve a unit without rotating the mast, which keeps the aisle width at the minimum allowed by pallet dimension plus a small clearance.
Drive and control: what the FA layer actually talks to
Mitsubishi Electric's e-F@ctory stacker-crane solution wires the crane to a MELSEC PLC stack, MELSERVO-J5 or MELSERVO-J4 servo drives for travel and hoist, and FR-A800 plus series inverters for auxiliary motion, with MELIPC industrial computers handling edge data [S1]. This matters for selection because the control architecture sets the realistic cycle time, the safety integrity level achievable, and how the crane interfaces with the upstream WMS/WCS.
For greenfield e-commerce builds the spec should fix the fieldbus or industrial Ethernet protocol (CC-Link IE TSN, PROFINET, or EtherNet/IP) before the mechanical design is frozen, because servo tuning, anti-sway algorithms, and stack-light diagnostics all depend on deterministic cycle times in the 0.5-2 ms range. The Mitsubishi solution page also flags data collection and IoT-based condition monitoring as standard competencies of the e-F@ctory logistics stack, which is the lever buyers use to push unplanned downtime out of high-throughput operations [S1].
Selection criteria for an e-commerce order profile
For an e-commerce site the four spec axes that drive the build are unit load weight, peak hourly throughput, SKU count, and storage media (pallet, carton, or tote). Unit-load cranes with 1000 kg payload and 30-40 m/min travel can support the inbound pallet side, while mini-load cranes handling 30-50 kg totes at 60-120 m/min travel serve the picking reserve; these are different machine classes, not options on one chassis. [S1]
The side-by-side comparison below lines up the three common classes on the criteria that actually appear in an RFQ:
Unit-load ground-supported (500-1500 kg, 8-24 m height, 30-80 m/min travel, 40-60 cycles/h typical): best for pallet reserve, heavy inbound, long dwell time, low SKU velocity. Mini-load suspended (30-50 kg, 6-15 m, 60-120 m/min, 80-150 cycles/h): best for tote reserve, high SKU count, picker-facing reserve, fast rotation. Hybrid/dual-mast (up to 2000 kg, two-deep fork, 20-50 m/min, 30-50 cycles/h): best for high-density pallet reserve in brownfield where aisle count is fixed. The fork extension stroke, the number of load-handling attachments, and the rack-face geometry (single-deep vs double-deep) all come from this class choice, not from the controls quote.
Who it is for, and who should walk away
Stacker cranes pay back in e-commerce when SKU count is in the tens of thousands, order lines per shift exceed a few thousand, and the building height justifies going up to 8 m or more; below that, a horizontal carousels or vertical lift module scheme is usually cheaper per pick. They are the wrong tool for low-SKU, high-pallet outbound operations where a counterbalanced or reach forklift on a wire-guided path is faster, and they are also wrong when the existing slab cannot accept the rail grouting and column reactions a tall ground-supported crane imposes. [S1]
Safety and standards scope should be confirmed up front: a typical unit-load AS/RS stacker crane falls under machinery safety regimes (ISO 3691-4 for driverless industrial trucks, EN 528 for storage and retrieval machines, and the relevant IEC 61508 / IEC 62061 SIL targets for the safety functions), and the control panel must meet the EMC and low-voltage directives for the destination market. Buyers should also plan for the energy side: regenerative servo drives feeding a common DC bus, as supplied in the MELSERVO-J5 + FR-A800 plus architecture, cut peak kW draw on the hoist, which is a real number on a 24/7 e-commerce site [S1].

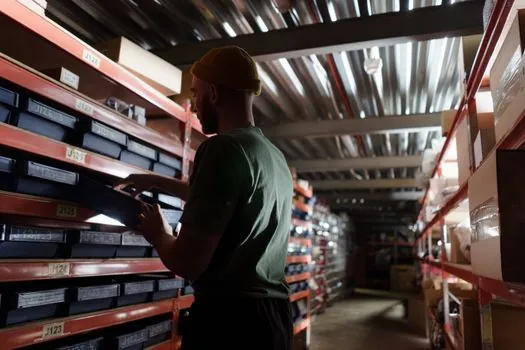

Comparing options on a criteria grid
Reading the three classes against the four decision criteria most often raised in 2025-2026 RFQs, the picture is: unit-load ground-supported wins on payload and rack height but loses on throughput per square meter; mini-load suspended wins on cycle rate and SKU density but caps out at roughly 50 kg per cycle; hybrid dual-mast wins on storage density in a fixed-aisle brownfield but pays a 20-30 percent premium per cycle and adds fork sequencing complexity. The right answer for a greenfield e-commerce DC is usually a mix: unit-load cranes for pallet reserve plus mini-load cranes for the picker-facing reserve, with one control platform across both so the WCS can route to either. [S1]
This is the same pattern a vibrating conveyor selection map for retail distribution applies at the sortation edge: a spec-first pass that fixes the unit load and the throughput target before vendor talks start, and only then compares drive packages. Stack-light diagnostics, anti-sway control loops, and energy-regen are where the control platform earns its margin in operation, not in the RFQ.
Limits, failure modes, and what to watch on site
The dominant failure modes on a stacker crane are rail alignment drift, encoder feedback loss on the hoist, fork-extend chain stretch, and contactor wear on the travel inverter; each maps to a measurable condition-monitoring signal, which is why OEM e-F@ctory packaging pushes IoT data collection as a built-in competency rather than an aftermarket option [S1]. A second operational risk is aisle-width creep: if the rack is shimmed out of tolerance, the crane's anti-sway margins shrink and the safety speed limit drops, which silently halves throughput.
Trackable signals to verify on a delivered unit: declared single-cycle time at rated load (s), maximum travel speed (m/min) under load, hoist speed (m/min) under load, position repeatability (mm), and the SIL claim on the safety-rated reduced-speed function. For broader warehousing-material flow context, the vibrating conveyor spec map for air-cargo terminals covers the sorter-to-crane handoff where throughput is most often lost in a real e-commerce DC.
