On a rotary valve actuator, a limit switch box is a position-feedback housing, not a smart sensor: it carries mechanical or proximity switches that read open/closed (and any intermediate cam-set position) and hands the contact to a PLC, DCS, or solenoid pilot. The install fails when the specifier treats the box as commodity hardware and ignores enclosure class, contact logic, and cam geometry.
For 2026 builds, the practical gate is: confirm the host actuator's ISO 5211 mounting pattern (F03/F04/F05/F07) and shaft height, pick a box with at least IP67 / NEMA 4 equivalent for outdoor or washdown service, and decide SPDT mechanical, NAMUR (EN 60947-5-6) inductive, or solid-state PNP/NPN before pulling cable. The mechanical and electrical choices made on the bench decide whether the unit survives its first thermal cycle on a pipeline.
Spec Match: Mounting Pattern, Shaft Drive, and Enclosure Class
The first non-negotiable is the actuator mount: most pneumatic and electric rotary actuators conform to ISO 5211, with F03 (31/36 mm), F04 (41 mm), F05 (50 mm) and F07 (70 mm) bolt-circle patterns; the limit switch box must share the same flange or carry a NAMUR VDI/VDE 3845 adapter (50 x 50 mm or 80 x 30 mm) that the actuator top already accepts. Shaft drive is either a direct female socket to the actuator drive, or a bracket-and-coupler on manual gearboxes, where the installer slides a coupling adapter onto the shaft before the bracket is bolted down [S5][S3].
Enclosure class is the second gate. IP65 is fine for indoor dry service; IP67 is the practical minimum for outdoor or washdown, and IP68 is specified for submerged or buried service. The NEMA equivalent widely specified in North American valve packages is NEMA 4 (hosedown) or NEMA 4X (corrosion, 316L or polycarbonate body). Housing material tracks the same split: die-cast aluminium powder-coated is the workhorse, polycarbonate or engineering plastic is chosen for chemical and marine exposure, and 316 stainless is reserved for offshore or hygienic skids. Misalignment of the drive coupling, by even 0.5 mm on a manual gearbox retrofit, shows up immediately as false trip on every cycle, so the bracket bolts must seat flat and the shaft concentricity must be checked with a dial indicator before the cover closes [S4][S5][S6].
Sensor Selection: SPDT, NAMUR, Inductive, and the Wiring Logic That Follows
Inside the box, the sensor choice dictates the cable, the barrier, and the I/O card. Three families cover almost every spec: SPDT mechanical microswitches (typically rated 5 A at 250 VAC / 30 VDC, mechanical life 1×10^6 cycles), NAMUR inductive proximity sensors per EN 60947-5-6 (8.2 V, ~1 mA normal / ≥2.1 mA damped, used with approved barriers in hazardous areas), and solid-state PNP/NPN 3-wire DC sensors for low-power PLC inputs. The wiring rule that never changes in safety service is to terminate the NC contact to the safety PLC or relay loop, so a broken wire reads the same as a tripped valve [S1][S2][S10].
Selection logic is straightforward: pick SPDT mechanical for general-purpose on/off and where the DCS expects a volt-free contact, NAMUR when the plant mandates intrinsically safe circuits in Zone 0/1 (with a certified galvanic isolator or Zener barrier), and solid-state where the box is mounted on a small electric actuator and only 24 VDC is available at the terminal strip. The direct-load vs PLC-signal comparison below summarises the trade-off in one table that any specifier can hand to procurement.

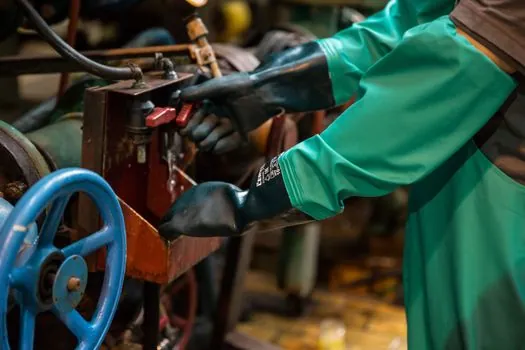

Mechanical Installation Procedure That Survives Commissioning
A clean install follows a fixed sequence and skips no step: (1) lock out and tag out the actuator and confirm the valve is in a safe position; (2) fix the bracket to the actuator with the correct bolt grade (8.8 or A2-70 stainless) and a flat washer under each head; (3) slide the coupling adapter onto the actuator shaft and align the keyway or flat; (4) mount the limit switch box to the bracket, verify the input shaft turns freely without binding, and torque the mounting bolts to the OEM value (commonly 8-12 Nm on M5/M6); (5) set the cams by hand-cycling the actuator to the fully open and fully closed positions, then locking each cam screw so it trips its switch at the correct stroke end; (6) dress the cable through the proper IP-rated gland, tighten the gland to the cable OD (usually 6-12 mm), and close the cover with the sealing gasket clean and undamaged [S2][S3][S5][S7].
Manual-gearbox retrofits deviate in one step: the box is driven off the gearbox top shaft with a separate bracket and a lovejoy or jaw-type coupling, not by bolting directly to an ISO 5211 flange. For lifting equipment, the equivalent procedure confirms the boom or hoist reaches its mechanical end-stop, then trips the box, not the other way around. In every variant, the install fails if the cam set screws are not re-checked after the first 10-20 operating cycles, because initial wear can shift the trip point by 1-3 degrees of shaft rotation [S7][S3].
Wiring, Glanding, and Hazardous-Area Termination
Wire preparation is unglamorous and unforgiving: strip 5-8 mm of insulation, crimp ferrules on stranded conductors to stop fraying, land each conductor on the correct COM/NC/NO terminal, and torque the terminal screws to the value printed beside the strip (typically 0.5-0.8 Nm for Phoenix-style terminals). The cable gland is the next failure point: an under-tightened gland on a hot day will pass water straight into the housing, and that water is what corrodes the cam screws and the terminal block. For hazardous areas, the box itself must carry a valid Ex marking (e.g. Ex d IIB T6, or Ex ia IIC T6 for IS variants), the cable entry must use a certified Ex d or Ex e gland, and unused entries must be plugged with a certified stopping plug, never with a domestic blank [S1][S8][S10].
The PLC/DCS side of the wiring depends on whether the plant runs 24 VDC sourcing inputs or 120 VAC discrete inputs; NAMUR loops need a dedicated IS barrier or a NAMUR-compatible DCS card. Earthing is the easy step that everyone misses: bond the box body to plant earth with a dedicated conductor (typically 4 mm² or 6 AWG green/yellow), separate from the signal cable shield, so a fault current does not run through the 4-20 mA / HART loop or the discrete input common. For a deeper look at the upstream positioner that often shares the same bracket, see the valve positioner installation guide; the bracket, gland, and earthing rules are the same in both cases. A worked sequence for a generic rotary limit switch in a control panel is laid out in the limit switch wiring and connection guide, which covers SPDT, COM/NC/NO, and PLC input wiring on the bench before the unit goes into the field.

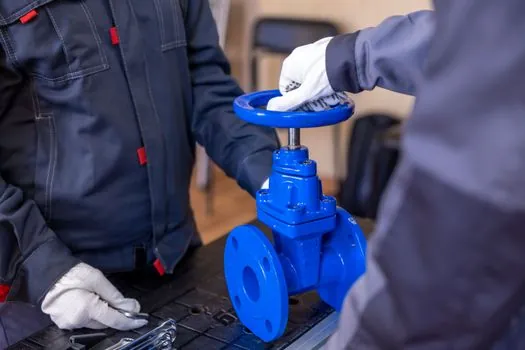

Acceptance Test, Troubleshooting, and When to Replace, Not Repair
Commissioning is a 30-minute job if the install was clean. Cycle the actuator electrically or with hand-pump from full close to full open at least three times; with a multimeter on the terminal block, confirm the open-limit contact changes state within the cam angle set on the bench and the closed-limit contact does the same at the other end. For NAMUR loops, measure the current: ~1 mA undamped (target absent) and ≥2.1 mA damped (target present) is the healthy band; anything outside that window points to a misaligned target, a shorted cable, or a failed sensor head. A megger or insulation tester at 500 VDC should read >100 MΩ between each terminal and earth on a dry housing. If any reading is off, the unit is not signed off; the fix is almost always mechanical (cam position, coupling alignment), not electrical [S1][S2][S10].
Replace, do not repair, when: the housing O-ring is nicked or compressed, the cover threads are damaged, the Ex marking is unreadable, or the microswitch has welded contacts (visible by a stuck contact state after the cam has passed). On a flameproof Ex d box, the cover threads and the gap length are part of the certification, so machining the cover or fitting a non-OEM cable gland voids the marking and the unit must be replaced as a whole, not reworked. Preventive swap-out on mechanical SPDT units is typically set at 1×10^6 cycles; NAMUR and solid-state units run longer, but the cabling and gland are usually the first to fail in service, not the sensor itself. The same fail-safe logic that drives limit switch box selection and its parent limit switch components is what the acceptance test verifies, so do not skip the cycle count even on a tight shutdown.
Trackable Signals for the Next Specifying Cycle
Two things to watch in the second half of 2026: more DCS vendors are shipping NAMUR-native input cards that accept 8.2 V sensors without an external barrier, which can drop the loop cost on Zone 1 retrofit skids; and a growing number of actuator makers are offering pre-mounted limit switch boxes on the F05/F07 flange with the cams factory-set, so the on-site work collapses from a 2-hour install to a gland-and-test job. For related cross-reference reading, the crossed-roller guide and linear guide entries cover the mechanical-bearing side of the same actuator bracket family. [S2]
