Correctly sizing a variable frequency drive (VFD) means matching the motor's full-load current (FLC) and service factor to the drive's continuous amp rating, then applying a 1.1-1.25× derating margin for the load profile [S7]. The global VFD market is projected to grow from USD 24.7 billion in 2025 to USD 32.0 billion by 2030 at a 5.3% CAGR, with pumps, fans, and compressors dominating application share [S7].
Selection criteria branch quickly: micro drives under 5 kW cover small HVAC fans and machine tools; low-voltage drives (0.75-250 kW at 380-480 V) handle the bulk of industrial pumps, conveyors, and hoists; medium-voltage drives (2.4-13.8 kV) serve large compressors, mills, and marine propulsion [S3][S7]. Buyers should confirm the drive's overload capacity (typically 150% for 60 s or 120% continuous), braking topology (dynamic brake chopper vs regenerative), and communication protocol (Modbus RTU, PROFINET, EtherNet/IP) before committing.
Step 1: Motor Data and Load Profile
Every VFD selection starts with the motor nameplate: voltage (208, 230, 400, 480, 575, or 690 V), full-load current, RPM, service factor (1.0 or 1.15), and insulation class (typically F, rated to 155 °C) [S7]. The drive's continuous output amps must be equal to or greater than motor FLC at the nameplate voltage, with a 1.1× margin for constant-torque loads (conveyors, extruders, hoists) and 1.0-1.05× for variable-torque loads (centrifugal fans, pumps) [S3].
Load profile determines the drive's overload rating. For hoisting and crane duty, a crane-rated drive with 200% peak for 3-5 seconds is the baseline; the overhead crane VFD selection criteria follow the same logic but add holding-brake release sequencing and slip-ring or squirrel-cage motor matching.
Step 2: Voltage, Power Rating, and Topology
Supply voltage drives the rectifier and DC bus design. Low-voltage VFDs cover 208-690 V at 0.4-250 kW (1-630 HP) and dominate HVAC, water treatment, and general manufacturing [S3][S7]. Medium-voltage VFDs span 2.4-13.8 kV at 250 kW-30 MW for mining mills, large compressors, and offshore platforms; these units use either cascaded H-bridge (CHB), current-source inverter (CSI), or neutral-point-clamped (NPC) topologies, each with different harmonic and fault-handling profiles [S7].
For AC induction motors, the most common topology is voltage-source inverter (VSI) with IGBT output and PWM switching at 2-16 kHz carrier frequency; higher carrier frequencies reduce audible motor noise but increase switching losses and cable-induced voltage spikes [S1][S3]. Permanent-magnet (PM) and synchronous reluctance motors require sensorless or absolute-encoder feedback for field-oriented control (FOC) at zero speed, and the drive must be rated for the motor's back-EMF constant to avoid overvoltage trips on deceleration. The variable-speed drive topology comparison is a useful reference for the rectifier (6-pulse, 12-pulse, active front-end) trade-offs.

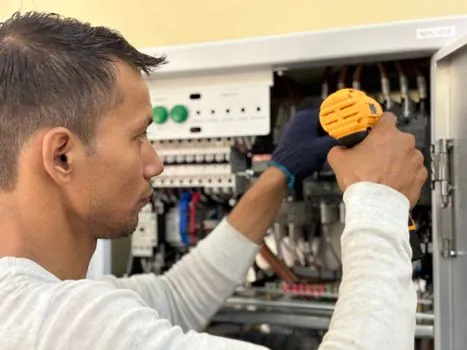

Step 3: Enclosure, Environment, and Cooling
Enclosure rating must match the installation environment: IP20 (NEMA 1) for clean control panels, IP54 for dust-laden workshops, and IP66 for washdown or outdoor mounting [S1][S3].
Cooling method (fan-cooled, heatsink-only, or liquid-cooled) must be specified. Fan-cooled units are common up to 250 kW but introduce dust ingress risk; liquid-cooled drives are standard for marine, marine-offshore, and high-power applications where ambient air cannot absorb the heat load [S1][S3]. Hazardous-area installations (oil and gas, chemical plants) require ATEX-certified VFDs with Ex d (flameproof) or Ex e (increased safety) enclosures per ATEX 2014/34/EU, and Zone 1/Zone 2 ratings per IEC 60079 series must be matched to the classified area.
Step 4: Harmonics, EMC, and Power Quality
Standard 6-pulse VFD rectifiers draw non-sinusoidal current with a total harmonic distortion (THDi) of 35-80%, which can push a site's harmonic levels above IEEE 519 limits at the point of common coupling [S3][S7].
EMC compliance per IEC 61800-3 defines four categories: C1 (residential, first environment), C2 (commercial/light industrial), C3 (industrial, second environment), and C4 (drives above 1,000 V or high-fault-current sites). Cable length between drive and motor must also be limited per the drive's EMC filter rating; long motor cables (>50 m) often require sinusoidal output filters or dV/dt filters to protect motor winding insulation from reflected-wave voltage spikes that can exceed 1,600 V peak on 480 V systems. Reference the VFD EMC and harmonics primer for filter sizing rules.

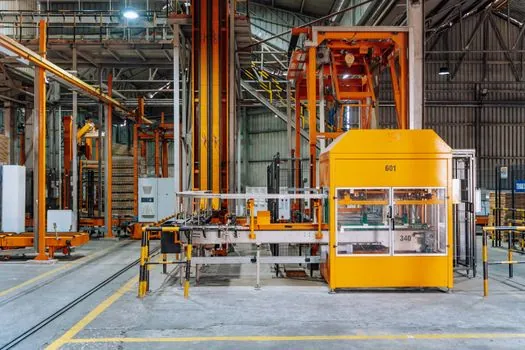

Step 5: Application-Specific Selection
Application drives the spec list. Pump and fan VFDs (variable-torque, quadratic) need PID control, sleep/wake modes, and bypass contactors for fail-safe operation; the Honeywell SmartVFD HVAC2 is a representative compact unit for this duty, with stepless speed control and dedicated fan/pump firmware [S1]. Hoist and crane VFDs require brake-control logic, torque-proving sequences, and 200% peak overload for lifting; Magnetek and Power Electronic International (PEI) products are typical distributor offerings for this segment [S2].
Compressor VFDs demand high starting torque (especially screw and reciprocating types), oil-cooling compatibility, and often dual-frequency output (50/60 Hz) for global OEMs; the AP100 dual-frequency inverter is a representative example for air-compressor duty [S3]. Machine-tool spindle VFDs run at 0-400 Hz or higher with encoder feedback for rigid tapping and orientation; servo drives (a related but distinct category) are preferred where sub-1 ms positioning loops are required. A wider motor and drive selection checklist is available for buyers mapping motor FLC, enclosure, and environment in parallel.
Who Should NOT Pick a Standard 6-Pulse VFD
A standard 6-pulse VFD is the wrong pick for sites with weak utility short-circuit capacity, where the harmonic distortion from a 6-pulse rectifier will push the facility above IEEE 519 limits and trigger utility penalties [S7]. A 12-pulse, AFE, or active-filtered drive is the correct substitute even at higher first cost, because the harmonic-mitigation retrofit on a 6-pulse unit often costs more than the upgrade at the time of purchase. Sites with long motor cable runs (>100 m) should also avoid 6-pulse units without output filters, as reflected-wave transients can exceed 1,600 V peak on 480 V systems and puncture motor winding insulation within months.
These applications require sensorless vector control (SVC) or closed-loop vector control with encoder feedback, and the drive cost rises 30-80% accordingly. Open-loop V/f drives are also the wrong pick for permanent-magnet or synchronous reluctance motors, which require FOC firmware to avoid demagnetization and overcurrent trips.
Failure Modes and Sizing Traps
The most common VFD sizing trap is undersizing for peak current. Drives rated at motor FLC have zero margin: any voltage dip or load transient will trip on overcurrent. A 1.1× margin is the minimum for variable-torque duty, and 1.25× is the practical minimum for constant-torque duty with high inertia [S3]. The second trap is ignoring DC bus ripple on regenerating loads (downhill conveyors, unwinding winders); a dynamic brake resistor or regenerative active front-end must be specified at order entry, not retrofitted after a drive trips on DC bus overvoltage.
Environmental failure modes include condensation on heatsinks during standby (a real problem in outdoor or washdown installations), dust clogging of cooling fans (a 2-3 year maintenance item), and electrolytic capacitor aging (typical 10-year design life at 40 °C; half that at 60 °C). Specifying conformal-coated PCBs is standard for drives in humid or corrosive environments. For high-altitude sites above 2,000 m, both voltage and current derating apply, and corona-resistant motor insulation (inverter-duty rated per NEMA MG1 Part 31) becomes mandatory.
Standards, Documentation, and Sourcing Signals
The standards governing VFD selection are layered: IEC 61800-1 (general safety), IEC 61800-2 (rating classes), IEC 61800-3 (EMC), IEC 61800-5-1 (functional safety), and IEC 61800-9 (energy efficiency, IE/IES classes) form the core [S7]. Regional compliance adds UL 508C (North America), CE marking (Europe), and CCC (China). For hazardous areas, ATEX 2014/34/EU and IECEx certification are mandatory, with the drive's Ex rating matched to the zone classification.
On the sourcing side, the VFD market remains a low- to mid-double-digit growth segment through 2030, with major OEM offerings spanning micro (single-phase 220 V) to medium-voltage multi-megawatt units [S4][S7]. Trackable signals for buyers include: published efficiency curves (IE2/IE3 drive losses, not just motor efficiency), service-factor headroom, regional distributor inventory for spares (drives stocked locally with 24-48 h replacement reduce downtime exposure), and warranty terms (typical 12-36 months, with some Asian OEMs offering 36 months full-unit replacement on micro drives) [S3]. For related machine-tool drive and digital-twin integration, the VFD selection is increasingly tied to OPC UA and PROFINET connectivity for Industry 4.0 retrofits.
