Amphibious excavators in the 5–40 t class are pontoon-mounted crawlers built to work in marshes, canals, ponds, and shallow rivers, with 3-compartment sealed pontoons and Q355-grade track shoes as the baseline safety/structural package seen across 2025–2026 OEM listings [S1][S3][S6].
Standard crawler excavators of the same tonnage remain the lower-cost, higher-productivity option on dry, load-bearing ground, but cannot operate afloat; buying the wrong platform typically means either a sunk machine in soft ground or a stranded pontoon assembly on hardpan [S1][S2].
Defining the Two Platforms and the Operating-Weight Overlap
Amphibious and standard excavators share the same upper structure (boom, stick, bucket, cab, engine) but diverge on the undercarriage: amphibious units bolt the upper onto a pair of watertight steel pontoons sized to displace the machine's full operating weight at the working waterline [S1][S3]. Relong Tech's RL-AE08 sits at 8 t (8.8 US ton) operating weight as a compact mini-class pontoon unit, while the same builder's RL-AE36 is a 56,700 kg (125,002.1 lb) medium-class machine with 0.8 m³ bucket and 18,800 mm (740.157 in) digging depth [S1][S3].
Ultratrex (UTX) publishes a 5–40 t coverage range across its dredging/environmental line, and DirectIndustry lists 14 amphibious models from 4 manufacturers in its 2026 index — a niche catalog compared with the thousands of standard crawler SKUs on the same portal [S2][S6]. The overlap with standard crawlers is heaviest in the 8–35 t band, where a buyer can usually choose either platform on the same job if ground conditions are mixed [S2].
Spec Bands to Compare Before Specifying
The four specs that actually decide the comparison are operating weight, bucket capacity, digging depth, and pontoon geometry (length × beam × height). Relong's 2026 catalog runs RL-AE04 at 4 t, RL-AE08 at 8 t, RL-AE15 at 15 t with 0.6 m³ / 10 m digging depth, RL-AE20 at 33,000 kg with 0.5 m³ / 9,070 mm digging depth, RL-AE20D at 20 t with 1.0 m³ / 11 m digging depth, and RL-AE25 at 42,300 kg with 0.6 m³ [S2]. At the heavy end, the RL-AE36 hits 56,700 kg operating weight, 0.8 m³ bucket, and 18,800 mm digging depth [S3].
Pontoon dimensions follow the host excavator size. A 2026-07 listing for a pontoon sized 9.5 × 1.8 × 1.7 m targets 21–24 t excavators, and a separate Doosan undercarriage kit (max arm 13 m, 20 t class) lists at US$75,000–90,000 per set [S4][S5]. For context, an OEM amphibious dredging excavator is listed on made-in-china at US$120,000–180,000 per set, and small Chinese mini amphibious units (1–5 t) start as low as US$1,805–3,989 per piece [S7][S9]. Standard crawler excavators of comparable tonnage from XCMG (e.g. the 21 t XE215C and 37 t XE370DK lines) sit in a different pricing band but are not pontoon-capable [S8].

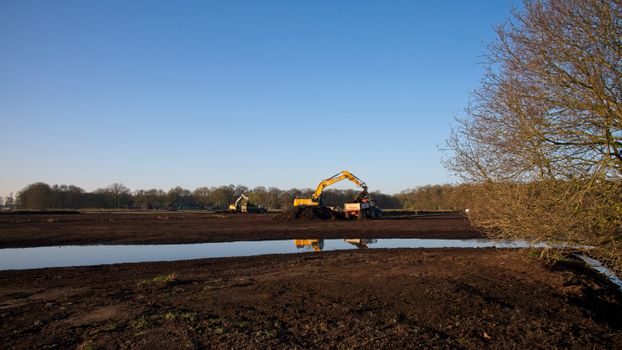

Who Should Buy Amphibious and Who Should Stay on a Standard Crawler
Specify an amphibious unit when the work involves standing water deeper than the track height, soft organic soils with bearing capacity below ~50 kPa, or seasonal flooding where half the year is dry and half wet — canal deepening, river-mouth dredging, fish/shrimp pond wall building, paddy-field irrigation, and oil/gas pipeline trenching across wetlands are the canonical applications listed by Relong across 2023–2026 [S1][S3]. UTX markets the platform to dredging contractors and environmental remediation crews, with 20-country dealer coverage and a 10,000-hour published warranty [S6].
Specify a standard crawler when the site is dry, hard, or paved for more than 80% of the operating hours, when maximum cycle time and ground-bearing pressure matter, or when the contractor already owns a wheeled/crawler fleet and only needs an undercarriage swap-out. Amphibious pontoons raise the ground-bearing pressure envelope but cut travel speed and fuel efficiency on hard ground; they are not a general-purpose replacement [S1][S2]. For long-reach demolition or quarry work on stable ground, a long-reach standard excavator typically outperforms a pontoon unit on tons-per-hour.
Decision Matrix: Amphibious vs Standard Crawler by Criterion
Cost: small amphibious mini units 1–5 t from US$1,805–3,989/piece; mid-size OEM amphibious dredgers US$120,000–180,000/set; undercarriage retrofit kits US$75,000–90,000/set [S4][S5][S7][S9]. Standard crawlers in the 21 t class (XCMG XE215C) and 37 t class (XE370DK) carry different price points and are not pontoon-capable without a separate undercarriage [S8].
Working envelope: amphibious 4–56.7 t operating weight range with digging depth 9,070–18,800 mm and bucket 0.5–1.0 m³ across Relong's 2026 line; standard crawlers reach deeper boom-and-stick combinations and higher travel speeds on hard ground [S2][S3][S8]. Corrosion protection: marine anti-corrosion zinc blocks on the Q355 steel track shoes/chain and 3-compartment pontoon sealing are amphibious-only OEM features in the 2026 listings [S1][S3].
Use-case fit: soft wetland, shallow-water dredging, flood-hit clearing → amphibious; bulk earthmoving, demolition, quarry loading, urban utility work on paved ground → standard crawler [S1][S2][S3][S6]. For deeper sourcing context on the amphibious OEM landscape, see this amphibious excavator suppliers spec map; for long-arm comparison on stable ground, the long-reach excavator suppliers tier map is a useful complement.

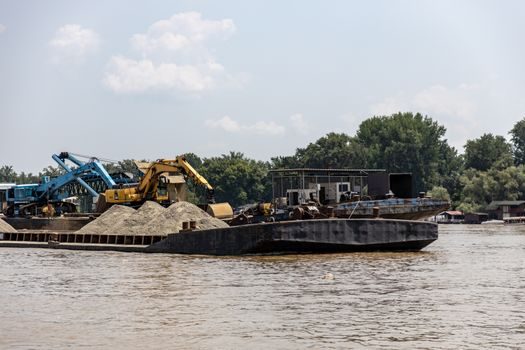

Corrosion, Maintenance, and Service-Life Constraints
The 2026 OEM builds all advertise the same baseline corrosion package: marine anti-corrosion zinc blocks on the track shoes and chain, 3-watertight-compartment pontoon construction per side, and 3 checking holes per pontoon for maintenance access [S1][S3]. Material is typically Q355-grade structural steel per Relong's 2023–2026 datasheets — a Chinese GB/T 1591 high-strength low-alloy grade equivalent to ~355 MPa yield, used widely in mobile heavy equipment [S1][S3]. Buyers should confirm weld procedure, coating system (zinc block + paint), and seal service interval before accepting a pontoon on saline or brackish sites; UTX publishes a 10,000-hour warranty window, which is the strongest published service-life signal in the segment as of 2026-07 [S6].
Failure modes specific to the platform are pontoon breach, track-shoe corrosion pitting, and seal failure on hydraulic pass-throughs between upper and pontoon; all three are addressed by the 3-compartment + zinc-block design, but only if the 3 checking holes are actually used for scheduled inspection [S1][S3]. A standard crawler has none of these failure modes but introduces undercarriage wear, slew-ring fatigue, and ground-pressure ruts on soft soils — the inverse risk profile [S1][S2].
Options, Attachments, and Integration Notes
OEM build options for amphibious machines in 2026 include additional pontoons and spuds for deep-water stability, hydraulically extendable pontoons for narrow channels and overland transport, and customizable chassis height for varied water depths [S1][S3]. Relong's range also accepts the standard excavator attachment family (buckets, long-reach booms, grapples, hydraulic hammers) because the upper structure is sourced from mainstream excavator builders (SANY upper is documented on the RL-AE15) [S2].
For suppliers running mixed fleets, the practical integration is a pontoon-undercarriage retrofit onto a standard excavator upper — Jinyi (Binzhou) and Relong both advertise amphibious undercarriages compatible with Caterpillar-class excavators, with Jinyi marketing steel-pontoon undercarriages, dual-purpose tracks, and amphibious dredging excavators as a core product line [S10]. For comparison against related heavy-equipment spec workflows on this site, a process-engineer reader will recognise the same spec-first logic used in load cell module selection and in the self-priming pump corrosion map — the selection criteria, not the brand, drive the decision.

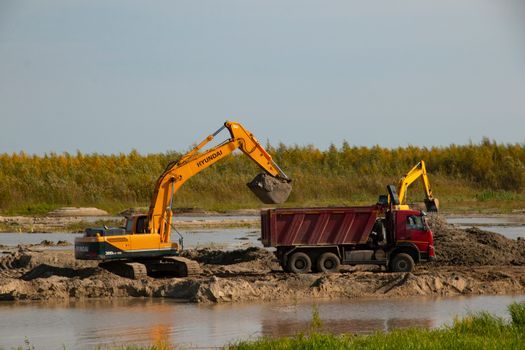

Sourcing Signals to Track After 2026-07-26
Trackable post-spec signals: (1) Relong's RL-AE36 medium-class 56,700 kg / 18,800 mm digging-depth platform is the heaviest amphibious unit with published digging depth in the 2026 DirectIndustry index and sets a benchmark for the dredging-reclamation segment [S3]. (2) UTX's 10,000-hour warranty and 20-country dealer footprint are the strongest published aftermarket signals in the segment, last refreshed 2026-07-24 [S6]. (3) Made-in-China carries 1–5 t mini amphibious entries from US$1,805/piece and 20–24 t dredging-class entries from US$120,000/set, last refreshed within the past 30 days, providing live entry-level and mid-tier price anchors for tendering [S7][S9].
