Body-in-white (BIW) lines remain the densest robot deployment on the factory floor, and the gap to other manufacturing sectors is widening rather than closing [S1]. The US automotive industry recorded 1,287 installed robots per 10,000 employees in 2024, up from 1,200 in 2017, putting it seventh worldwide behind South Korea, Singapore, Germany (1,311 units), Japan (1,248 units), and Switzerland [S5].
A new greenfield BIW cell running 30-45 jobs per hour typically deploys 60-90 articulated six-axis robots across floor pan framing, side framing, roof and door stations, plus 8-15 additional units for material handling, roller hemming, and inline measurement, with cycle times of 48-90 seconds per station in 2026-spec mass-market plants [S3][S4]. A useful baseline read for the broader automation context is the IFR's note that robot density in US manufacturing overall sits at 200 per 10,000 employees, with general industry still under 140 per 10,000, a roughly 6:1 spread against the automotive benchmark [S1][S5].
Per-Line Robot Count by Station Type
Articulated robots held a 52.9% revenue share of the automotive robotics market in 2025, a clear signal that six-axis arms remain the structural default for body-shop work, where reach envelope and torch orientation dominate cell layout decisions [S3]. The IFR logged 136,000 new industrial robot installations in the automotive sector in 2023, a 9% year-over-year jump that signals broadening adoption beyond premium OEMs into mass-market assembly [S3].
Station-by-station, a 2025-spec BIW line carries roughly: 20-30 robots in the underbody/floor pan cell (spot welding, stud welding, MIG/MAG); 15-25 robots in the body-sides/framing cell; 8-12 robots on the roof, door, and decklid deck; 6-10 robots in the closeout and hemming cell; 6-10 robots in the framing material-handling loop (sky hooks, rotary tables); and 4-8 dedicated inspection and sealant robots, with a 0.01 mm repeatability band on critical dimensioning stations for the EOAT-mounted probes [S3][S4]. The trend line is unmistakable: IFR expects robotics density in automotive plants to roughly double from current levels over the next decade, meaning new greenfield EV-only lines will likely cross the 100-robots-per-line threshold by 2028 [S3].
Which Robot Class Goes Where
Welding robots accounted for the largest functional segment in 2025, with articulated six-axis arms dominating because their rotary joint count matches the contoured weld paths on multi-material EV body structures [S3]. Spot-welding guns typically weigh 60-120 kg and demand robots with at least 0.05 mm repeatability and payload ratings above 100 kg, which is why high-payload articulated arms rather than cobots own the BIW floor [S3][S4].
Collaborative robots (cobots) are projected at a 15.1% CAGR through 2035, but their role in body shops is narrow: inspection, sealant bead verification, and small-parts placement alongside human operators, where their lower payload (commonly 5-35 kg) and force-limited operation are acceptable [S3]. A practical comparison of the four classes deployed in body-shop cells:
Articulated six-axis arms, the BIW default: payload 6-800 kg, repeatability ±0.02 to ±0.08 mm, work envelope up to 3.7 m reach, ideal for spot welding, MIG, stud welding, roller hemming, and material handling. SCARA robots, fast but restricted: payload 1-20 kg, repeatability ±0.01 to ±0.025 mm, used in subassembly, screw driving, and small electronic component placement rather than large-panel welding. Collaborative robots, force-limited assistants: payload 3-35 kg, repeatability ±0.03 to ±0.05 mm, deployed in inspection, sealant, and human-robot shared workstations. Cartesian/gantry robots, precision positioners: payload up to several hundred kg with rigid linear axes, used for sealant dispense rails and overhead transfer, not for contoured welding [S3][S4].

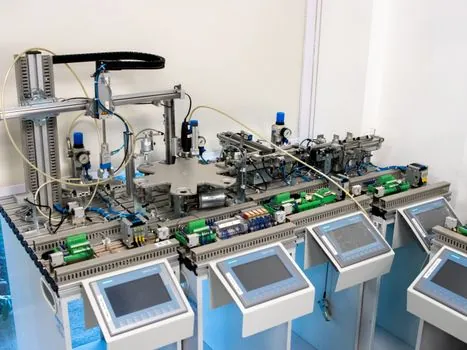

Who It Is For and Who It Is Not
Body-shop robot density math is built for high-volume OEMs running 200,000+ units per year per plant, where the 12-18 month integration payback on a 70-100 robot cell closes cleanly. Tier-1 suppliers running 50,000-200,000 units can justify 20-40 robots per line, but they typically cap complexity at a single BIW cell rather than running a full multi-station body line [S3]. The IFR's 2024 figure of 1,287 robots per 10,000 employees in US auto plants, versus 938 in China (twelfth worldwide), is the most telling cross-regional benchmark: a line staffed by 500 production workers in a US car plant implies roughly 64 robots in that plant's body shop alone [S5].
Low-volume niche builders (under 10,000 units per year) and short-run contract manufacturers are the wrong fit, since the same cell integration cost spreads across too few units and a cobot-heavy approach with limited fixed automation is the financially rational path. A second non-fit case is mixed-model plants running body styles on legacy tooling: a 2020-vintage stamping line paired with a 1990s-vintage body framing line cannot absorb the full robot count of a 2026-spec greenfield without a partial line rebuild. Related context on the fixed-versus-flexible tradeoff is covered in AS/RS vs AMR goods-to-person decision math, and the same automation capital logic applies when sizing body-shop cells.
Standards and Spec Frame Governing Body-Shop Robots
The ISO definition cited in the factory-robot reference material states that an industrial robot is an "automatically controlled, reprogrammable, multipurpose manipulator programmable in three or more axes", which is the standard most specifiers cite when an integrator's quote needs a common taxonomy [S4]. Cell layout, reach, payload, and repeatability are quoted in the same envelope across major OEMs (FANUC, ABB, KUKA, Yaskawa, Kawasaki, Denso), which is why benchmark numbers from a KUKA KR 1000 or FANUC R-2000 translate cleanly across procurement documents [S3].
End-of-arm tooling (EOAT) selection is the second spec layer: servo spot-welding guns, pneumatic grippers, vacuum cups, and paint sprayers each carry their own accuracy and maintenance profile, and a body-shop line typically uses 3-5 different EOAT types per station set [S4]. Production lines built around these cells, from BIW framing through final assembly, fall under the broader umbrella of molding line and automatic molding line and automatic molding line integration disciplines, which share the same EOAT, motion-control, and conveyor-sync logic. Adjacent conveyor and cell-routing decisions also show up in conveyor sorting line design and electrical automation reference material, both of which the same system integrators will draw on when scoping a greenfield line.

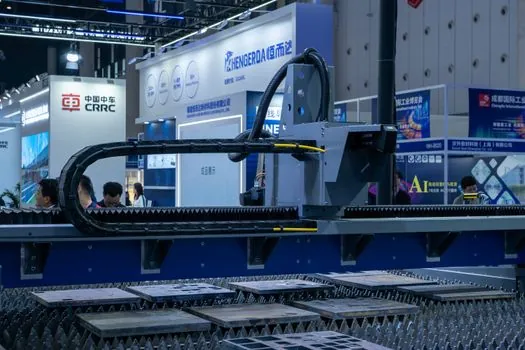

Limitations and Failure Modes of High-Density Body Shops
Robot density in a body shop hits diminishing returns above roughly 90-100 robots per line, where collision avoidance, teach-pendant congestion, and robot-to-robot handoff latencies start eating cycle-time savings. A 2023 industry estimate put 24% of US robot downtime at the cell-integration layer (conveyor sync, weld-controller handshake, vision-system offsets) rather than at the robot arm itself, and that ratio worsens on lines with more than 80 robots in close quarters [S3]. A secondary constraint is power and compressed-air infrastructure: a single spot-welding robot typically draws 80-150 kVA peak during firing, which forces substations to right-size at roughly 1.2-1.4x the connected load, not 1.0x [S1].
Welding-quality drift is a third failure mode: gun-tip dressing, electrode wear, and shunting from misaligned panels all create downstream rework, and the 0.01 mm repeatability figure cited for premium EOAT is meaningless if the upstream stamping and racking are off by 0.5 mm [S4]. Inline dimensional inspection is therefore the natural counterweight, which is why 4-8 dedicated inspection robots per line has become a 2025 baseline, and why IFR reports the inspection-and-quality-testing function as the fastest-growing segment in automotive robotics [S3]. Connected gauge and quality-data practices that support this loop are detailed in automated gauge R&R on connected gauges, which is directly relevant to anyone validating the inspection-robot layer.
Sourcing and Where the Specs Come From
The primary public source for body-shop density numbers is the International Federation of Robotics' annual World Robotics report, which is what underpins the 1,287-per-10,000 US figure, the 1,200-per-10,000 2017 baseline, the 52% growth from 2012 to 2017, and the 136,000 new automotive installations in 2023 [S1][S3][S5]. The IFR's 2019 release also documented the peak US automotive installation count at 16,311 units in 2016, dropping to 14,600 in 2018 with OEM-side investments down 26% from 2017 to 2018 while tier-1 suppliers grew 9%, a structural split that has only widened since then [S1].
Market sizing for 2026 budgets should anchor on the MRFR automotive robotics report: USD 17.42 billion in 2025, USD 19.67 billion in 2026, USD 58.16 billion by 2035, at a 12.8% CAGR, with Asia-Pacific at 42.9% revenue share, North America at roughly 24%, and South America as the fastest-growing region at 15.6% CAGR [S3]. For engineering readers comparing the integration economics of automation cells against other fixed-infrastructure decisions, the same capital-math framework shows up in miniload vs unit-load stacker crane selection. The next verifiable node to track is the IFR's World Robotics 2026 release, typically issued in late September, which will refresh the 1,287-per-10,000 US figure with 2025 installation data; the second is the EV-platform ramp in South America, where Brazil and Argentina greenfield plants are pulling regional CAGR to 15.6% through 2035 and shifting the global density curve [S3].
