Cerium is the most abundant rare-earth element and several times cheaper than neodymium on oxide basis; ORNL's cerium-based alloy family with zirconium and cobalt targets energy products approaching 40 MGOe, aimed at EV motors, wind generators, and electronics [S1].
Ce-substituted NdFeB versus full NdFeB versus ferrite: a side-by-side on motor decision criteria
For motor selection, three material families are usually compared on four axes: maximum energy product, intrinsic coercivity (Hcj), maximum operating temperature, and relative cost per kg of magnet. Sintered NdFeB typically delivers 30-52 MGOe (BH)max with Hcj of 12-30 kOe and continuous service to 150-200°C depending on grade (N35-N52, N35SH-N52UH series). Ce-substituted sintered NdFeB, with 10-30% Nd replaced by Ce, drops to roughly 28-40 MGOe (BH)max and 8-18 kOe Hcj, with usable continuous temperature around 120-180°C [S6][S3]. Sintered ferrite sits much lower, around 3-5 MGOe with Hcj of 2.5-4 kOe but is stable to 250°C+ and a small fraction of the cost; alnico delivers 5-10 MGOe with very low Hcj (0.6-1.5 kOe) and excellent temperature stability but poor resistance to demagnetisation in dynamic motor fields [S5].
Ce-substituted grades win on cost-per-knee-of-the-curve in moderate-flux applications: they are denser in flux than ferrite, much cheaper than full NdFeB, and tolerate the field/temperature envelope of a refrigerator compressor or HVAC outdoor fan motor. They lose on any application needing high pole-pair flux density in a small rotor, high continuous torque per ampere, or sustained operation above ~180°C, where coercivity loss accelerates irreversibly [S6][S5].
Motor topologies that already accept Ce-substituted NdFeB
Toyota publicly disclosed (2018-02-20) a sintered NdFeB magnet for EV motors in which a portion of the neodymium was replaced with lanthanum and cerium, targeting up to 50% reduction in critical rare-earth content, with intended use in electrified powertrain motors [S4]. The same family of Ce-containing sintered magnets is also widely deployed in air-conditioner compressor motors and refrigerator compressor motors, where the flux demand is lower and the duty cycle is more forgiving than traction [S8].
Industrial permanent-magnet motor categories, including PMDC (permanent magnet DC), PMAC (permanent magnet AC / brushless), and interior permanent magnet (IPM) servo-style machines, are all candidates for Ce-substituted grades when the (BH)max and Hcj window suits the design [S7]. In a practical sense, the rule of thumb many motor designers use: if the magnet can be physically grown in size by 10-20% to make up the flux deficit of Ce substitution, the motor can be redesigned around Ce-containing NdFeB without losing rated performance; if the rotor volume is already constrained, the substitution is not viable.

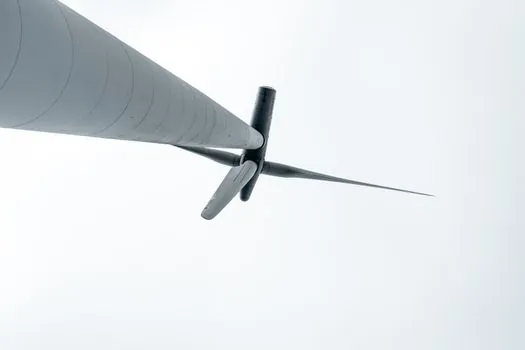

Limits that block Ce-substitution in traction and large wind generators
Ce-substituted grades lose intrinsic coercivity faster than Nd-only grades as temperature climbs, because the Ce₂Fe₁₄B phase has lower magnetocrystalline anisotropy field than Nd₂Fe₁₄B. Sintered Ce-NdFeB therefore demagnetises earlier under the combined thermal and armature-reaction loads of a traction inverter or a multi-megawatt direct-drive wind generator, and is generally not specified for those duty cycles today [S2][S6].
A second hard limit is the maximum energy product: a high-torque-density EV traction motor or a direct-drive wind generator is already packaged against the volumetric energy density of N42SH-N48UH grade NdFeB. Replacing that material with a Ce-substituted grade at 30-40% lower (BH)max forces the designer into a longer, larger-diameter, or multi-pole rotor, which then changes the magnetic circuit, bearing span, and inverter current rating, so the substitution becomes a motor redesign rather than a magnet swap [S1][S3]. For readers comparing the broader material alternatives, the same trade shows up in our ferrite and alnico versus neodymium review, where the verdict is that no non-rare-earth material is a one-for-one substitute for NdFeB in a high-performance PM motor.
Cost, supply, and the OEM case for partial substitution
Adams Magnetic Media (2023-09-11) frames the trade as: "magnets containing cerium are a bit weaker than traditional neodymium magnets, but they can be used in less demanding applications" [S3].
ORNL's formulation pushes beyond Ce-substituted NdFeB into a Ce-Fe-Co-Zr base alloy, with optional TiC additions up to 4 wt%, hafnium, titanium, and tungsten as partial substitutes for zirconium, and a target energy product approaching 40 MGOe, explicitly aimed at EV motors, wind turbines, and electronics, while reducing reliance on scarce Nd and Sm [S1]. Toyota's earlier disclosure (2018) of La/Ce co-substitution reducing critical rare-earth content by up to 50% is the most-cited OEM data point, though the operating-temperature window of the disclosed magnet grade remains lower than premium NdFeB SH/UH series [S4].
Standards, sourcing, and what the spec sheet must show
No ISO or IEC standard currently defines a "Ce-NdFeB" grade family: procurement is still done by mapping Ce-containing grades to the established NdFeB grade nomenclature (N28EH, N35SH, etc.) on the same IEC 60404-8-1 classification basis, with the buyer specifying minimum (BH)max, minimum Hcj, and maximum reversible temperature coefficient of Br [S6]. Buyers should also require a Curie temperature figure and a closed-circuit B-H curve at 20°C, 100°C, and 150°C, because Ce-containing grades shift the knee of the demagnetisation curve in ways that are not always visible from room-temperature data alone [S2].
On sourcing, the dominant supply chain for both Nd and Ce oxides is still Chinese separation capacity, so a "Ce-substitution reduces supply risk" claim is only partly true: it cuts exposure to Nd/Pr/Dy price spikes but keeps the buyer tied to the same separation and metallisation infrastructure. For motor designers, the practical sourcing question is whether a Ce-containing grade is on the vendor's published short-form catalog with a stable Hcj specification, which is what HVAC and appliance-motor OEMs typically require [S3][S8].
Selection rule of thumb for motor design and procurement
Use Ce-substituted sintered NdFeB when the motor's continuous operating temperature is at or below ~150°C, the rotor volume has 10-20% headroom to grow, and the application tolerates a (BH)max in the 28-40 MGOe band: HVAC compressor motors, refrigerator compressor motors, lower-power PMAC fans and pumps, e-bike hub motors at de-rated torque, and auxiliary EV motors all sit in this band [S6][S8].
Specify full NdFeB (N38SH, N42UH, N52, etc.) when the motor is traction-class, the rotor is volume-constrained, the continuous service temperature exceeds ~180°C, or the application requires high specific torque per ampere: EV traction machines, direct-drive wind generators, industrial servo motors, and aerospace actuators all fall in this group and are not currently re-designable around Ce substitution without a step-change in motor architecture [S1][S3][S7]. For the wider motor-system integration view, including the PLC and servo-drive side of the control loop, see our servo motor selection reference and the related discussion of industrial valve actuation where the same NdFeB-versus-rare-earth-light decision is playing out in process-plant hardware. Track the next two signals: any IEC or ISO working-group publication defining a Ce-NdFeB grade family, and OEM disclosures (Toyota, BYD, GM, Volkswagen) of Ce-containing grades qualified to traction duty with sustained 150-180°C operation.
