A check valve is a self-actuating non-return device that closes when forward flow reverses, while a gate valve is a manually or actuator-driven isolation device that lifts a wedge out of the flow path to open and drops it back to shut. On 2026-06-25 sourcing channels, Chinese API 602 forged steel valve makers such as NSW list check valves, gate valves, and ball valves as three distinct families in their forged-steel catalog [S2].
Function is the dividing line: a check valve has no external handle or stem and reacts to differential pressure (typically 0.3–0.5 bar cracking pressure for swing checks, lower for nozzle-type designs) [S1]. A gate valve requires a handwheel, gear operator, or actuator to drive the stem, with multi-turn rotation to traverse the disc. Both families appear together in the same waterworks tender books — Qingdao Huaguan Valves, a 1986-founded Chinese maker, lists resilient-seated gate valves, knife gate valves, butterfly valves, and check valves in a single DN40–DN1200 mm range with PN10/16 pressure rating across the line [S3].
Functional Definition and Operating Principle
A check valve — also called non-return valve per bilingual engineering terminology [S4] — permits flow in one direction only. The disc opens under forward flow and reseats when flow stops or reverses. The two most common constructions are swing check (hinged disc, gravity-assisted closure) and lift check (disc lifts vertically, requires straight pipe run).
A gate valve — termed gate valve or slide valve in standard engineering glossaries [S4] — uses a flat or wedge-shaped gate moved perpendicular to the flow to start or stop it. When fully open the gate is fully retracted above the seat bore; when fully closed the gate is fully engaged against the seats. Because the disc is out of the flow when open, pressure drop across a fully open gate valve approximates that of an equivalent length of pipe — typically expressed as a low flow resistance coefficient relative to a globe or angle valve.
The two devices are not interchangeable. Check valves cannot perform positive isolation because they depend on flow condition; gate valves cannot prevent reverse flow because they have no self-actuating closure mechanism and require a discrete command.
Selection Criteria: When the Spec Demands One, Not the Other
Specifying a check valve is correct when the duty is backflow prevention on a pump discharge, compressor outlet, or line where reverse flow would damage equipment or contaminate a process. Specifying a gate valve is correct when the duty is line isolation for maintenance, sectioning a piping system, or infrequent full-open/full-closed service. [S1]
Three decision gates filter the choice: (1) is the function automatic or commanded? automatic → check; commanded → gate. (2) Is throttling required? throttling → not a gate (gate disc erosion on partial open); a globe valve or control valve is correct instead. (3) Is full-bore, low-pressure-drop flow needed in the open state? open-state pressure drop → gate valve wins; check valve internals remain in the flow path even when fully open.
For waterworks, pump stations, and fire mains, dual-valve assemblies (gate + check) on the pump discharge are routine: the gate provides positive isolation for pump maintenance; the check prevents return flow through the idle pump. This pairing is the textbook ANSI/HI pump-piping arrangement.
Comparison Table: Check Valve vs Gate Valve on Four Spec Criteria
Four decision criteria line the two families up for direct comparison. (1) Function: check = backflow prevention, automatic, no operator; gate = isolation, commanded, multi-turn handwheel or actuator. (2) Flow path in open position: check retains disc in flow (swing disc lifted off seat but still in bore), so flow coefficient (Cv) is lower than a full-bore gate; gate retracts disc fully out of bore, achieving near-pipe-equivalent Cv. (3) Pressure rating: both families are produced in PN10, PN16, PN25, PN40, and ANSI Class 150–1500 in standard catalog ranges; Huaguan's published range runs DN40–DN1200 mm at PN10/16 across the line, including both check and gate families [S3]. (4) Service limitation: check valves are not suited for pulsating flow (chatter) or very low differential pressure below cracking pressure; gate valves are not suited for throttling or frequent cycling (seat erosion).
Construction Types Within Each Family
Under the check valve umbrella the engineer must pick a sub-type. Swing check (hinged disc, gravity return) is the most common waterworks choice; lift check (piston or ball lift) suits vertical upward flow and steam service. A swing check valve is the default for pump discharge and large-bore water lines. For slurries, pulp, and mining service, a knife gate valve — though technically a gate family member — is often mis-bid as a check, and the engineer must confirm whether the duty is throttling/isolation (knife gate) or backflow prevention (swing check) before ordering. [S2]
Under the gate valve umbrella the sub-types are: resilient-seated (EPDM or NBR encapsulation of the wedge, used in potable water and wastewater, PN10/16) [S3]; metal-seated (wedge and seat both hard-faced, for high-temperature or hydrocarbon service); knife gate (sharp-edged gate for slurry, pulp, paper stock); and API 602 forged gate for high-pressure hydrocarbon. NSW's API 602 forged steel line carries gate, globe, and check as the three core forged products, with additional butterfly, ball, plug, and cryogenic variants [S2].
Materials track service: cast iron body with EPDM-encapsulated wedge for municipal water (PN10/16, DN40–DN1200) [S3]; carbon steel (WCB, LCC) and stainless (CF8, CF8M) for chemical and petrochemical [S2]; low-temperature carbon steel (LCC) and stainless for cryogenic and LNG service. Seat materials track temperature and chemical compatibility: metal-to-metal for above ~230 °C, soft-seat (PTFE, EPDM, NBR) for tighter shutoff at lower temperatures.

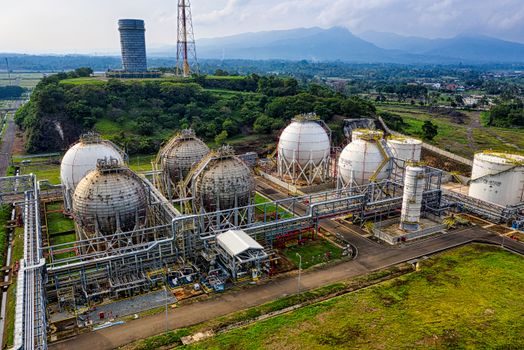

Standards, Testing, and Sourcing Reality in 2026
The relevant standards for both families are API 6D (pipeline valves, end-to-end dimensions), API 602 (forged steel gate, globe, and check), ASME B16.34 (valve pressure/temperature ratings), and EN 1171 / EN 12334 for gate and check at PN ratings. Fire-service gate and check carry API 6FA or API 607 fire-test certification. Sourcing in 2026 remains concentrated in Chinese foundry clusters: NSW (forged steel, API 602) and Huaguan (waterworks, DN40–DN1200, PN10/16) are listed manufacturers with published catalog ranges covering both families in the same product line [S2][S3].
Material traceability demands MTC EN 10204 3.1 for pressure-retaining parts on any valve that ships into the EU or for hydrocarbon service. A spec gate that requires MTC 3.1, hydrostatic test per API 598 or EN 12266, and dimensional certificate per ANSI B16.10 / EN 558 shortlists suppliers rapidly — vendors that cannot produce all three at quote stage should be removed from the bid list.
Common Failure Modes and Selection Pitfalls
Check-valve failures cluster around three points: water hammer on rapid pump shutoff (mitigated by specifying a non-slam or center-guided design); seat wear from particulate (specify hardened seat or downstream strainer); and disc hang-up on a swing check installed in a non-vertical orientation. Gate-valve failures cluster around: seat erosion from throttling service (gate is not a control valve); packing leakage from infrequent use (gland packing dries and shrinks); and bottom-seat corrosion in valves left in the open position for years, which can prevent reclosure. [S3]
For waterworks pumping stations the spec should pair a gate valve on the suction and discharge isolation positions with a check valve on the discharge only, sized by pump flow and specified with a non-slam option if the system has a long discharge run. For hydrocarbon and petrochemical service the spec should default to API 602 forged gate and check from a vendor carrying the full forged family [S2], and price comparisons must hold size, class, material, and MTC 3.1 constant to be valid — material and lead time swing price more than any other variable. For a broader cost view across the valve family, the globe valve 2026 cost guide is a useful adjacent reference for the same cost-banding logic.
