A 25 mm × 6 mm copper flat bonded to the system ground, No. 18 AWG tinned-copper twisted-pair instrumentation cable rated 300 V, and 24 VDC field instruments are the three load-bearing elements that recur across copper-process control specifications [S3][S4].
The bundle matters because every other layer of a copper-concentrator or hydrometallurgical control loop — analyzers, control valves, PLC I/O, and VFD skids — terminates into those copper conductors, shields, and grounding bars [S1][S3][S4][S6].
Instrumentation Cable: Conductor, Shield, and Jacket Construction
OSU Division 40 specifies instrumentation analog signal cable as No. 18 AWG stranded tinned-copper conductors, polyethylene insulation, twisted pair, 100%-coverage aluminum-polyester shield, No. 20 AWG stranded tinned-copper drain wire, and a vinyl outer jacket, UL Listed for 300 V indoors, above grade, or inside control panels [S3].
That construction — tinned copper rather than bare copper, foil shield at 100% coverage, and a dedicated drain wire — is the dominant pattern in copper-plant specs because tinning survives the humid, mildly acidic atmosphere of SX-EW building ventilation, and the 100% foil is mandatory when the same tray carries 4-20 mA loops next to 480 V VFD feeders [S3][S6]. The 300 V rating is not a power rating; it is a working-voltage ceiling that forces the analog loop off any cable sharing a conduit with motor circuits above that potential [S3].
System Grounding: Copper Flat Bars, Cable Shields, and Panel Earth
The BPSCL boiler C&I spec ties the system ground to a copper flat of minimum 25 mm × 6 mm cross-section, with the screen of every instrumentation cable bonded to that flat at the panel/cabinet end through suitable terminals [S4].
That same document states the screen is grounded at one end only — the panel — a single-point bonding rule that prevents shield currents from inducing 4-20 mA drift on long runs between field and control room [S4]. The 25 mm × 6 mm copper flat is sized to carry both the safety earth and the instrumentation shield return path; undersizing it lifts earth impedance and degrades the noise rejection the foil shield is supposed to deliver [S4]. For related cable and wiring detail the control cable reference covers shield-drain and jacket conventions in industrial settings.
Field Devices: Materials, Accuracy, and 24 VDC Loop Power
San Diego SPEC 13300 calls for process covers, connectors, and block-and-bleed valves in 316 stainless steel, topworks in low-copper die-cast aluminum with epoxy paint finish, integral indicators with linear scale calibrated in process units, and a 24 VDC power supply with accuracy specified including linearity and repeatability [S1].
Two material choices stand out. 316 stainless on wetted parts is the default for copper-leach service because chloride pitting in raffinate and electrolyte circuits would attack 304 within months [S1]. Low-copper die-cast aluminum on the topworks is the opposite trade — aluminum saves weight and cost, but the spec caps copper content to keep the housing non-sparking and ATEX-friendly in dust-laden areas around crushing and conveying [S1]. The 24 VDC loop is the third anchor: it matches modern PLC analog-input modules, lets the same two-wire pair carry HART alongside 4-20 mA, and removes the legacy 110 VAC instrument bus that older copper concentrators still run [S1][S3].
Control Architecture: PLC, VFD, and Fiber-Optic Backbone
The Gunnison Copper wellfield transmits operational data from field instrumentation over fiber-optic cables to the control room, with VFD skids on the mining-block perimeter drawing power from a central skid near the transformer [S6].
OSU Division 40 names Hirschmann MACH104-20TX-FR as the redundant managed-switch reference, fed from redundant 120 VAC power with plug-in terminal blocks, and groups process-control wiring as a discrete spec line under section 40 95 73 [S3]. The architecture splits into three physical layers: the 24 VDC analog layer (copper twisted pair, [S3]), the 120 VAC control-power layer (redundant feeds to switches, [S3]), and the fiber layer between wellfield and control room (immune to ground potential rise across the leach pad, [S6]). Copper conductors are deliberately confined to the field and panel ends; once the run exceeds roughly 100 m or leaves the equipotential bonded area, the spec flips to fiber [S3][S6].
Process Analyzers and Control Strategies in Copper Concentrators
Copper processing plant design guidance specifies online analyzers — particle-size monitors and XRF slurry analyzers — for real-time data, with expert systems and control strategies that automatically adjust reagent dosage against measured feed grade, and with experienced operators retained to read froth appearance for fine-tuning [S5].
The control loop is a closed one. XRF on the flotation feed slurry updates the setpoint for reagent dosage, particle-size data drives the mill-cyclone pressure setpoint, and the operator's froth read trims the air and frother setpoints every few minutes — three signals, three time constants, one stable cell [S5]. The online analyzers terminate on 4-20 mA plus digital protocols into the same twisted-pair cable spec covered above, which is why the cable section was written first: pick the wrong shield and the XRF signal-to-noise ratio collapses before the control strategy can do any work [S3][S5].
Comparison: Where Each Copper Element Goes in the Loop
Four decision criteria separate the three main copper-bearing items in this spec family. The No. 18 AWG tinned-copper twisted pair (300 V, Al/polyester shield, drain wire) scores low on cost per metre, high on noise rejection, low on voltage class, and is rated for indoor/above-grade tray only [S3]. The 25 mm × 6 mm copper flat (system ground) scores high on current-carrying capacity, high on mechanical durability, and is single-point bonded at the panel end to break ground loops [S4]. 316 stainless wetted parts (process covers, block-and-bleed valves) score high on chloride resistance, high on cost, and are mandatory for copper-leach service [S1]. Low-copper die-cast aluminum topworks score low on cost and weight, high on corrosion resistance, and low on copper content to keep the housing non-sparking [S1]. The 24 VDC loop power rails tie all four together by giving every field device the same supply rail the PLC analog modules expect [S1][S3].

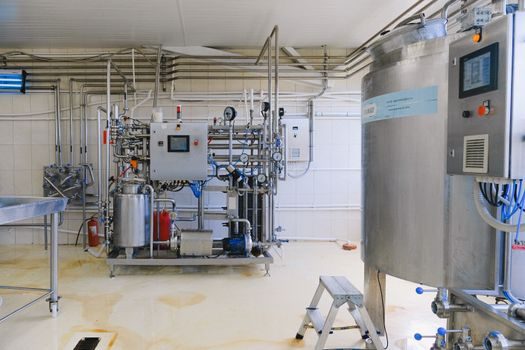

Limitations, Failure Modes, and Boundary Conditions
Three constraints recur across the spec family. First, the 300 V UL rating excludes the same cable from any 480 V or 600 V feeder path — running analog signal cable in a VFD power conduit voids the listing and injects common-mode noise the 100% foil shield cannot reject [S3]. Second, the single-point shield-ground rule (panel end only) fails the moment a contractor grounds both ends to chase a lower impedance reading; the resulting 50/60 Hz shield current then appears as a 4-20 mA zero-shift in the control room [S4]. Third, low-copper aluminum topworks is not a free pass — the housing still requires an epoxy paint finish to seal the die-cast surface against copper-dust and sulfate mist, and any field repair that swaps the housing for a high-copper bronze component pulls the assembly out of the non-sparking envelope [S1]. For a deeper look at how a copper flat is bonded versus a bare ground rod in substations and on access-controlled plant perimeters, the access control and control valve encyclopedia entries cover the panel and field-side boundaries.
The next trackable signals are the publication of any 2026 update to OSU Division 40 section 40 95 73, the release of revision R04 to the BPSCL-style copper-flat grounding clause (currently R03), and any Gunnison-class wellfield addendum that names the fiber-optic cable type (single-mode vs multimode) explicitly rather than leaving it as "fiber-optic" [S3][S4][S6]. The copper material encyclopedia entry is the right cross-reference for readers who need the upstream metallurgical grades that these instruments are measuring.
