Linear Actuator Selection for Packaging Lines: 2026 Spec Map

Table of Contents
  1. Forces, Strokes, and the Sizing Formula
  2. Electric, Pneumatic, and Hydraulic Compared
  3. Who Electric Actuators Fit, and Where They Do Not
  4. Feedback, Control, and Power Architecture
  5. Standards, Ratings, and Failure Modes
  6. Selection Checklist for a Packaging Axis
Linear Actuator Selection for Packaging Lines: 2026 Spec Map

On a packaging line, an electric rod-style linear actuator sized by F design = (W·μ + F process)·SF is the most common choice for 2-12 in guide-rail and stop motions, with pneumatics kept for sub-0.2 s reject strokes where electric units cannot meet cycle time [S1][S7].

Packaging axes fall into three buckets by stroke and cycle: short changeover moves (typically 50-300 mm) at low to moderate cycles, precision cut/seal axes at 0.1-1 m with micron-level repeatability, and reject or divert axes under 200 ms. Sizing the same way for all three is the most common engineering mistake; the formula, the safety factor, and the actuator family all change with the duty profile [S1][S5].

Forces, Strokes, and the Sizing Formula

Packaging actuators must clear both force and speed, not just the lb rating; the published force is at 25% duty, 25 °C, with no side load [S1]. Sizing starts with F design = (W·μ + F process)·SF, where W is the weight on the sliding axis, μ is the bearing friction coefficient (typically 0.05-0.15 for recirculating ball rails on steel, 0.2-0.4 for plain polymer slides), F process is any extra load from product contact, seal drag, brush pressure, or a light jam, and SF is the safety factor (commonly 1.5-2.0 for packaging, 2.0-3.0 where a stall would damage product) [S1].

Stroke on packaging changeover axes usually lands between 50 mm and 300 mm; common values are 100 mm (4 in) for carton width changeover, 150-200 mm (6-8 in) for case sealer rails, and 50-75 mm (2-3 in) for stop and divert blades [S1]. After stroke is fixed, the required velocity v = S ÷ t must be checked: a 100 mm stroke that has to complete in 0.4 s demands 250 mm/s, which most 24 V rod actuators can deliver, while a 0.2 s reject stroke at 50 mm requires 250 mm/s with very high acceleration and is usually handed to pneumatics [S1][S7].

Load assessment must cover both static and dynamic cases. Static load is the mass the actuator holds without movement; dynamic load is the force to accelerate that mass at the required cycle rate. For a 5 kg pusher at 2 m/s² acceleration, dynamic load is 10 N before friction, and SF pushes the design figure above 30-50 N for most polymer-on-steel slides [S2].

Electric, Pneumatic, and Hydraulic Compared

Three actuator families compete on packaging lines: electric rod actuators, pneumatics, and hydraulics, with belt-driven and ball-screw stages as higher-end electric variants. Each trades off on speed, cleanliness, control, and cost [S3][S5][S7].

Electric rod actuators (typically 12 V or 24 V DC) are the default for guide-rail changeover, width setting, and stop positions. They give repeatable position via internal limit switches or analog feedback, run clean, and integrate with PLCs and recipe systems, but cap out around 100-200 mm/s for typical industrial units, with peak loads in the 1,000-6,000 N range for 24 V industrial frames [S3][S7].

Pneumatic cylinders remain the speed champion for short, repetitive strokes in bottling, packaging, and pick-and-place, where sub-200 ms strokes at low force are acceptable. They are simpler and cheaper than electric at high cycle rates, but they need a compressor, dryer, and FRL, and they cannot hold precise position without added position sensors or proportional valves [S7].

Ball-screw and belt-driven electric linear stages serve the precision and high-speed ends of packaging. Sealed ball-screw actuators deliver micron-level repeatability for filling and cutting, at the cost of stroke-limited length and a need for clean or sealed lubrication; belt-driven units cover long-stroke film and web advance at lower cost per millimeter of stroke but lower thrust and accuracy [S5][S8].

The selection rule that survives the most audits: electric rod for changeover and stop, ball-screw electric for precision cut/seal, belt-driven for long web advance, pneumatic only when a 0.2 s snap stroke is non-negotiable [S1][S5][S7].

Who Electric Actuators Fit, and Where They Do Not

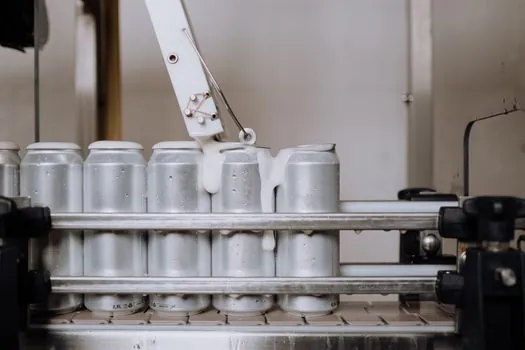

Linear Actuator selection for packaging lines - Who Electric Actuators Fit, and Where They Do Not
Linear Actuator selection for packaging lines - Who Electric Actuators Fit, and Where They Do Not

Electric rod actuators fit packaging axes that need controlled position, recipe-driven changeover, or moderate cycling in a clean or washdown environment, and where the line already runs 24 V DC or a small 3-phase bus. They are wrong for axes that need a 0.2 second snap stroke every cycle, for outdoor unprotected installs where water and dust are constant, and for any axis where side load on the rod is unavoidable without a parallel linear guide [S1][S2].

For more aggressive ambient duty (foundry, steel, food washdown with daily high-pressure cleaning), reference selections like the steel mill linear actuator picks cover IP65K/IP67 sealing, food-grade lubricants, and 100% duty at elevated temperature; the duty-cycle, IP, and force gates in that map apply directly to packaging washdown zones [S1].

Packaging lines adjacent to conveyors also share hardware and mounting standards with carton erector selection; a cold chain carton erector spec map covers the same 24 V DC rod-actuator family plus IP ratings and FDA/HACCP-zone requirements that overlap with food and pharma packaging lines.

Feedback, Control, and Power Architecture

Feedback options range from internal end-of-stroke limit switches (two-position, no mid-stroke info) to analog position pots (0-10 V or 4-20 mA), Hall-effect pulse counters, and absolute encoders. For recipe changeover, a potentiometer or encoder is mandatory; for a simple in/out stop, end-of-stroke switches are usually enough [S1][S2].

Supply voltage on packaging lines is dominated by 12 V DC and 24 V DC rod actuators, with 24 V DC the industry default because of lower current draw at the same force and easier PLC sourcing. Three-phase 230/400 V AC ball-screw and linear-servo stages appear on higher-end form-fill-seal and converting machines, where continuous high force and high duty justify the larger supply [S3][S10].

On the mechanical side, a linear bearing running parallel to the actuator rod is non-negotiable for any stroke over 50 mm or any load over 20 kg, because rod-style actuators are not designed to take side load; bearing life drops sharply and seals wear prematurely when a rod actuator is used without a parallel guide [S1][S9].

Standards, Ratings, and Failure Modes

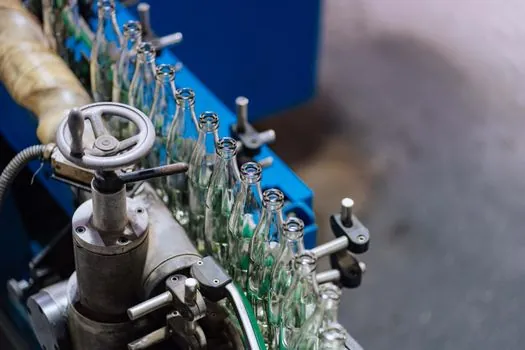

Linear Actuator selection for packaging lines - Standards, Ratings, and Failure Modes
Linear Actuator selection for packaging lines - Standards, Ratings, and Failure Modes

For washdown and food-zone packaging, IP65 is the minimum acceptable rating, with IP66 or IP67 specified for daily high-pressure cleaning. The actuator's published force is rated at 25% duty cycle and 25 °C ambient; at 100% duty in a 40 °C enclosure, derate by 30-50% or specify a higher-capacity frame [S1][S10].

The most common packaging-line failure modes are: stalling 0.25 in short of stroke because force was sized only on product weight and not on friction plus process drag, side-load rod failure from missing parallel guides, and premature seal wear from washdown chemicals incompatible with NBR or standard polyurethane seals [S1]. Specifying the actuator to the formula rather than the catalog headline, and pairing it with chemically compatible seals, is what separates a 5-year service life from a 1-year one.

Selection Checklist for a Packaging Axis

Walk the spec in this order, and the actuator family falls out: (1) define stroke S and available move time t, then check v = S ÷ t against the actuator's no-load speed at 25% duty; (2) calculate F design = (W·μ + F process)·SF with SF = 1.5 for routine changeover, 2.0-3.0 for jam-critical axes; (3) confirm IP rating against the zone (IP65 minimum in washdown, IP67 for daily high-pressure cleaning); (4) pick feedback (switches for in/out, pot or encoder for recipe); (5) decide on a parallel linear bearing when stroke > 50 mm or load > 20 kg; (6) only then choose between rod, ball-screw, belt, or pneumatic [S1][S2][S5][S7].

Trackable signals through Q1 2027: IP66K/IP67 sealed 24 V DC rod frames showing up as standard catalog SKUs rather than specials, and a slow shift from pneumatic reject to electric on lines under 60 cycles per minute where the 0.2 s snap is no longer the gating constraint [S1][S5][S7].

For component-level specifications, see logistics packaging.

Frequently asked questions

What sizing formula should engineers use to size an electric linear actuator on a packaging line?

Use F design = (W·μ + F process)·SF, where μ is typically 0.05-0.15 for recirculating ball rails on steel or 0.2-0.4 for plain polymer slides, and the safety factor SF is 1.5-2.0 for standard packaging or 2.0-3.0 where a stall would damage product. The published actuator force rating only applies at 25% duty, 25 °C, with no side load, so this margin must be applied before any vendor catalog number is selected.

When should pneumatics be used instead of electric rod actuators on a packaging line?

Pneumatic cylinders are the right choice for short, repetitive reject or divert strokes under 200 ms, where a 50 mm stroke at 0.2 s demands 250 mm/s with very high acceleration that electric 24 V rod actuators (capped near 100-200 mm/s) cannot meet. For any controlled position, recipe-driven changeover, or precision cut/seal axis, electric rod or ball-screw units are preferred over pneumatics because pneumatics need a compressor, dryer, and FRL and cannot hold precise position without added sensors or proportional valves.

What stroke lengths are typical for packaging changeover, case sealer, and divert axes?

Packaging changeover strokes usually fall between 50 mm and 300 mm, with common values of 100 mm (4 in) for carton width changeover, 150-200 mm (6-8 in) for case sealer rails, and 50-75 mm (2-3 in) for stop and divert blades. Strokes above 50 mm or loads above 20 kg also require a parallel linear bearing running alongside the actuator rod to handle side load.

What feedback option is required for recipe-driven changeover on an electric packaging actuator?

A potentiometer or encoder is mandatory for any recipe-driven changeover axis, with options including 0-10 V or 4-20 mA analog position pots, Hall-effect pulse counters, and absolute encoders. For a simple in/out stop position, internal end-of-stroke limit switches are usually sufficient because no mid-stroke position information is needed.
