to 144 in. length band [S1][S2].
The decision tree starts with four inputs: pallet size and weight, lift-truck type, ceiling clear height, and seismic zone. Once those are locked, the column gauge, beam profile and frame depth fall out of the load tables. Most North American distributors stock teardout-style selective racking in 8 ft and 10 ft vertical increments, with 42 in. or 48 in. frame depths as the warehouse norm [S3][S4].

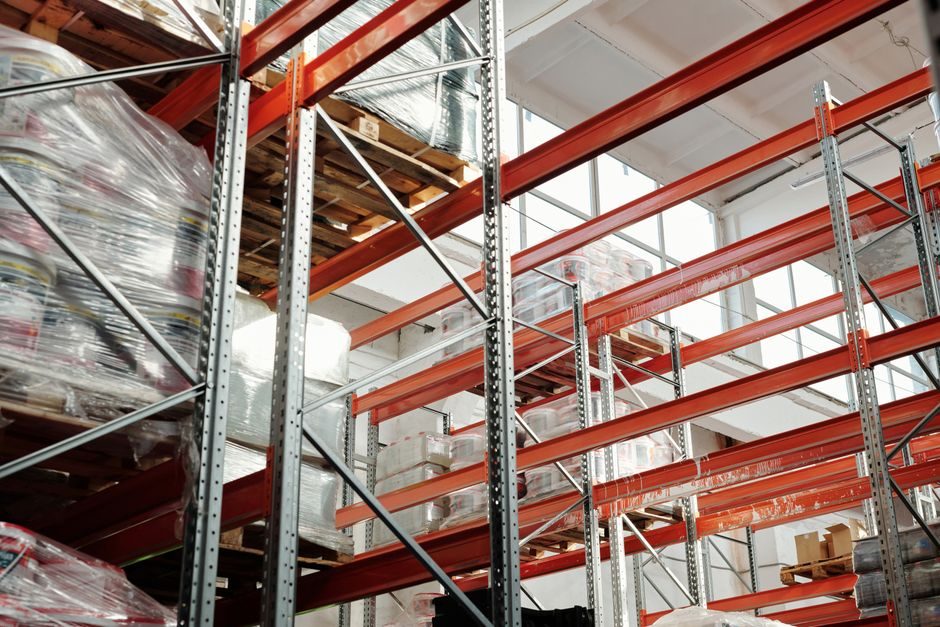

Frame and Column Geometry: Roll-Formed vs Structural
Roll-formed columns with 3 in. x 1-5/8 in. teardrop cross-sections and 14- or 15-gauge steel are the warehouse default, with common 40,000 lb per-frame capacity ratings tested under RMI/ANSI MH16.1 conformance [S1][S4].
Structural rack uses hot-rolled C-channels, typically 4 in. to 5 in. deep, 12-gauge or heavier, and is priced 30-60% above roll-formed equivalents, but absorbs forklift impact that would buckle lighter roll-formed bracing [S2]. Cold-rolled columns bend under a single hard hit; structural columns dent and stay in service. For high-traffic dock lanes or rental fleets where impact damage accumulates, structural frames earn their premium [S1].
Frame depth is the second lever: 42 in. frames accept a single 48 in. GMA pallet with 3 in. overhang front and back, while 48 in. frames give a more generous 6 in. overhang and reduce load-bearing deflection on heavier GMA or block pallets [S3]. Distributors in Miami and the Southeast commonly ship 42 in. and 48 in. depths from local stock with 1-2 week lead times, versus 4-6 weeks for custom 54 in. or 60 in. depths [S1][S3].
Beam Length, Load Rating and Wire Deck Sizing
Beam pairs are typically rated 4,000 lb, 5,000 lb or 6,000 lb per pair, with 96 in. (8 ft), 108 in. (9 ft) and 144 in. (12 ft) being the most inventoried lengths across the US distributor channel [S2][S4]. Beam step (the rectangular key that locks into the teardrop slot) is 1-1/2 in. on conventional selective racking, which is why mixing brands inside a single upright frame is generally avoided unless the manufacturer has documented cross-brand compatibility [S3].
Wire mesh decks add 2-4 lb per square foot of dead load and are required by fire code in most US jurisdictions for loads stored over 12 ft, because solid shelving blocks in-rack sprinkler spray [S2]. Standard decks are 46 in. x 20 in. and 46 in. x 24 in. for 96 in. beams, and 58 in. x 20 in. for 144 in. beams; corrugated steel decks run heavier (8-10 lb per square foot) and add rigidity to long-span beams [S1][S4].
Row spacers, aisle end guards and frame protectors are the three accessories that show up on every quote: row spacers tie back-to-back frames together and add 10-20% to total frame capacity, while column guards (typically a 4 in. x 4 in. steel sleeve welded to the floor plate) cost around $40-80 each and prevent the most common damage mode in the warehouse, which is a forklift hitting the upright base [S2][S3]. For more on the spec logic behind these numbers, see the storage rack specifications and datasheet guide.

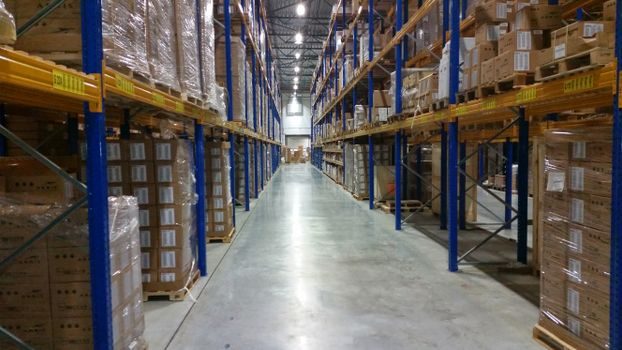

Aisle Width, Forklift Class and Throughput Math
Counterbalanced (Class I) sit-down forklifts need a minimum 11-12 ft aisle for 96 in. deep selective rack, while stand-up reach trucks (Class II) drop that to 9-10 ft and turret trucks (Class IV) compress it to 6.5-7.5 ft for the same pallet size [S1][S4].
Each 1 ft of aisle reduction across a 10,000-position warehouse buys roughly 1,500-2,000 additional pallet positions on a typical 200 ft x 400 ft footprint, which is the economic engine behind narrow-aisle and drive-in rack retrofits [S2]. The trade-off is throughput: counterbalanced trucks cycle at 60-80 pallets per hour, reach trucks at 40-50, and turret trucks at 30-40, so the densest storage format is rarely the fastest. The right choice depends on SKU velocity, not just square footage [S1][S3].
For comparison, the four main selective-rack configurations line up as: (1) Standard selective, 11-12 ft aisles, 100% SKU selectivity, 60+ pallet cycles/hr; (2) Double-deep selective, 13-15 ft aisles, 50% selectivity, 45 cycles/hr; (3) Drive-in/drive-through, 6-pallet deep, 25% selectivity, 20 cycles/hr, 60% density gain; (4) Push-back, 2-6 pallets deep on inclined carts, 40-50% selectivity, 30-40 cycles/hr [S2][S4].
Pallet Type, Load Geometry and Seismic Multipliers
GMA 48 in. x 40 in. A 48 in. x 40 in. GMA loaded to 2,500 lb needs only 3 in. of beam overhang per side, but a 48 in. x 48 in. block pallet loaded to 3,500 lb needs 6 in. to keep beam deflection below the 1/180 span limit [S2][S4].
Seismic zone matters as much as load: in IBC Seismic Design Category D and above, RMI-published seismic design coefficients (typically a 0.7-1.2 g effective acceleration) drive frame anchoring, base-plate thickness and cross-aisle bracing requirements upward, and often push specifiers from roll-formed to structural columns purely for the higher ductility [S1][S2].
New vs Used, Lead Times and Channel Inventory
New selective rack lead times ran 6-10 weeks in mid-2026 at major US distributors, while used rack from liquidated 3PL facilities was available in 1-2 weeks at 40-60% of new price, but with no manufacturer warranty on beam connectors [S3][S4].
Used beam-and-step connections are the failure point to inspect: the teardrop slot deforms over time and a step on a previously overloaded beam can be visibly bent, which is a rejection criterion, not a discount point [S3]. The big distributors (Atlanta, New Jersey, Georgia, Pennsylvania) all stock both new teardrop systems and a continuous used inventory, and the lead-time gap is the main reason specifiers fall back to used for capacity-fill projects while reserving new for greenfield builds [S1][S2][S4].
Inspection, Re-Certification and the EN 15635 / RMI MH16.3 Overlap
European EN 15635 and US RMI MH16.3 both require annual visual inspection of beam-to-column connections, frame plumb (verticality tolerance typically L/200), and post-impact assessment, with damaged components tagged red and removed from service [S1][S2].
A practical floor check: plumb the frame with a 4 ft level on the column face, measure the gap at top and bottom; if it exceeds 1/2 in. per 10 ft of height, the frame has been struck and needs replacement, not shimming [S3]. Beam end clips (safety pins that prevent accidental dislodgement) cost under $1 each and should be present on every beam pair; a missing pin is the most common audit finding in OSHA warehouse inspections [S2][S4]. For the maintenance-side workflow, see the storage rack calibration and maintenance guide.
Pallet rack is mature engineered product: matching frame gauge, beam rating, deck type and aisle width to your pallet, lift-truck and seismic zone delivers a 20-25 year service life with no surprises, and the most expensive mistakes are almost always spec-side (under-rated beams, wrong aisle width) rather than product-side. Two trackable signals for the next 12 months: RMI MH16.1 specification updates driven by updated IBC seismic maps, and continued automation-driven pressure to retrofit conventional selective racking with wire-guided or rail-guided turret-truck aisles in mid-sized US DCs.
