Timing belt selection for agricultural machinery is governed by the same five variables as any industrial synchronous drive: tooth profile, pitch, belt width, belt length, and belt material, and getting any of them wrong on a combine, baler, or seeder means unscheduled downtime during peak season [S4].
Most tractor-mounted implements and stationary farm equipment run on drives between 0.5 kW and 15 kW with speed ratios from 1:1 to 4:1, center distances of 200-600 mm, and operating temperatures from -20 °C in winter to +80 °C in engine-adjacent installations, all of which constrain profile, pitch, and compound choice [S2][S4].
Tooth Profile and Pitch: Trapezoidal vs Curvilinear for Farm Drives
Trapezoidal profiles (MXL, XL, L, H, XH, XXH imperial; T2.5, T5, T10, AT5, AT10 metric) are the lowest-cost fit for light-duty agricultural conveyors, small seed-metering augers, and PTO-adjacent accessories, while curvilinear profiles (HTD 3M/5M/8M/14M and GT/GT2/GT3) are the better match for high-torque combine headers, round baler belt drives, and forage chopper rotors because the rounded tooth distributes load over a larger contact area and reduces backlash [S4].
Pitch is the load-capacity lever inside each family: for example, an 8M (8 mm) curvilinear belt typically carries roughly 2-3x the torque of a 5M belt at the same width, but it also forces a larger minimum pulley diameter and a larger bend radius, which can be a packaging problem inside a seed-meter housing [S4]. A practical rule for compact farm drives is to start at 5M for under 1 kW, step to 8M for 1-5 kW, and reserve 14M for 5 kW and above [S4].
For a criteria-based comparison, the typical drive requirement vs recommended profile line up as follows: miniature or sensor drives use 3M or GT2 2mm; light-duty farm conveyors use 5M (curvilinear) or XL (trapezoidal, 1/5 inch = 5.08 mm pitch); medium-duty implements such as manure spreaders and small balers use 8M or L (3/8 inch = 9.525 mm); heavy-duty headers and large balers use 14M or H (1/2 inch = 12.7 mm) [S4]. When in doubt on a new agricultural design, the 8M HTD profile is the most commonly specified default in the 1-5 kW range because it balances torque capacity, pulley availability, and cost [S4].
Width, Length, and Pulley Face Geometry
Belt width is sized to the design torque once profile and pitch are fixed, and the standard guidance is to select a belt width capable of handling design torque with the selected pulley size, then verify the resulting system width is the greater of the two [S2]. Narrow belts save cost but overload the tooth root; over-wide belts waste money and increase bending hysteresis.
Pulley face width must be at least belt width plus 1-2 mm clearance on each side, and wider belts distribute load more evenly and last longer at equivalent torque because each tooth shares a smaller fraction of the total load [S7]. For agricultural drives exposed to dust and chaff, the extra 1-2 mm of side clearance also reduces edge debris packing, which is one of the most common causes of premature tooth shear in the field [S7].
Belt length is set by the center distance and the driver/driven tooth count, and Misumi's automatic calculation tool covers the 2GT/3GT, EV5GT/EV8YU, P_M/UP_M, and MXL/XL/L/H/S_M/MTS_M/T series through the equation Design Power (Pd) = Transmission Power (Pt) × Overload Factor (Ks), where Ks = Ko + Ki + Kr + Kh for normal motors and adds Km (start/stop factor) for servo-driven systems [S5].

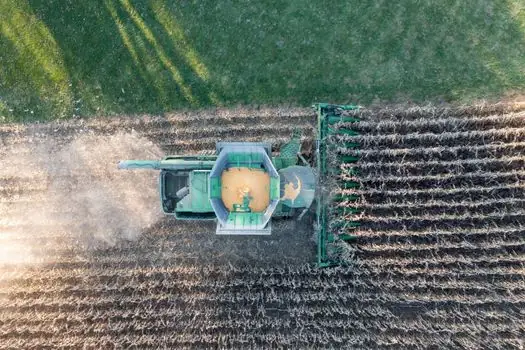

Materials and Compounds for Dust, Chemicals, and Temperature
Neoprene (polychloroprene) is the default timing-belt compound for general agricultural use because it holds tooth profile under abrasive dust and tolerates typical farm chemical exposure, and most production belts add a nylon facing to further reduce tooth wear [S2]. Fiberglass, polyester, and aramid (Kevlar) cords are the three reinforcement options: fiberglass is the cheapest and adequate for stationary drives, polyester handles most mobile implement duty, and aramid is the choice for shock-loaded drives such as square baler needles and combine feeder reversers where peak torque can exceed 300% of rated motor output [S2][S5].
Polyurethane timing belts are FDA-cleared, abrasion-resistant, and dimensionally stable, making them the preferred compound for clean environments such as seed sorting lines, grain elevator controls, and feed-mill packaging, where black neoprene would shed particles or absorb oil [S2][S3]. A typical service-life figure for properly selected and tensioned industrial timing belts is 15,000-30,000 operating hours, though dust-choked agricultural environments usually land at the lower end of that band [S3].
A quick material/compound comparison for farm drives: neoprene + nylon facing suits general dust and outdoor use; polyurethane suits food/feed contact and clean washdown; aramid-cord construction suits shock-loaded, high-peak drives; and chloroprene with reinforced backing suits the high-temperature zones around tractor PTO pumps and hydraulic reservoir drives [S2][S3].
Load and Service Factor: How to Apply the Misumi Tables
Service factor Ks in the Misumi tables aggregates load character, idler presence, speed ratio, daily run hours, and start/stop frequency, and the load correction factor Ko for a belt conveyor handling ore, coal, or sand is 1.5 (intermittent 3-5 h/day) to 2.1 (continuous, with start/stop shock), which is a useful reference point for a manure spreader, forage blower, or grain auger [S5].
For a combine header or baler running 8-12 h/day continuously with high-torque shock, a Ko of 1.9-2.1 combined with a Kh of roughly 1.0-1.2 yields a design power of about 2-2.5x the motor's nameplate rating, which is why the 14M and H pitch tiers dominate these applications [S5]. If the prime mover is a single-cylinder engine, Ko steps up by one column in the Misumi table (e.g. 1.6 to 1.8) regardless of duty cycle, reflecting the higher cyclic-torque excursion [S5].

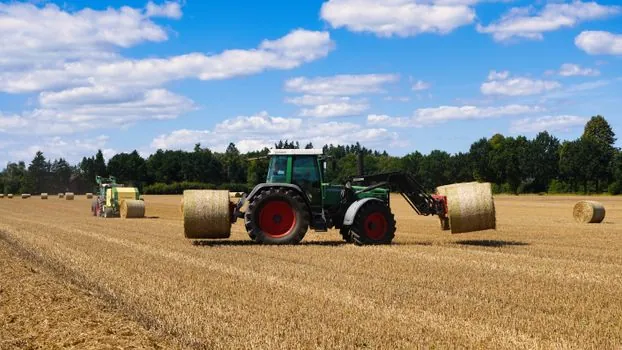

Maintenance, Tensioning, and Field Failure Modes
Timing belts require no lubrication, but three failure modes dominate agricultural service: tooth shear from dust ingress, cord failure from chronic over-tension, and tooth skip from under-tension or worn pulleys [S2]. The standard prescription is to inspect for cracks, wear, and frayed edges; monitor tension over time because rubber and polyurethane both relax; and replace based on operating hours rather than visible condition, since internal cord fatigue is not visible from outside [S3].
Correct tensioning matters because a belt that is too tight overloads the bearings and shortens cord life, while a belt that is too loose allows tooth skip and ratcheting under shock load, and supporting timing pulleys and belt tensioners are part of the same selection problem, not optional accessories [S3]. For a broader view of how synchronous drives compare with chain and V-belt systems in mobile equipment, see the related write-up on chain-belt systems and the timing-belt reference in the timing belt encyclopedia entry.
For non-synchronous V-belt applications in the same machines (PTO pumps, alternator drives, construction-machinery and agricultural compressor packages), the [V-belt selection guide for industrial compressors and agricultural machinery](S8, 2026-08) covers the parallel decision tree, and the related piece on forklift tire selection shows a similar five-variable spec-first approach for another mobile-equipment wear part.
Sourcing and Cross-Reference
For replacement belts, the fastest path is to read the part number off the old belt and cross-reference Gates, Continental, Bando, Megadyne, and OEM numbers through a distributor, since profile and pitch must match exactly between the old and new belt or the pulleys must be re-cut [S4]. If the part number is illegible, the belt must be re-identified from physical measurements: tooth count, pitch across multiple teeth, belt width, and overall length [S4].
Misumi's free online calculation tool (fawos.misumi.jp/FA_WEB/pulley_us/) accepts the nine required design conditions (machine type, power, load variance, daily run hours, small-pulley rpm, ratio, center distance, pulley diameter limits, and other usage conditions) and returns a candidate belt, pulley, and design power [S5]. For parallel coverage of drives that need slip-tolerant rather than synchronous behaviour, the V-belt selection guide referenced earlier covers heavy-duty agricultural and compressor applications [S8].
Trackable signals for the next update cycle: any new ISO 5293 or ISO 13050 revision touching agricultural synchronous drives, updated Misumi/FAWO tables for EV5GT/EV8YU series with explicit farm-machinery Ko defaults, and any OEM-published aramid-cord HTD 14M retrofit kits for legacy combine headers, all of which would shift the default pitch and material choices in this article.
