Five vertically integrated IDMs—Samsung, SK hynix (including Solidigm after the 2021 acquisition of Intel's NAND business), Kioxia, Micron, and YMTC—account for the overwhelming majority of global NAND wafer output, with fab capacity concentrated in South Korea, Japan, the United States, and mainland China [S2].
NAND flash is a non-volatile memory that stores charge on a MOSFET floating gate; cell density is classified by bits per cell—SLC (1 bit), MLC (2 bits, 4 levels), TLC (3 bits, 8 levels), and QLC (4 bits, 16 levels)—with each step multiplying threshold-voltage states and tightening endurance and error-correction budgets [S3].
Top-tier IDM fabs and product mix
Samsung's Pyeongtaek P1/P2 and Hwaseong lines produce V-NAND up to 290+ layers for consumer SSD (980/990 PRO/990 EVO Plus) and enterprise PM9A3/PM1743 series; output is split across TLC mainstream and QLC for high-density data-center SKUs [S2].
SK hynix combines its M15/M16/X3 (Cheongju) and M17 under construction with the Solidigm Dalian/SSD-Maple-Ridge fabs acquired from Intel, covering both client and enterprise PCIe 4.0/5.0 NVMe plus PLC research samples [S2].
Kioxia runs the Yokkaichi-Kitakami joint venture with Western Digital (Flash Partners Ltd) and the new K1 Iwate fab ramping 218-layer BiCS8 and 9th-gen BiCS toward 2027; product mix is dominated by TLC with QLC for consumer and capacity-tier SSD.
Micron's Singapore Fab 10A (Singapore) and Hiroshima (Japan, JX Fab) produce 232-layer TLC (G8) and 232-layer G9, with planned 1-gamma DRAM-adjacent NAND nodes and a 1-γ node for HBM/packaging only — Micron exited its 3D XPoint business, so its NAND stack stands alone [S2].
YMTC (Yangtze Memory Technologies Co.) operates Wuhan phase 1/2 and the new phase 3 expansion with 128-layer (TLC) and 232-layer X3-9070 QLC, sold through consumer-channel Zhitai/Adata plus domestic enterprise SKUs.
Cell-type spec lines and typical operating limits
SLC stores one bit per cell, delivers roughly 60,000–100,000 P/E cycles, and runs in industrial-temperature grades (−40 °C to +85 °C); it is the workhorse for code storage on pressure transmitter control boards and embedded PLC firmware, where long retention beats cost [S3].
MLC (2 bits/cell, 4 Vth levels) trades endurance down to roughly 3,000–10,000 P/E cycles for twice the density; MLC is now largely displaced by TLC outside specialty industrial and aerospace lots, but it remains on offer from Macronix, Greenliant, and a handful of Taiwanese niche fabs [S3].
TLC (3 bits/cell, 8 levels) is the consumer-SSD default with ~1,000–3,000 P/E cycles and is what most industrial M.2/2.5" SATA modules use; QLC (4 bits/cell, 16 levels) drops endurance to ~500–1,000 P/E cycles and is reserved for read-intensive cold storage [S3].
Industrial-grade parts add 30K–50K P/E over commercial die, conformal coating, and a wider operating window; for servo-drive log storage on servo motor controllers, designers typically specify industrial-TLC with a pSLC (pseudo-SLC) mode for 5–10× endurance uplift [S2].
Second-tier, niche, and packaging-only suppliers
Macronix (Taiwan), Winbond (Taiwan), and Greenliant (US) make SPI NOR plus small-page SLC/MLC raw NAND in 1 Gb–8 Gb densities; product lines target industrial, automotive, and aerospace sockets where lot trace and 10–15-year supply continuity matter more than dollar-per-gigabyte [S2].
Fremont's Kioxia America (formerly Toshiba Memory) plus Marvell's NAND controllers (88NV1165, 88SS1321) and Phison (Taiwan) and Silicon Motion (SMI, Taiwan) form the controller + firmware layer over IDM raw NAND; Phison S12DC and SMI SM2258 are common in industrial 2.5" SATA modules.
Packagers—Kingston, ADATA, Transcend, Apacer, Innodisk, and Swissbit—buy IDM wafer/die, perform wafer-level test, and ship industrial-temperature SSD and eMMC/UFS modules with locked-BOM, conformal coating, and AEC-Q100 screening for in-cabin ADAS or flow meter edge loggers [S2].
On the upstream, NAND IDMs rely on ASML EUV/DUV immersion steppers, TEL/Clean Track coater-developers, and Applied Materials Producer XP / Centris Sym3 etch tools; wafer fab construction for a 100K wpm NAND fab runs USD 7–12 billion and 24–30 months from groundbreaking to first wafer-out.
Selection criteria: which vendor fits which use case
For a write-intensive industrial datalogger (≥ 10 GB/day write, 5-year retention), pick industrial-TLC in pSLC mode from Innodisk, Swissbit, or Apacer, sourced from Kioxia or Micron die; endurance and locked BOM beat raw IDM pricing [S2].
For consumer and client SSD with tight cost/GB, Samsung, SK hynix, Kioxia, and Micron ship finished retail SKUs; YMTC channels Zhitai/Adata at the cheapest TLC bracket but with limited enterprise firmware validation.
For a small-MCU boot image on a pressure sensor signal-conditioning PCB, specify 1–4 Gb SPI SLC from Winbond W25N or Macronix MX35LF; both expose ECC-aware SPI-NOR command sets and 100K P/E ratings.
For an industrial PLC or HMI with removable storage, use eMMC 5.1 (HS400) on Micron i400/Universal Flash Storage (UFS) 3.1 from Samsung/Kioxia—eMMC industrial-grade parts run −40 °C to +85 °C with 5K–10K P/E.
Avoid raw IDM consumer-only part numbers (e.g., Samsung 990 EVO) for any application that crosses 70 °C ambient or requires 5-year fixed BOM—consumer bins are screened differently and tend to EOL on 12–18 month notice [S2].

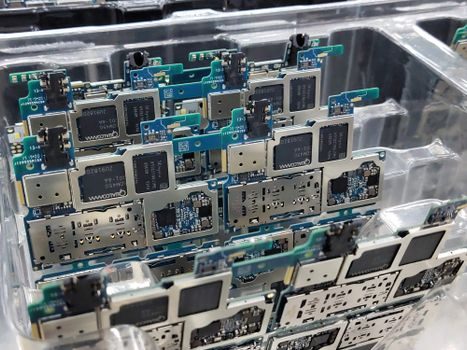

Architecture, error mechanisms, and reliability levers
A NAND package is an array of blocks (128 KB / 256 KB / 512 KB / 4 MB) composed of pages (256 B / 512 B / 2 KB / 4 KB / 16 KB), with every page backed by an OOB (Out-Of-Band) spare area used for ECC, bad-block markers, and wear-level metadata; the OOB is typically 1/32 of page size on small-block, 1/64 to 1/256 on big-block parts [S3].
Raw bit error rate (RBER) climbs from roughly 1e-9 (SLC fresh) to 1e-6–1e-4 as the part nears end-of-life across QLC; LDPC, BCH, and the latest soft-decision ECC controllers compensate, with 1y-nm and 1z-nm nodes requiring soft decoding to hit 100K read cycles post-endurance [S2].
Program/erase is asymmetric: page-program writes only 1→0, while block-erase restores all 0→1; out-of-band writes therefore require block-level garbage collection, which is the principal reason for FTL (flash translation layer) overhead in SSD controllers [S3].
Charge loss (data retention failure) accelerates at high temperature—Arrhenius models in the Open NAND Flash Interface (ONFI) spec show retention drops roughly 10× for every 10 °C rise above 30 °C—so a 1-year-spec part at 30 °C delivers ~12 days at 80 °C ambient.
Sourcing constraints and failure modes in 2026
Supply concentration is the structural risk: with five IDMs holding effectively 100% of merchant 3D NAND wafers, a single fab outage (fire, gas-line fault, EUV-tool shipment slip) moves spot pricing within weeks, as seen in the 2023–2024 contract-price volatility that dragged enterprise SSD capex planning [S2].
Counterfeit industrial NAND is a documented failure mode: brokers re-mark commercial TLC as industrial-grade, or remark Kioxia die as Samsung; insist on traceable lot code, direct OEM or authorized distributor (Avnet, Arrow, Rutronik, Digi-Key) purchase, and X-ray + decapsulation sampling on suspect reels.
For comparison against DRAM, see the 2026 HBM-driven supply squeeze map, since HBM allocation consumes trailing-edge DRAM wafer and indirectly tightens NAND-related substrate capacity at SK hynix and Micron fabs; the NAND upstream-downstream spec map lays out the same cell-type taxonomy in procurement-side detail.
Trackable 2026 signals: Kioxia K1 Iwate ramp volume, SK hynix M17 first wafer-out, YMTC phase 3 lithography choices under US Entity List exposure, and the transition from PCIe 4.0 to PCIe 5.0 NVMe in industrial-grade modules (Innodisk, Exascend, ATP) — each is a verifiable procurement-lead-time checkpoint.
