Rail-component foundries specifying static pressure molding machines for bogie side frames, brake shoes, axle boxes and coupler bodies should size the unit on four numbers: flask inner dimensions, specific squeezing pressure in the 0.5-1.5 MPa band, cycle time in seconds, and sand compaction ratio, then derate nameplate capacity by 15-20% for the pour frequency [S3].
Rail castings span small wear parts (brake shoes, 5-15 kg) through heavy safety-critical bogie frames (80-250 kg), so the typical flask band runs 800×600 mm up to 1500×1200 mm with specific pressure targeted at 0.6-1.0 MPa for grey iron and a 30-50% force upgrade for pearlitic ductile or steel grades [S3][S5]. Reference architectures for static pressure molding machine selection are now widely documented in published spec sheets from Chinese OEM lines.
Flask Size and Squeezing Force for Rail Casting Classes
For under-15 kg rail wear parts (brake shoes, small end caps), an 800×600×200/200 mm flask at 30 s/cycle and 8-12 kgf/cm² (≈0.8-1.2 MPa) specific pressure is the working point, with a 50-80 kN squeeze head adequate for 80-150 kg of compacted sand per mould at 1.5-1.7 g/cm³ bulk density [S3][S4].
For 50-200 kg bogie side frames, brake discs and axle-box covers, the working band is 1000×800 mm to 1200×1000 mm flasks with 150-300 kN squeezing force, while very large 2300×950×350/350 mm flasks cycle at 60 s/cycle and are typically reserved for combined railway-and-machinery castings on a single-station KSP-class line [S3][S4]. The squeezing platen must cover the flask cavity plus a 30-50 mm sand-edge margin to prevent edge cracking on rollover, and the squeezing stroke must clear 200-400 mm to seat and retract without dragging the mould [S3].
Specific Pressure, Mould Hardness and Rail-Casting Surface Targets
Mid-range static pressure machines deliver 0.6-1.0 MPa specific pressure and produce mould hardness in the 85-95 mould hardness units band on a Brinell-type green-hardness tester, the range most grey-iron and ductile-iron foundries target for acceptable as-cast surface finish on rail components [S3]. WeLL's published static-pressure line reports an average sand-mould hardness of 90-95 with a same-surface hardness spread under ±5 units and mismatch below 0.3 mm, which is consistent with the 0.85-1.0 MPa airflow-plus-multi-piston compaction regime used in current OEM packages [S5][S6].
Below ~0.5 MPa specific pressure, mould edges crumble on rollover and rail-casting dimensional repeatability drifts above ±2.0 mm; above ~1.5 MPa, sand grains fracture, ventilation drops and gas-defect rates climb on deep draws, which is the practical reason why rail foundries rarely push past 1.2 MPa on iron grades [S3]. For pearlitic ductile iron wheel hubs and the steel-casting work that occasionally shares a line, the squeeze force typically scales 30-50% over iron-foundry ratings on the same flask size, and the harder 95+ mould hardness band is the reason automatic molding line packages quote a dedicated force-upgrade kit rather than a software-only change [S3][S5].
Cycle Time, Throughput and Moulding-Line Derating

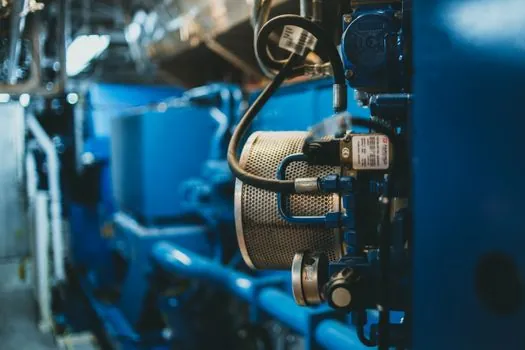

Cycle time on a static-pressure machine is dominated by sand fill, squeeze dwell, rollover and draw, typically 20-40 s/cycle for a 1000×800 mm flask, which puts a single static unit at 90-180 moulds/h, the working band for most rail jobbing iron foundries [S3]. Published single-station KSP lines run 30-36 s/cycle at 1000-1200 mm flask size, while double-station SPD pattern-exchange machines cut that to 20-24 s/cycle on the same flask because pattern change happens in parallel with moulding [S4].
The selection rule for rail-component plants is straightforward: pour frequency (moulds/h × pouring time) must stay inside the static unit's nameplate cycles/h with a 15-20% derating for ageing hydraulics and operator breaks, otherwise the line bottlenecks at the mould station [S3]. Plants specifying 200+ moulds/h from a single flask size should review a two-station or rotary-table configuration rather than chase a single oversized static press, because squeeze-platen stiffness does not scale linearly past ~400 kN [S3]. For comparison, a shell molding machine hits shorter cycles on smaller flasks but does not address green-sand throughput, so the two are complementary rather than substitutes in a rail foundry [S3].
Compaction Variants: Hydraulic-Only vs Airflow + Multi-Piston
Static-pressure lines are marketed under two distinct compaction variants, and buyers should read the principle carefully because a high-pressure single-platen squeeze without the airflow stage is not a true static pressure moulding machine [S7]. The hydraulic-only multi-piston variant suits simpler castings, while the airflow pre-compaction + hydraulic multi-piston variant is the configuration that delivers the 90-95 mould hardness band and sub-0.3 mm mismatch documented on WeLL and Dezhou Kaiye lines [S4][S5][S6].
Airflow machines list operating air pressure typically 0.5-0.55 MPa and air consumption on the order of a few normal cubic metres per mould, so utility sizing (compressor capacity, dryer, receiver volume) belongs in the specification step, not after delivery [S7]. For rail work, the airflow-plus-hydraulic variant is the de-facto choice because the deeper draws of bogie side frames and coupler bodies need uniform density across the parting surface, and the template counter-compaction option (blow + hydraulic + template squeeze) is the published upgrade path where casting accuracy is contractual [S5]. A related spec map for electronics housings applies the same compaction taxonomy to a different casting class, and the decision logic carries across.
Selection Criteria, Comparison Matrix and Vendor Reality
Across the documented 2026 OEM packages, three architecture choices compete for rail foundries, each defined by flask band, specific pressure, cycle time and hardness. The Kailong KSP80 single-station (800×600×200/200 mm, 30 s/cycle, 8-12 kgf/cm²) is the entry point for small rail wear parts; the BESTECH XGA-01 / XGA-02 horizontal-parting flaskless range (500×400 mm and 610×508 mm flasks, 6-10 kgf/cm², 40-180 moulds/h) covers thin-walled automotive-and-motive brackets; and the WeLL / Dezhou Kaiye airflow-plus-multi-piston lines (up to 2300×950×350/350 mm, 0.8-1.5 MPa, 90-95 hardness, ±5 unit spread) cover the heavy bogie-frame end [S2][S4][S5][S6].
The honest engineering read: the BESTECH XGA class is flaskless and therefore cannot deliver the 90+ mould hardness or the 0.3 mm mismatch that bogie frames require, so it is appropriate for motor and valve brackets on a rail line but not for safety-critical bogie castings [S2]. Static-pressure versus low-pressure die casting machine is a different process entirely (reusable metal dies versus expendable green-sand moulds), and conflating them on a rail BOM is a common sourcing error. For rail-component foundries running 30-300 moulds/h on iron grades, the airflow-plus-multi-piston single-station line at 0.8-1.0 MPa specific pressure, 1000-1500 mm flask band and 20-40 s/cycle is the spec envelope that consistently hits the published 90-95 hardness and sub-0.3 mm mismatch targets [S3][S5][S6]. The same selection logic, applied to the simpler wear-part end of a rail catalogue, is captured in the molding equipment reference.
Utility Footprint, Control Stack and Sourcing Signals
Published control stacks on Kailong single- and double-station lines are PLC-based (Siemens S7), with SEW or Siemens servos, Rexroth hydraulic valves and VFDs, Schneider low-voltage components and imported hydraulic seals; that component list is now the de-facto reference architecture for any rail-grade static pressure line build [S4]. WeLL's package goes further with engineer workstation, primary operator station, multiple field slave stations, industrial PC, CNC, PLC fieldbus, servo drives, proportional valves, VFDs and computer monitoring, which is the configuration a Tier-1 rail foundry should expect on a 2026 quotation [S5].
Two trackable signals to watch: (a) horizontal-parting flaskless machines continue to push down to 500×400 mm flask class at 40-180 moulds/h for non-safety rail brackets, where the air-and-sand economics of flaskless change the per-mould cost model; (b) the airflow-plus-multi-piston standard is consolidating around the 0.8-1.0 MPa specific pressure and 90-95 hardness window, with the template counter-compaction upgrade becoming a default rather than an option on heavy rail lines [S2][S4][S5].
