Industrial buyers waste the most time on storage rack quotes when they treat the datasheet as a price list instead of a structural-mechanical document; the four blocks that decide fit are U-height or frame-height envelope, static plus dynamic load per bay, baseplate anchor pattern, and a recognised compliance line such as DGUV 108-007 or TÜV approval [S4].
This guide walks through a single install in the order the fitter actually meets the rack: floor, anchor, upright, beam, shelf, then load sign-off, with concrete acceptance numbers at every step. It applies equally to a 25 U IT cabinet in a data centre and to a 6,096 mm selective pallet rack in a warehouse yard.
Pre-Install: Floor Condition, Footprint, and the U-Height Envelope
A standard 19 in data centre rack with at least 25 U of mounting space is the minimum HPE publishes for a storage system population, with server nodes numbered from the top of the frame downward [S3]; a 47U cabinet works out to roughly 82.4 in (209 cm) of internal height because 1U equals 1.752 in (4.45 cm) [S6]. For warehouse storage rack the equivalent filter is frame height in millimetres, commonly 2,438–6,096 mm for selective bays, paired with beam length to fix the footprint before any load is discussed [S4].
Floor condition is the silent failure mode. Concrete must be cured, level to within roughly 5 mm over the rack footprint, and rated for the point load the foot plate will deliver; a TOPREGAL LR2000 outer upright imposes a maximum 500 kg per foot plate and an inner upright 1,000 kg, so a 2-bay run concentrates 3,000 kg on four inner plates before the first beam is hung [S2]. Skipping the floor survey is the most common reason an otherwise correct spec fails the sign-off walk-down.
Anchor Pattern and Foot Plate Torque
Foot plates on light-duty European selective racks ship with M8x55 mm bolt anchors and nuts included in the kit, and the foot plate must be fixed to the floor through every hole the baseplate geometry provides, not just the corner slots [S2]. Hole diameter, embedment depth, and edge distance follow the anchor maker's published table, and the torque value is taken from that table, not from the rack OEM's general installation guide.
Where seismic, drive-in, or pallet-rack live-load uplift is expected, switch from wedge anchors to a torque-controlled or adhesive anchor system and recheck the embedment depth against the structural drawing. The compliance line on the data sheet, whether DGUV 108-007 (formerly BGR 234) for German light-duty racks, RMI/ANSI MH16.1 for North-American pallet rack, or the equivalent EN 15635 for European warehouse steel, is what an inspector will read first; a missing load-capacity label is an instant audit finding even when the anchor torque is correct [S2].

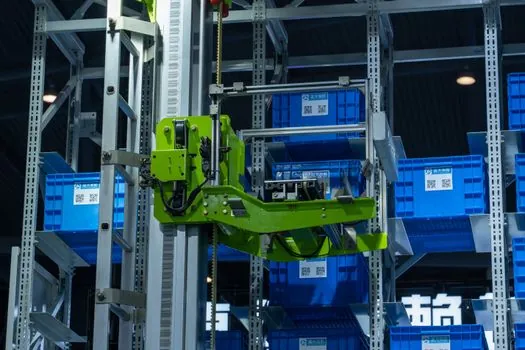

Upright Plumb, Beam Pitch, and the 5 cm Plug-In Increment
Uprights are cold-rolled blue profiles with cross and diagonal struts, offered in standard depths of 40, 50, 60, 80, 100 and 120 cm, and the assembly sequence is to stand both uprights, brace them temporarily, check plumb in two axes, then torque the baseplate [S2]. Plumb tolerance is the figure the inspector will measure, so set it before the first beam is hung; correcting plumb after beams are loaded distorts the beam-to-upright hook engagement.
Beams attach individually in 5 cm increments along the upright, with stock lengths of 110 cm and 220 cm, and the stepped-beam profile self-locates the shelf above it [S2]. A safety pin or clip must be fitted to every beam end after engagement, because the gravity lock alone is not the secondary retention the compliance regime expects; drive-in and push-back systems additionally require row spacers and end-rail protection as published in the accessory list. For a side-by-side reference on how load geometry changes the rack type, the quarry-focused Storage rack selection for quarrying: load geometry, steel grade, and rack type piece is a useful cross-check.
Shelf Choice, Load Distribution, and the 500/2,000 kg Cell
Three shelf types cover most light-duty needs: 25 mm chipboard, 25 mm steel, and 25 mm galvanised mesh with a 9.9 × 3.3 cm aperture, all self-fixing on the stepped beam [S2]. Mesh is the right pick where a spill or a small-parts drop-through is plausible, and chipboard is acceptable for hand-loaded ambient storage but fails fast in a humid or forklift-served bay.
The published cell numbers are 500 kg maximum compartment load per level and 2,000 kg maximum bay load on an LR2000 with at least two bays and at least two levels attached approximately evenly in height, and these numbers apply only when load is uniformly distributed [S2]. Concentrated point loads, asymmetric loading, or stacking a single beam level above an empty one are the three patterns that turn a 2,000 kg bay into a buckling event; for road-construction-yard applications where loads are heavy and often asymmetric, the Storage Rack Picks for Road Construction Yards: Spec Map companion article spells out which frame section to swap in.
Data Centre Variant: 63.5/76.2/121.9 cm Clearances and 1,000–1,500 kg Static Load
IT rack install diverges from warehouse rack on two lines: keep-out clearance and per-cabinet static load. HPE specifies 63.5 cm (25 in) front, 76.2 cm (30 in) rear, and 121.9 cm (48 in) rear-to-rack-or-row for adequate service airflow, and these are minimums, not targets [S5]. Vendor 42U cabinets are commonly rated at 1,000–1,500 kg maximum static load, with chassis weights of 22–36 kg for 1U servers and 40–55 kg for 2U density servers feeding into that cabinet number [S4].
U-height is the first filter, then rail-kit compatibility, then the published front/rear clearance; skipping the clearance line is the single most common install-day surprise in IT rack datasheets [S4]. Server nodes are numbered from the top of the rack downward, and a standard 19 in cabinet with at least 25 U is the documented minimum for a storage-system population [S3]. If the planned cabinet is taller than current equipment needs, that is acceptable and gives headroom for the next refresh cycle [S6].
Sign-Off: Load Label, Inspection Cycle, and When to Stop Using the Rack
A self-adhesive load-capacity label is shipped with the rack, must be affixed in a clearly visible location, and must state the bay and compartment ratings against the recognised compliance regime such as DGUV 108-007 plus a TÜV seal where applicable [S2]. A 5-year manufacturer guarantee is the typical commercial term on light-duty European selective rack, but the inspection cycle in operation is annual for hand-loaded bays and more frequent where forklift impact is plausible.
Replace, do not repair, when an upright shows visible buckling, a baseplate anchor has pulled a cone of concrete free, a beam hook is deformed, or a mesh shelf has lost its self-locating step from impact. Re-torque is a repair action, not a substitute for replacement once the section has yielded. The companion piece on heavier-yard applications, Storage Rack Picks for Road Construction Yards: Spec Map, covers the heavier frame section and shorter beam length that survive forklift abuse better than a stock LR2000. Two trackable signals to watch on the next refresh: harmonisation of EN 15635 inspection intervals across EU member states, and wider adoption of 42U cabinets rated above 1,500 kg static load as denser 2U servers push the chassis weight band toward 55 kg per node.
