Explosion-proof interlock switches carrying both ATEX 2014/34/EU and IECEx certification for Zone 1/21 and Zone 2/22 are the default specification for guard-door monitoring in chemical, pharmaceutical, and oil and gas plants, with gas groups rated up to T6 and retention forces reaching 10,000 N on handle-equipped variants [S3].
Directives 2014/34/EU (ATEX) and the IECEx scheme remain the two parallel routes into hazardous-area compliance, and current vendor catalogues from Schmersal, IDEM, Euchner, Fortress, and steute explicitly list both marks on the same device family, allowing a single part number to be specified in EU jurisdictions and the Middle East or Asia-Pacific without re-engineering [S1][S2][S6].
Zone mapping and certification scope for guard-door interlocks
Zone 1 (gas) and Zone 21 (dust) are the primary use sites for interlock switches on hinged, sliding, and removable machine guards, with Zone 2/22 products accepted where the explosive atmosphere is only present intermittently [S2][S7]. Temperature classes up to T6 (surface temperature limit 85 °C) are the typical ceiling on switch labels, because the switch body itself is a potential ignition source if a contact fails [S3]. IDEM's WM1-Ex line extends coverage to Zone 0 and Zone 20, the continuous-hazard envelope, but only for a limited number of devices within the catalogue [S2]. For the bulk of guard-door duty, the practical envelope is Zone 1/21 inside the cabinet boundary and Zone 2/22 in the surrounding operator-access area, and switch families such as Schmersal's Ex AZ 16 are explicitly approved for this gas-Ex-zones 1 and 21 combination [S7].
ATEX 2014/34/EU is the European equipment directive; IECEx is the IEC-based international scheme accepted in IECEx member countries (Australia, Singapore, parts of the Middle East, and increasingly the Gulf). Several vendors add INMETRO (Brazil) and KCS (Korea) on the same housing, which matters when a skid is being shipped globally [S1]. Sourcing a switch that lists both ATEX and IECEx on the data sheet removes the need for a separate IECEx-only unit when the same line is replicated in a non-EU IECEx member.
Mechanical retention, housing materials, and IP rating
Retention force is the spec most often undersized on a guard door. The machinesafety-shop EXPHL1S6XL461 lists 10,000 N holding force on a handle-equipped solenoid interlock, with IP67 sealing and ATEX/IECEx certification to T6, a level intended for heavy hinged doors where vibration or hydraulic pressure could otherwise defeat a smaller unit [S3]. Schmersal's catalogue addresses retention indirectly through its separate categories for safety switches with separate actuator, solenoid interlocks, and safety switches for hinged guards, each offered in Ex variants [S1].
Housing material is the second selection axis. Die-cast metal (typically powder-coated aluminium or zinc alloy) is the economical default and is adequate for indoor chemical skid duty. 316 stainless steel becomes mandatory for offshore, pharmaceutical washdown, and any site where chlorides or caustic cleaning agents are present, and IDEM's hazardous-area catalogue explicitly pairs 316 stainless housings with IP67 and IP69K ratings on its stainless families [S2]. IP69K is the high-pressure, high-temperature washdown rating (typically 80 °C water at 80–100 bar) and matters in food, beverage, and pharma clean-in-place (CIP) lines, not just on offshore platforms. Both the die-cast and 316-stainless families are routinely offered pre-wired with 3 m of cable as standard, with longer leads on request, which removes the need for a field-installed Ex-rated cable gland at the switch body for most retrofit work [S2].
Contact type, solenoid guard-locking, and safety control category
Interlock switches split into two functional groups: non-locking (the switch opens when the guard moves; the safety controller decides whether the machine is safe to access) and guard-locking (the switch physically restrains the guard closed until a solenoid is energised, allowing access only after a safe stop has been confirmed) [S1][S4]. The guard-locking family is what EN ISO 14119 calls a "safety interlock with guard locking", and is mandatory on machinery with a measurable run-down time such as robot cells, mixers, and presses, where opening the guard during a coast-down would expose the operator to a still-rotating hazard [S4].
Contact arrangement on the Ex side mirrors the standard industrial line. Safety-rated units are redundant (two independent contacts, so a single fault cannot disable the safety function), and TÜV-certified families from vendors including Fortress and Mechan are rated PLd or PLe in accordance with EN/ISO 13849-1, the harmonised functional-safety standard for safety-related parts of control systems [S4]. Ex-rated RFID-coded variants from Euchner and IDEM add tamper protection beyond what a basic mechanical tongue provides, satisfying the manipulation-defeat clauses of EN ISO 14119 for applications where bypassing the switch is a realistic operator work-around [S2][S6]. For Zone 1 doors that also need monitored guard locking, the Ex solenoid interlock category is the correct first filter, not the basic safety-switch-with-separate-actuator category, and the two are listed as distinct catalogue rows on the Schmersal Ex line [S1].
Comparison: typical ATEX interlock families by selection criterion
Four decision criteria dominate a Zone 1 guard-door spec: certification scope, retention force, housing material and ingress, and guard-locking vs non-locking. The Schmersal Ex line and the IDEM hazardous-area line both meet ATEX 2014/34/EU and IECEx on the same SKU, and Schmersal additionally lists INMETRO on its SR8-EXi safety relay range [S1][S2]. On retention, the EXPHL1S6XL461 at 10,000 N with a handle is at the high end for hinged and sliding guard duty; Schmersal's standard Ex AZ 16 is positioned for "tight angle of aperture" doors where the mechanical advantage is lower, suggesting a lower but adequate retention figure for that geometry [S3][S7]. On material and ingress, die-cast metal is the entry point and 316 stainless with IP69K is the pharma/offshore point; both are in-stock from IDEM at IP67 minimum, and both come pre-wired with 3 m cable as standard [S2]. On locking function, the specifier must choose between non-contact RFID, tongue-operated mechanical, and solenoid guard-locking before the zone rating is even discussed, because the catalogue filter on most vendor sites is "guard locking: yes/no" before "zone 1: yes/no" [S1][S6]. A useful spec-ordering rule is to fix the safety performance level (PLd or PLe under EN ISO 13849-1) and the locking philosophy first, then apply the zone envelope, then the housing material; the wrong order is the most common cause of a switch that has to be replaced during commissioning [S4].

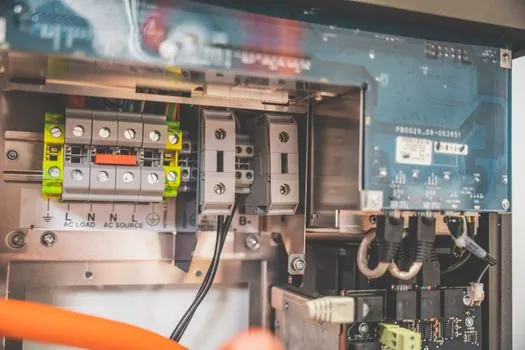

Wiring, integration, and field-installation constraints
Field wiring on a Zone 1 interlock runs back to a safety controller or a safety relay, not a standard PLC input, because the dual-channel contact arrangement and the cross-fault monitoring required for PLd/PLe are typically implemented in the controller, not the switch [S4]. For installations where a controller is not present, the SR8-EXi safety monitoring relay from Schmersal is an in-cabinet Ex-rated interface that takes the redundant contacts and produces a single fail-safe output to the machine control, and is part of the same ATEX/IECEx/INMETRO certification chain as the field switch [S1]. Cable entry on the switch body is normally through a certified Ex gland (Ex d flameproof or Ex e increased-safety depending on the housing construction), and the 3 m pre-wired option that several vendors offer is intended to remove the field gland from the equation entirely for indoor installations [S2].
For an Allen-Bradley / Rockwell architecture, the Bulletin 440 and 442 safety interlock switch technical documentation is the entry point for integrating third-party Ex switches into a GuardLogix or SmartGuard chain, although the Ex-rated device itself is typically sourced from the specialist vendors above, not from Rockwell [S5]. When the same cabinet is later expanded with new I/O, the wiring philosophy for safety devices differs from general-purpose sensors; a primer on PNP/NPN sink-vs-source wiring for remote I/O is worth reading alongside the switch data sheet to avoid mixing return-current and sourcing-current devices on the same safety terminal block.
Common failure modes and specification pitfalls
Underspecifying the zone is the most frequent error: specifying a Zone 2/22 switch for a guard door that sits inside the boundary of a Zone 1 enclosure voids the certification, because the gas envelope extends to the door surface, not the cabinet centre-line. The Schmersal Ex AZ 16 is approved for "gas Ex-zones 1 and 21", which is the correct reference wording when the cabinet interior is zoned 1 and the door interior face is treated as part of the same zoned volume [S7]. A second pitfall is choosing a non-locking switch on a machine with measurable run-down, which EN ISO 14119 specifically warns against: the guard must remain physically locked until the stop has been confirmed, and a non-locking switch does not satisfy that requirement regardless of its zone rating [S4].
A third pitfall is pairing the wrong cable gland with the housing, which is the most common way an otherwise correctly-certified switch is de-rated to non-compliant on a third-party audit. Using a standard industrial IP68 cable gland on a flameproof Ex d housing breaks the flamepath and invalidates the certification, regardless of how the switch body itself is rated. Vendors that pre-wire the switch with 3 m of Ex cable eliminate this failure mode for indoor skid builds; for field-terminated installations, the gland and the switch body must share the same Ex marking and the same IECEx certificate number where IECEx is the governing scheme [S2].
Applicable standards, directive references, and sourcing
ATEX equipment directive 2014/34/EU is the legal baseline for placing Ex-certified switchgear on the EU market, and IECEx is the parallel international scheme operated by the IEC; both are referenced explicitly on the data sheets of the major vendors [S1][S2][S6]. The functional-safety reference is EN/ISO 13849-1, which defines PLd and PLe performance levels for the safety-related control chain, and EN ISO 14119, which covers the selection, installation, and manipulation-defeat requirements for interlocking devices associated with guards [S4]. The Zone 0/1/2 and 20/21/22 classification itself is set out under the IEC 60079 series, and the T6 temperature class on the switch label is a direct application of those gas-group rules. Two trackable signals to watch through the rest of 2026: any further IECEx member-country moves to make IECEx mandatory for greenfield projects alongside ATEX, and any updates to the EN ISO 14119 manipulation-defeat clauses that would force more RFID-coded interlocks onto Zone 1 doors. For an expanded view of materials, drainage, and jointing rules that govern the same chemical and pharmaceutical plants, the PE pipe selection for industrial facilities reference is a useful cross-read.
The underlying component specifications are covered under safety interlock switch, industrial switch, and isolating switch.
