The shortest rule for chain conveyor selection in 2026: match the chain class to the bulk material's density, abrasiveness, moisture, and temperature, then size the drive against the peak — not the average — load.
Chain conveyors in current industrial catalogs cover fine-ore feed at 0.5 t/m³ up to clinker and foundry sand at 2.0+ t/m³, with common chain-pull ratings published in the 30–200 kN band and flight widths running 300–1500 mm [S1][S2]. For a primer on the underlying component families — standard roller chain, silent chain and cable drag chain geometries — see the chain conveyor and conveyor chain reference pages before locking a spec.
Chain Class, Pitch and Material: The First Three Gates
Chain class is selected from material behaviour: abrasive ores, slag and coke push the spec toward a heavy-duty roller chain in the 200–400 mm pitch band with case-hardened pin and bush, while hot clinker, sinter or cast scrap — feed temperatures commonly 300–600 °C on cement and steel-plant conveyors — require heat-resistant alloy pins and a metallurgy that survives without lubricant in the hot zone [S1].
Pitch controls both the allowable lump size and the sprocket tooth count for the same drive ratio: doubling the pitch from 100 mm to 200 mm roughly doubles the maximum lump a flighted chain can carry, but it also raises the minimum sprocket diameter and the bending stress on the sidebow return — a common failure point on ash and slag conveyors [S2]. Pin and bush material is the third gate: through-hardened pins, manganese-alloy flights and a sealed pin-to-bush joint define whether a chain survives wet, corrosive or chemical-laden service or fails in weeks.
Bulk Material and Capacity Math: Density, Angle of Repose, Lump Size
Capacity is set by the bulk density × cross-section × chain speed, but the real engineering gate is the material's flow behaviour: coal and limestone move freely at repose angles of 30–38°, while wet filter cake or sinter fines can sit at 50–60° and need deeper flights, an en-masse trough, or a positive-discharge drag chain geometry rather than an open flighted chain [S1][S2].
For a side-by-side read of competing bulk-handling options, the screw conveyor selection guide and the belt conveyor supplier map cover the parallel levers — but a screw loses efficiency above ~5° incline and a belt loses grip on wet, oily, or 200 °C+ feed, which is exactly where a chain conveyor becomes the only honest answer. Operating data from leading forged-chain catalogs in 2026 still quote a normal chain-line speed band of 0.1–0.6 m/s for abrasive and high-temperature duty [S1].

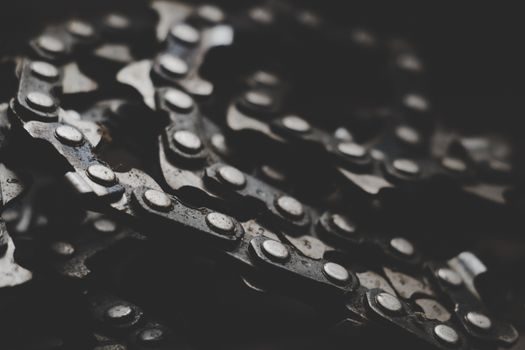

Drive, Sprocket and Chain-Pull Sizing
Chain pull is sized against starting load, not running load: a chain conveyor that runs at 60 kN steady often needs 90–120 kN peak rating to survive a cold start under a full, packed trough, and most engineering specs in 2026 still apply a 1.5–2.0× service factor on top of that for abrasive or high-temperature service [S1][S2].
Drive configuration follows the same logic: a head-end drive with a single large sprocket and a hydraulic or VFD-controlled motor is the common 2026 layout for 30–80 m lengths, while longer or reversing conveyors stack two drives and split the pull between head and tail to keep chain tension in the working range. Sprocket hardness must be matched to the chain — through-hardened or surface-hardened (HRC 45–55) for steel-mill and mining service — otherwise the chain wears the sprocket and the timing drifts, which shows up as a pulsating, chain-jumping failure long before the chain itself breaks [S1].
Layout, En-Masse vs Flighted, and Inclination Limits
Two distinct chain-conveyor geometries compete for the same bulk duty: the open flighted chain on rails (for abrasive, lumpy, hot material where a return trough would clog) and the en-masse / drag chain design, where the chain sits inside a closed U-trough and drags the material en masse, which gives a far better seal against dust and heat loss but penalises lump size [S1][S2].
Inclination limits are tighter than for a belt: a flighted chain can climb roughly 30–35° before the flights back-feed the material, while an en-masse drag is usually held to 15–25° because the chain-to-material friction in the trough is the only thing holding the load on the slope. For a heavier-duty comparison on material flow and abrasion behaviour, the oil & gas roller conveyor spec cut is a useful parallel read on how material, drive and zone ratings interact in a related bulk-handling context.

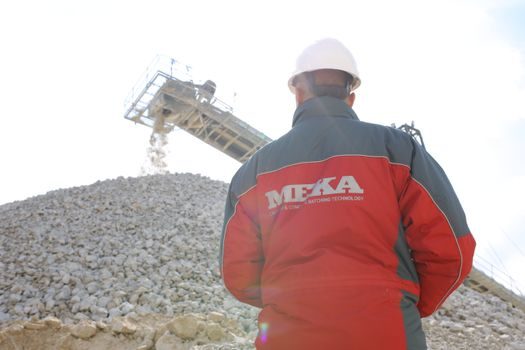

Failure Modes, Wear Parts and Sourcing Reality in 2026
The four dominant failure modes in field service are chain elongation beyond the sprocket tooth tip, pin and bush wear, flight cracking at the root, and sprocket tooth wear — and all four are accelerated by under-spec chain material, poor lubrication, or running abrasive material through a light-duty agricultural-class chain on a mining duty [S1][S2].
2026 sourcing reality: the China supply base still concentrates most heavy-duty conveyor chain output, with vendors such as SHINING and Jinqiu publishing full mining, cement and forged-chain catalogs covering 100B–300B class chain and the matching sprockets and auxiliary systems [S1][S2]. The procurement gate to lock before RFQ is chain class, pitch, working load, peak pull, temperature, and a clear statement of which parts are wear parts with a published replacement interval — a photoelectric sensor price & cost guide-style breakdown of "what drives cost" on a chain conveyor reduces to the same three levers: steel grade, pin/bush treatment, and forging vs cast flights. The honest final filter is environmental and duty, not frame size: if the bulk is abrasive, hot, oily, or heavy, the chain conveyor is the correct architecture; if the bulk is dry, light, and free-flowing, a belt or screw still wins on capex and on noise.
