Steel-mill process control is built around four measured variables — pressure, level, flow, and temperature — and each maps to a specific sensor family with a working range defined by diaphragm, capsule, bellows, Bourdon, or piezoelectric element [S6][S7].
Copper-clad-steel conductors remain a common conductor choice for instrumentation and control cable in industrial plants, typically jacketed in PVC, neoprene, CPE, polyolefin, or silicone rubber for multiconductor runs [S2]. Field enclosures and outdoor PLCs are routinely specified in stainless steel regardless of intrinsic IP rating, to keep dust and wind-driven rain off the electronics [S4].
Pressure Sensors: Range, Accuracy, and Element Type
Stainless-steel diaphragm pressure sensors cover 20–10,000 psig (140 kPa–70 MPa) from −50 °C to +120 °C with 1.0% FSD accuracy, while Bourdon-tube and spiral-Bourdon units span 0.5–10,000 psig (3.5 kPa–70 MPa) and 0.01–4,000 psig (70 Pa–25 MPa) respectively at 0.1% FSD up to 90 °C [S7].
Piezoelectric stainless-steel sensors push the high end to 20–10,000 psig (140 kPa–70 MPa) from −270 °C to +200 °C at 1.0% FSD, making them the pick for cryogenic and high-temperature service where strain-gauge diaphragms drift or saturate [S7]. Bellows and capsule types sit at the low end (0.1–800 inH2O and 0.5–50 psi) for draft and near-vacuum measurement on furnace gas lines. Choosing the wrong element for the pressure band is the single most common cause of sensor failure I have seen on greenfield mills — verify the full-scale range, not the nominal operating point.
Flow, Level, and Temperature: Where Each Technology Wins
Flow measurement in a steel plant spans gas-recirculation fans, cooling-water loops, and oxygen / natural-gas burners; differential-pressure primaries per ISO 5167 still dominate, with vortex and Coriolis meters growing on natural-gas and liquid-steel desulfurization lines. [S3]
Level measurement in the caster and hot-metal torpedo runs on guided-wave radar and nucleonic (gamma) switches; the latter is specified wherever refractory-lined vessels rule out contact probes. Temperature measurement still leans on Type B / R / S thermocouples in the reheat furnace (up to ~1700 °C) and on Pt100 RTDs in heat-exchanger and roll-cooling headers, with 4-wire Class A IEC 60751 elements for tight control loops on the tandem cold mill. For a deeper dive on rare-earth separation sensor stacks — many of which use the same four-variable backbone — see Rare Earth Process Control: Sensor Stack, Separation Logic, and Spec Boundaries.
Control Cable Specs: Copper-Clad Steel, Jacket, and Insulation
Copper-clad-steel (CCS) instrumentation cable preserves DC resistance close to pure copper while adding tensile strength for long tray pulls and vertical shaft drops, and is offered as multiconductor / power cable with PVC, neoprene, silicone-rubber, CPE, or polyolefin jackets [S2].
Insulation materials in the product class include ethylene propylene rubber and XLPE for higher temperature rise on drive-associated control runs, with shield / drain constructions added on 4–20 mA and HART loops to keep common-mode noise out of the DCS analog inputs. For signal-level reference on how the same control-cable families are categorized, the control cable encyclopedia page lists the conductor, insulation, and shield conventions that procurement should match to the panel wiring schedule. Always cross-check the cable spec against the ISA-RP7.1 pneumatic-circuit and signal-circuit test values called out in municipal water / process specs [S1].
Safety PLC and SIL: IEC 61508 SIL3 on Hazardous Gas Lines
Top-blower and OG (blast-furnace gas) equipment handling explosive gas requires a safety instrumentation system conformant to IEC 61508 SIL 3, capable of forcing the process to a safe state on detected fault [S3].
That safety PLC layer must be electrically separated from the basic-process-control DCS yet share the same field I/O where possible, and the emergency shut-off path is hardwired through a relay board so a DCS failure cannot block the trip [S3]. Programmable logic controller hardware in the broader panel build typically follows the section-13300 spec template: stainless-steel enclosures, dust filters on louvered vents, wind-driven-rain protection, and rigid panel construction rated for the plant's seismic zone [S1][S4]. For guidance on how the control panel itself is wired and tested, the control valve and access control encyclopedia entries cover the actuator / positioner and panel-door interlock conventions that show up in the same deliverable.

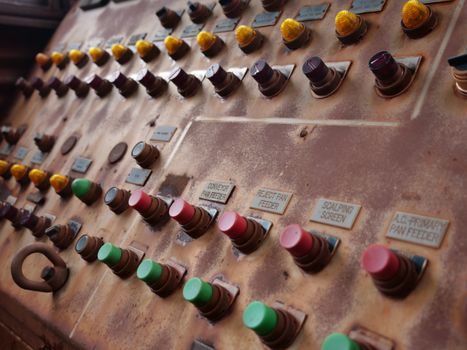

Standards, Symbology, and Documentation
ISA-S5.1 governs instrument symbols and identification on P&IDs, ISA-RP7.1 covers pneumatic control-circuit pressure testing, and ISA-RP12.6 sets installation rules for intrinsically safe systems in hazardous (classified) locations [S1].
Material specs cascade from ASTM A 283 (low/intermediate tensile-strength carbon-steel plates) and ASTM A 312 (stainless-steel piping) for instrument-air and impulse tubing, while ISA-RP60.6 standardizes nameplates, labels, and tags on control-center hardware [S1]. General industrial instrumentation and process-control reference texts confirm that pressure, level, flow, and temperature are the four canonical process variables driving every control loop in steel, petrochemical, and paper plants alike [S6]. Sensor range / accuracy tables repeat across multiple sources and stay within the bands quoted above, which is a useful cross-check during bid evaluation [S7][S8].
Where the Stack is Heading: Data-Driven Control and SPC Layer
Nippon Steel's R&D direction explicitly calls for data-driven design, sparse modeling, and compressed sensing as the next layer of accuracy improvement on top of the physical sensors, in parallel with the classical causal-model approach [S5].
At the quality layer, statistical-process-control platforms now integrate LIMS, Level-2 automation, and MES into a single dashboard across the melt-to-mill lifecycle, so a tensile or chemistry out-of-control condition on the caster propagates immediately into the cold-mill set-up [S9]. The practical consequence: specify sensors and control loops with enough headroom and metadata that an SPC layer can attribute variance to the right element rather than blaming the instrument. For an adjacent spec-driven view on process control instrumentation in non-steel heavy industry, the AGV types and applications working map covers how mobile assets are tied into similar Level-2 architectures. Verify IEC 61508 SIL3 certification evidence on the safety PLC nameplate and confirm copper-clad-steel conductor DC resistance against the project cable schedule before releasing the PO.
