Industrial contactors and relays share the same electromagnetic operating principle, but the switching duty each is designed for is fundamentally different, and specifying the wrong device is one of the most common panel-builder errors [S1][S2].
The split runs along load class, not brand: contactors govern power circuits from 10 A up to several thousand amps and 200-1000 V, while relays govern control, signal, and interposing circuits typically rated up to about 10 A at 250 V AC (general-purpose) or up to roughly 30 A for higher-capacity industrial relay families [S2][S5].
Switching Duty: What Each Device Is Actually Rated to Break
Contactor switching duty centres on repeated make-and-break of inductive power loads, and the contact set is sized with arc chutes, magnetic blowouts, and wider contact gaps to extinguish the arc energy that an AC motor or transformer dumps into the opening contacts [S1][S5]. A residential or light-commercial compressor contactor, for example, has to swallow inrush current that runs 6-8x the steady-state running current, which is why general-purpose relays fail rapidly when retrofitted into that role [S4].
Relay switching duty, by contrast, is control-circuit switching: small contact sets driven by a low-power coil, often with response times fast enough for logic, interposing, and PLC-output isolation rather than for dissipating motor-start arc energy [S1][S2]. Solid-state relays move that duty into the electronic domain with no moving contacts, but they still sit on the signal/low-power side of the line and inherit different thermal limits [S1].
Load Class Comparison: Contactor vs Relay Across 5 Decision Criteria
The cleanest way to separate the two is to line them up against the criteria that actually drive a panel BOM: [S4]
1) Continuous current rating: relay up to ~10 A (general purpose) or up to ~30 A (industrial plug-in); contactor 10 A to thousands of amps [S2][S5]. 2) Typical voltage class: relay up to 250 V AC; contactor 200-1000 V AC [S5]. 3) Load type: relay handles resistive or lightly inductive signal loads; contactor is built for motors, compressors, capacitor banks, heating elements, and lighting contactor panels [S1][S4]. 4) Arc management: relays have minimal or no arc suppression; contactors include arc chutes and insulation barriers for repeated interruption of inductive energy [S1][S5]. 5) Physical size and cost: relays are compact, often PCB- or DIN-rail mount, low unit cost; contactors are larger, open-frame, and priced for heavy-duty mechanical life [S5][S6].

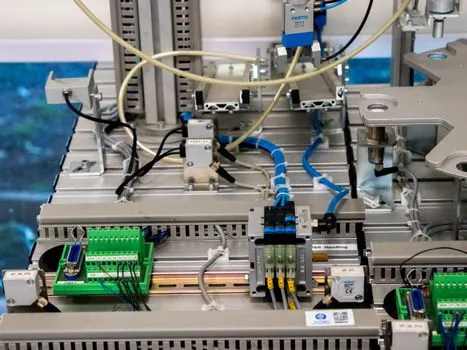

Application Mapping: Where Each Device Belongs
Contactors are specified wherever the load is a motor, compressor, chiller staging contactor, rooftop-unit compressor, electric heat strip, pump, or capacitor bank, and the wiring runs through motor-starter combinations with overload relays and short-circuit protection upstream [S1][S4]. Lighting contactors and HVAC contactors sit on the same family tree because the inrush of large lamp banks or compressor windings requires the same arc-resistant contact geometry.
Relays are specified for PLC output isolation, BAS 24 VAC signal switching, thermostat-to-equipment bridging, damper actuator switching, fan-coil unit control (small fractional-HP fan motors), and signalling/alarm circuits where the contact is asked to switch milliamps rather than motor inrush [S2][S4]. A 20 A SPDT relay with a 24 VAC coil, for example, can draw only 83 mA from a thermostat output while switching a 1 HP 120 VAC motor load, which is the textbook bridging case [S4]. For barcode and vision-system trigger signals and inductive-proximity output switching, relays remain the standard interposing element, a duty profile covered in detail in this 1D vs 2D imager breakdown and this inductive sensor sensing distance guide.
Coil Voltage, Contact Forms, and Mechanical Life
Coil voltage follows the same split: relays are commonly available in 5 V, 12 V, 24 V, and similar low-voltage classes suitable for direct PLC or logic drive, while contactors typically use 110 V, 220 V, or 24 V coils sized for panel-bus wiring and motor-starter wiring [S5]. Contact configuration overlaps (NO, NC, changeover are available on both), but the contact rating, not the form, is what dictates the device class [S2].
Mechanical life and electrical life diverge sharply: a general-purpose relay is rated for high cycle counts at low load, which suits frequent control pulses, while a contactor is rated for fewer cycles per hour but at far higher current, which suits a motor that starts a handful of times per shift rather than thousands [S3][S5]. Both families can be specified with auxiliary contacts for interlocking and status feedback, which is why motor-starter assemblies pair a contactor with an overload relay and a small signalling relay in the same form factor [S1].

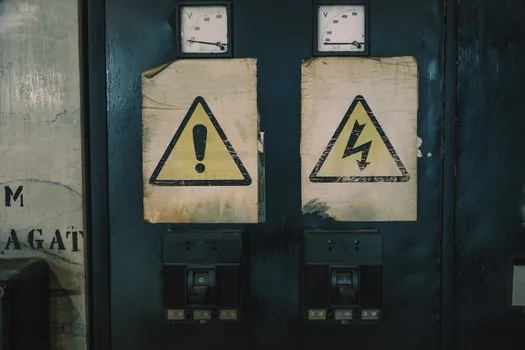

Failure Modes and Limits When Devices Are Misapplied
The most common failure is contact welding: a relay asked to break motor inrush welds its contacts shut, then the upstream fuse or breaker opens on the next attempt, and the motor is now uncontrollable [S4][S6]. The reverse misapplication, fitting a contactor to a 24 VAC 50 mA BAS output, usually does not damage the contactor but burns panel space and budget, and slows response versus a relay whose contacts are dimensioned for that current class [S1][S2].
Solid-state relays add a third failure mode: leakage current when off, which can hold small relays or indicator lamps in a partially-energised state, and thermal runaway when the heatsink is undersized for the load [S1]. Across all variants, the rule of thumb from multiple manufacturers is the same: size the device to the load and the inrush, not to the steady-state current alone [S4][S5].
Sourcing, Standards, and Selection Signals for Late 2026
Selection signals heading into Q4 2026 are unchanged in principle but tighter in execution: panel builders are standardising on contactor families with electronic coils (wider control-voltage tolerance, integrated surge suppression) and on relay families with push-in or spring terminations to cut wiring labour, while keeping the relay/contactor boundary drawn at the same current and inrush line as before [S1][S3]. For brownfield motor-control upgrades, the same relay-vs-contactor logic still dictates whether an existing relay socket can be reused or whether the cubicle needs a full contactor retrofit, a budget question treated in Brownfield Line Modernization: Budget Bands, Cost Ratios, and Bottleneck Sourcing.
Track these signals over the next two quarters: published contactor electrical-life curves at AC-3 and AC-4 duty (the categories IEC uses to differentiate motor starting vs heavy inching), relay UL 508 recognition or IEC 61810-1 compliance markings on datasheets, and distributor stock depth on the 20-40 A relay range that bridges the small-motor and large-signal gap, since that band is where the most cross-specification errors still occur [S1][S4][S5].
